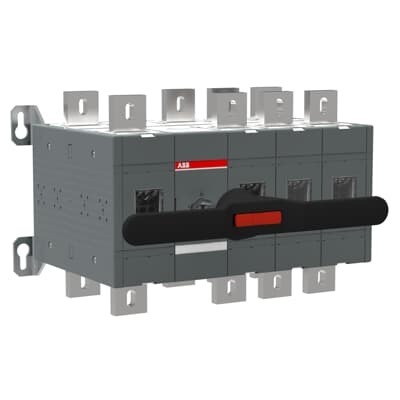

ABB 1SCA103313R1001 Change-Over Switch - 4P, 1250A, CE Declaration
Part Number: 1SCA103313R1001
Quick Summary
ABB 1SCA103313R1001 Change-Over Switch is designed to provide reliable source switching for industrial electrical systems in critical load applications. In harsh production environments, downtime during transfers can cost thousands in lost output and safety risk. This 4-pole, 1250 A manual change-over unit features a shielded black handle with a lockable 0-position, plus door interlock in the I and II positions to prevent accidental operation. It also supports padlocking, enhancing operator safety during maintenance. The device carries CE conformity, RoHS and Reach declarations, and Front IP20 protection, reflecting ABB’s commitment to compliance and safety. For panel builders and integrators, the robust base mounting and screw-terminal wiring streamline installation, reduce wiring errors, and improve long-term serviceability while meeting stringent standards.
Product Information
Extended Description
1SCA103313R1001 ABB: 1250A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
42.52 kg | 93.74 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
339 mm | 13.35 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
338 mm | 13.31 in
Package Level 1 Gross Weight
44.52 kg | 98.15 lb
Package Level 1 EAN
6417019378268
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 29 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1250 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641571
The 4P 1250 A rating delivers high-current capacity for demanding applications, enabling a single switch to safely transfer large loads without voltage collapse. Business impact: reduced downtime and safer power transitions in critical processes. Application: data centers, water treatment, and large motor drives where uninterrupted operation matters. The padlockable 0-position and door interlock prevent unauthorized operation during maintenance, minimizing safety incidents and warranty concerns. Application: factory floors and switchgear assemblies where personnel safety is essential. The included handle and shaft support quick manual operation with a solid grip, reducing operator fatigue during frequent transfers. Business impact: faster change-overs and improved cycle times. Application: control panels with frequent source changes and interlocked safety procedures. Base mounting and screw-terminal wiring simplify installation, improving reliability and reducing assembly time. Application: panel builders seeking scalable, serviceable designs. Electrical performance specs: rated insulation voltage 1000 V, impulse withstand 12 kV, and short-time withstand current 50 kA for 1 s, delivering robust protection in fault events. This aligns with IEC 60947-1 and UL/CSA expectations for reliability and compliance. Environmental and compliance notes: RoHS and Reach declarations, Front IP20 protection, and 3rd-party documentation support traceability and regulatory alignment. These factors translate into lower lifecycle costs through easier maintenance planning, spare-part compatibility, and clearer installation guidelines.
