ABB 1SCA103500R1001 Terminal Shroud - RoHS compliant
Part Number: 1SCA103500R1001
Quick Summary
The ABB 1SCA103500R1001 terminal shroud provides protective housing for terminal connections in low-voltage switchgear assemblies. This accessory addresses common panel safety and maintenance challenges by minimizing exposed conductors and accidental contact during wiring and servicing. It is RoHS compliant under EU Directive 2011/65/EU with Amendment 2015/863, is accompanied by a REACH declaration and CMRT conflict minerals reporting to support global compliance. Engineered for seamless ABB OS/OS1 platform integration with snap-on mounting, the shroud delivers reliable fit, quick installation, and reduced downtime in capital projects while supporting ongoing regulatory alignment.
Product Information
Extended Description

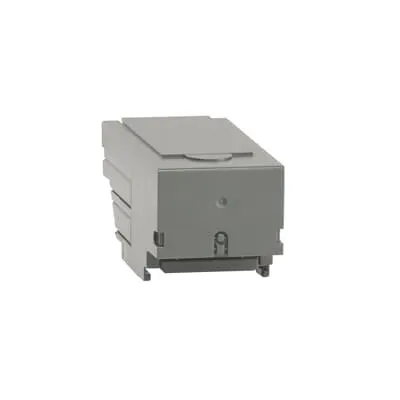

1SCA103500R1001 ABB: OSS250G1SH/1 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311019M0002
Mechanical Drawings
OSS250G1SH/1.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
52 mm
Product Net Height
51.8 mm
Product Net Depth / Length
108 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
53 mm
Package Level 1 Depth / Length
110 mm
Package Level 1 Height
35 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019379319
Mounting Type
Snap-on mounting
Special Functions
SH/1
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: Snap-on mounting enables fast, tool-free installation, reducing commissioning time and potential damage from misaligned components. Benefit: Accelerates panel assembly, lowers labor costs, and minimizes risk of incorrect wiring. Application: Ideal for ABB OS/OS1 switchgear in OEM and retrofit projects where space is tight and reproducible fit matters. Long-tail keyword integration: snap-on mounting terminal cover, OS/OS1 compatibility, installation efficiency. Feature: SH/1 special function enhances compatibility with ABB accessory families, ensuring reliable mounting and secure retention. Benefit: Improves longitudinal stability under vibration and heat cycling, reducing maintenance calls. Application: Useful in control panels with dense terminal blocks in process and energy sectors. Long-tail keyword: SH/1 terminal accessory, ABB spare parts for low-voltage switch technology. Feature: Precise footprint 52 mm width, 51.8 mm height, 108 mm depth, weight 0.1 kg. Benefit: Predictable clearance and weight budgeting for enclosure design, enabling accurate CAD planning and shipping calculations. Application: For planned installations where panel real estate is constrained and weight limits matter. Long-tail keyword: 52 mm width shroud, 108 mm depth accessory. Feature: Material compliance and documentation (CMRT, REACH, RoHS). Benefit: Regulatory assurance across global supply chains, simplifies supplier audits, and supports customer sustainability programs. Application: Required in multi-region builds and automotive/industrial automation projects. Long-tail keywords: CMRT reporting, RoHS status EU directive, REACH declaration. Feature: CAD and datasheet support. Benefit: Streamlined engineering workflows with downloadable data for OS/OS1 compatibility and quick reference during design reviews. Application: CAD automation and BOM integration using OSS250G1SH/1.stp drawings. Long-tail keywords: mechanical drawings, datasheet access, OS and OSM data sheets.
Get a Quick Quote for a ABB 1SCA103500R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103500R1001?
Enquire Now
FAQs
To install, align the shroud with the terminal block width of 52 mm and depth of 108 mm, then press it onto the mounting surface until the snap-on mechanism (SH/1) engages securely. The design supports quick, tool-free installation, minimizing panel downtime and ensuring consistent alignment across multiple channels.
Yes. The 1SCA103500R1001 is designed for ABB OS/OS1 family accessories and references OS and OSM datasheets. For CAD integration, use the OSS250G1SH/1.stp mechanical drawing and the OS1GB catalog context to verify fit and ensure proper clearance in your enclosure.
The shroud carries CMRT for conflict minerals reporting, a REACH declaration, and RoHS compliance under EU directives. These certifications support regulatory governance, reduce supply chain risk, and help you meet sustainability and corporate social responsibility targets in global projects.
The part features a net width of 52 mm, net height of 51.8 mm, and net depth of 108 mm, with a weight of 0.1 kg. Packaging is 1 piece per box. Having precise dimensions aids enclosure space planning, thermal considerations, and cable routing in control panels.
Origin is Finland (FI); minimum order quantity is 1 piece; Customs tariff is 85389099; WEEE category indicates not in scope. It is classified as ETIM EC002498 (Accessories/spare parts for low-voltage switch technology) and eClass V11.1 27371392, ensuring consistent category placement across systems.
