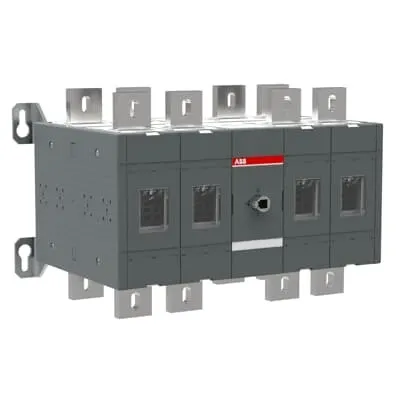

ABB 1SCA103631R1001 OT1000E22C Change-Over Switch IP20
Part Number: 1SCA103631R1001
Quick Summary
OT1000E22C Change-over Switch enables high-current switching for 4-pole motor feeders in industrial switchgear. Engineers often face downtime and safety risks when switching heavy loads without robust 4P solutions. It carries CE conformity, RoHS compliance, and a front IP20 protection rating to meet global safety and sustainability requirements. Base mounting simplifies integration in compact switchgear enclosures, while ABB EcoSolutions lifecycle tools support easier maintenance planning and end-of-life handling. Designed for use in control panels and distribution boards, it aligns with 1000 A current ratings and provides reliable transfer during load changes, helping facilities reduce unplanned outages and extend equipment life. This makes it a competitive choice for critical power applications.
Product Information
Extended Description
1SCA103631R1001 ABB: 1000A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
41.67 kg | 91.87 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
339 mm | 13.35 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
338 mm | 13.31 in
Package Level 1 Gross Weight
43.67 kg | 96.28 lb
Package Level 1 EAN
6417019378015
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High-current 4-pole design delivers 1000 A rated current per pole, enabling direct connection to heavy motor feeders. Business Impact: Reduces the need for multiple switching devices and simplifies protection schemes, improving installation efficiency and reducing wiring complexity. Application: Ideal for large switchgear, distribution panels, and industrial motor feeders. Feature: Front operation with base mounting simplifies installation and service access in tight control cabinets. Business Impact: Accelerates commissioning, enables safer maintenance, and minimizes panel footprint. Application: Suitable for front-operated control panels and compact switchgear enclosures. Feature: Rated insulation voltage of 1000 V and impulse withstand voltage of 12 kV boosts safety margins in switching transients. Business Impact: Enhances reliability in high-energy applications and supports compliance with international standards. Application: Heavy-load panels exposed to switching surges. Feature: Screw terminals with tightening torque of 50 to 75 N·m provide secure, durable connections. Business Impact: Reduces loosening risk over time and lowers maintenance calls. Application: Long-term installation in harsh industrial environments. Feature: Front IP20 protection and RoHS/CE declarations support regulatory compliance and safe handling. Business Impact: Facilitates audits, lowers risk of non-compliance penalties, and streamlines procurement. Application: Global deployment across plants requiring documented conformity. Feature: Fourth pole position on the right with switched - simultaneous function enables coordinated transfer. Business Impact: Ensures synchronized phase changes, minimizing cross-connection faults and downtime. Application: Complex multi-pole transfer in critical power paths. Feature: Weight and dimensions (480 mm W, 306 mm H, 309 mm D) enable planning of mounting space in existing layouts. Business Impact: Improves enclosure planning and reduces rework. Application: Retrofit projects and new installations in space-constrained panels.
