ABB 1SCA103713R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA103713R1001
Quick Summary
ABB 1SCA103713R1001 Switch-Disconnectors provide reliable isolation for high‑current electrical circuits in control panels. Engineers face downtime and safety risks when selecting robust, compliant devices for motor control and feeder protection, and this model is designed to address those challenges. It adheres to IEC 60947-3 and CE conformity, with certifications such as DNV GL and A2L IEC, while featuring a rugged front-operated mechanism and a black IP65 handle option for demanding environments. Beyond electrical ratings, this solution offers installation versatility, lifecycle efficiency, and ongoing support that translate to lower total cost of ownership and faster, safer maintenance cycles.
Product Information
Extended Description

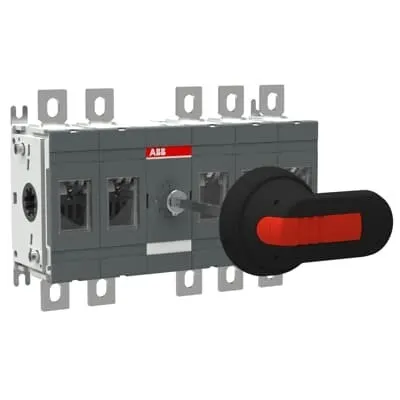

1SCA103713R1001 ABB: 5-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
e30868f8-883c-4a10-9c85-b5b3c99ee5cd Finland (FI)
Simplified SCIP
5bda9d86-60c6-4a68-b3ec-03091b926931 Germany (DE) | 2f654961-1250-4f46-8035-eefb51968f63 Bulgaria (BG) | d7a3b7f4-82e4-4d26-9e7f-528f8219e983 Belgium (BE) | bea076e2-a0f5-493d-ad71-0aa338ce847f Italy (IT) | 3b5e6f10-a5bf-4c47-a614-513e1ac39d78 Poland (PL) | f2a0278f-dbf1-46b0-8c6b-f1121353f5c8 Sweden (SE) | 01d9b05c-0d95-4f1d-8782-62391163f2fb Poland (PL) | b9e2ca7f-f63e-4ecc-85b1-f8da3f591c05 Portugal (PT) | b884f740-09b5-45dd-b271-924bbdc83cd0 Germany (DE) | 206f3d27-8920-424b-ae76-f3560327d0b2 Greece (GR) | 10e91ba2-aab9-4afa-bef4-80bca63ada4e Estonia (EE) | fc5b16e5-7287-4df8-9bfe-6c5a7bbf709a France (FR) | f762af78-3e78-476b-80db-4f422f6bc088 Hungary (HU) | b0362aab-ce88-4581-83f3-8bfe4436e189 Belgium (BE) | bdb7c8fd-a3a6-4d5f-923d-b61a259e6fff Spain (ES) | 67121b3f-8257-437b-bb23-7c7347091f27 Croatia (HR) | e4abe067-4048-4add-99eb-f65832ba24be Czech Republic (CZ) | c7a17c9f-75b6-40c5-aad1-63adee24a2c8 Denmark (DK) | 59b13d8a-8e28-4728-880d-5f6968eb1f0e Germany (DE) | f151eb7e-6836-4e5b-b973-6ad10493b61b France (FR) | d99b4f31-8ee8-42a2-8e67-7e3e37fe34a5 Norway (NO) | 076b13ea-62f6-4f93-ae26-b632a2e4ea0f Poland (PL) | 39b45981-24f7-4443-8e6b-09bc9021a962 Netherlands (NL) | 923bbf94-ebbe-4f37-bc1f-ddb1644938b8 Germany (DE) | 63ccac51-edf4-4b6e-8b41-afc9de340972 Hungary (HU) | fd90d971-1372-4ad6-bf09-4f4b922c6336 Germany (DE) | 963b2052-ee86-4348-bb6d-6844afffc2b1 Sweden (SE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200E23.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
220.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.3 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
2.5 kg | 5.5 lb
Package Level 1 EAN
6417019380797
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
5P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-21B (Ie)
(690 V) 200 A
Rated Operational Current DC-21B (Ie)
(800 V) 200 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 23 (Between the Poles
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
1SCC301162D2702
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
