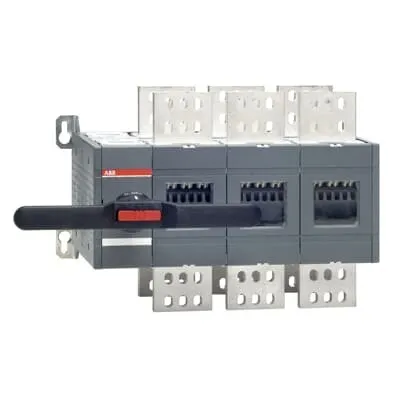

ABB 1SCA103908R1001 Change-over Switch - 2000 A IP20
Part Number: 1SCA103908R1001
Quick Summary
1SCA103908R1001 is a high-capacity change-over switch designed for demanding industrial power protection. Engineers often struggle with safe interlocks, padlockable handling, and reliable operation under load, especially during maintenance windows. This ABB model delivers CE conformity, RoHS compliance, and a DNV certificate alongside front IP20 protection, supporting safe integration into machinery enclosures. With base mounting, screw-terminal wiring, and a lockable 0-position handle, it offers straightforward installation and scalable serviceability that reduce downtime and total cost of ownership for critical power circuits.
Product Information
Extended Description
1SCA103908R1001 ABB: 2000A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT2000-2500_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
538 mm | 21.18 in
Product Net Height
377 mm | 14.84 in
Product Net Depth / Length
335 mm | 13.19 in
Product Net Weight
54.285 kg | 119.68 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
394 mm | 15.51 in
Package Level 1 Depth / Length
584 mm | 22.99 in
Package Level 1 Height
385 mm | 15.16 in
Package Level 1 Gross Weight
73 kg | 160.94 lb
Package Level 1 EAN
6417019382814
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 55 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
100 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT2000-2500_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3650321
With a 2000 A conventional free-air thermal current and three-pole configuration, the 1SCA103908R1001 handles high-demand feeders without sacrificing safety. The business impact is clear: predictable switching performance reduces arc exposure, minimizes nuisance trips, and extends component life in motors and feeders. In real-world deployments such as heavy equipment lines and data-center distributions, this reliability translates directly into less downtime and lower maintenance costs.Designed for front-operated control, the switch provides clear, intuitive operation and consistent mechanical feel. The standard top-in, bottom-out labeling simplifies wiring during panel assembly and reduces the risk of misconnection in busy builds.Base mounting and screw-terminal connections enable straightforward installation and robust long-term wiring. The 100 mm terminal width and specified tightening torque help ensure compliant torque during assembly, while the open transition type supports maintainable field servicing without disassembly of the enclosure.Safety features include a padlockable in the 0-position and door interlock in the I- and II- positions, supporting lockout-tagout practices. The black pistol-type handle adds ergonomic control, while the integrated shaft ensures reliable actuation even after years of use in industrial environments.Compliance documentation is reinforced by CE, RoHS, CMRT, and Reach declarations, plus a DNV certificate for critical applications. This documentation accelerates procurement approvals and simplifies compliance audits, while ABB EcoSolutions information guides end-of-life disassembly and environmental stewardship.From a logistics perspective, the device's 54.285 kg net weight and 73 kg packaged weight fit standard shipping workflows, with a package footprint compatible with rack and pallet handling. The combination of performance, installability, and compliance makes this model a practical choice for scale-up projects in switchgear and power distribution.
Get a Quick Quote for a ABB 1SCA103908R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103908R1001?
Enquire Now
FAQs
The unit supports base mounting with screw-terminal connections, 3P configuration, and a top-in, bottom-out line terminal arrangement. This combination enables straightforward panel installation, reduces wiring errors during assembly, and simplifies future maintenance while preserving a compact footprint in switchgear enclosures.
Key ratings include a conventional thermal current Ith of 2000 A, Ui of 1000 V, Uimp of 12 kV, and Ie up to 2000 A across AC-21B, AC-31B, and AC-33B. The device uses screw terminals, 100 mm terminal width, and provides front IP20 protection, with a 55 W power loss per pole under rated conditions.
Yes. It features a padlockable 0-position handle and door interlock in the I- and II- positions, supporting lockout-tagout practices. The black pistol-type handle provides ergonomic control, enhancing operator safety during maintenance while ensuring secure, verifiable status before service.
ABB provides a CE Declaration of Conformity, RoHS information, CMRT, and Reach declarations, plus a DNV certificate for critical applications. The model is referenced in the ABB EcoSolutions materials for end-of-life guidance, and standard manuals and data sheets are available to support installation and audits.
Net weight is 54.285 kg with a Package Level 1 gross weight of 73 kg. Packaging dimensions are 394 mm W x 584 mm D x 385 mm H, with EAN 6417019382814. These specs align with common pallet and rack handling, aiding procurement planning and on-site logistics.
