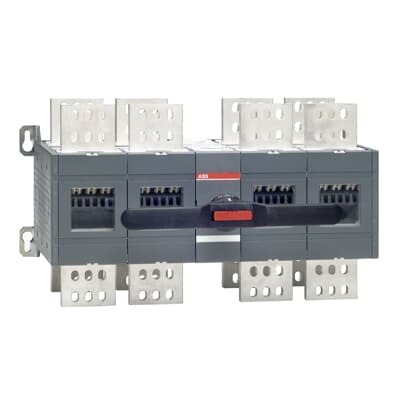

ABB 1SCA103953R1001 Change-Over Switch - CE Certified
Part Number: 1SCA103953R1001
Quick Summary
1SCA103953R1001 is a 2000 A four-pole manual change-over switch for reliable power transfer in industrial switchgear. Engineers and procurement teams often wrestle with downtime and safety risks during source transfers, requiring robust interlocks and padlockable protection. This ABB device carries CE conformity, a DNV certificate, and RoHS/REACH compliance, with front IP20 protection for safe, compliant operation in demanding environments. With base mounting, screw terminals, and a padlockable 0-position, it supports quick installation and long-term reliability. By combining high current capability with proven safety features, it delivers measurable business value for critical production lines and data-center infrastructure. This makes it a practical, future-proof selection for panel builders, OEMs, and facilities teams prioritizing uptime and safety.
Product Information
Extended Description
1SCA103953R1001 ABB: 2000A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT2000-2500_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
664 mm | 26.14 in
Product Net Height
377 mm | 14.84 in
Product Net Depth / Length
335 mm | 13.19 in
Product Net Weight
69.55 kg | 153.33 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
444 mm | 17.48 in
Package Level 1 Depth / Length
714 mm | 28.11 in
Package Level 1 Height
385 mm | 15.16 in
Package Level 1 Gross Weight
72.05 kg | 158.84 lb
Package Level 1 EAN
6417019383101
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 55 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 2000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
100 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT2000-2500_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3650329
Feature: High current, four-pole design supports 2000 A capacity. Business Impact: Enables safe, reliable main power transfer for large loads, reducing overload risk and downtime. Application: Main switchgear in manufacturing plants and data centers where heavy-duty disconnection is required. Feature: Padlockable 0-position and door interlock in I/II positions. Business Impact: Improves safety and compliance by preventing accidental operation during maintenance. Application: Industrial cabinets requiring safe lockout/tagout procedures. Feature: Base mounting with screw terminals and specified tightening torque. Business Impact: Simplifies installation and retrofit, lowers commissioning time, and ensures secure terminations. Application: Panel assemblies and retrofit projects with existing base frames. Feature: Protective ratings and surge resilience. Business Impact: Offers robust protection against transients (Uimp 12 kV, Ui 1000 V) and reliable performance under fault conditions. Application: High-energy main circuits in process lines and power distribution racks. Feature: Certifications and environmental compliance. Business Impact: Reduces regulatory risk and simplifies supplier qualification (CE, RoHS/REACH, DNV). Application: Industries with stringent compliance and sustainability requirements. Feature: Comprehensive physical size and mass data. Business Impact: Facilitates accurate mechanical planning and enclosure design (664 mm W x 377 mm H x 335 mm D, ~69.6 kg). Application: System integration in space-constrained switchgear housings and OEM design guides.
Get a Quick Quote for a ABB 1SCA103953R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103953R1001?
Enquire Now
FAQs
The 1SCA103953R1001 is designed for base-mounted installations with screw terminals, supporting high-current main circuits up to 2000 A. Its four-pole construction (4P) suits large switchgear assemblies and OEM panels, while compatibility with standard mounting footprints simplifies retrofits and new builds alike. Ensure the enclosure provides enough clearance for 664 mm width and 335 mm depth, and verify torque specifications of 50–75 N·m for secure terminations.
Key ratings include a rated operational current (Ie) of 2000 A for AC-21B, AC-31B, and AC-33B configurations, Ui of 1000 V, Uimp of 12 kV, and Icw of 55 kA rms for 1 second. The switch is main-circuit rated for 1000 V, with a four-pole arrangement and a power loss of about 55 W per pole. These specs support robust performance in high-current switching applications.
Front protection is rated IP20, offering protection against contact with non-hazardous parts while not being fully dust-tight. The unit is designed to withstand electrical surges with a rated impulse withstand voltage (Uimp) of 12 kV and a rated insulation voltage (Ui) of 1000 V, ensuring safer operation under transient conditions common in industrial power systems.
The product supports CE conformity (Declaration of Conformity), RoHS, and REACH compliance, with an accompanying DNV certificate for additional oversight. These certifications help meet European regulatory requirements and supplier qualification criteria for critical electrical equipment used in industrial environments.
The padlockable 0-position and I/II door interlock features enhance safety and reduce maintenance risk by preventing unintended operations. Its high current rating and robust construction lower fault-related downtime, contributing to a shorter total cost of ownership. In addition, its RoHS/REACH compliance simplifies regulatory audits, while base mounting and screw-terminal connections shorten installation and service times.
