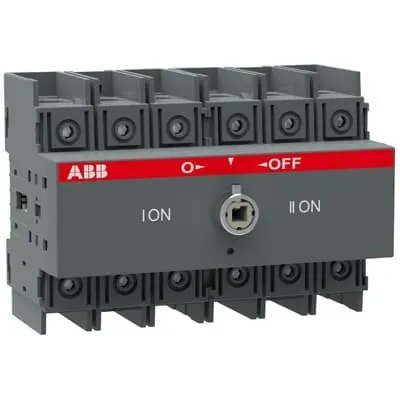

ABB 1SCA105008R1001 Change-Over Switch - UL/IEC60947-3
Part Number: 1SCA105008R1001
Quick Summary
ABB 1SCA105008R1001 is a 100 A manual change-over switch for safe source transfer in electrical distribution panels. When power sources switch, open-transition design helps minimize arcing and outages, keeping critical equipment online during transition. This product carries UL/IEC60947-3 compliance, front IP20 protection, and RoHS/REACH declarations to support safety, reliability, and regulatory adherence. In addition to its 3P base-mounted configuration and screw-terminal versatility for 10–70 mm² conductors, it offers a robust lifecycle with up to 6000 mechanical cycles, enabling longer service intervals and lower maintenance costs for industrial installations.
Product Information
Extended Description
1SCA105008R1001 ABB: 100A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Environmental Product Declaration - EPD
PEP, EPD, OT100-125_C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Switch Disconnectors OT16-40F3-4C
Environmental Product Declaration - EPD
PEP, EPD, OT100-125_C
Degree of Protection
Front IP20
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
140 mm | 5.51 in
Product Net Height
100 mm | 3.94 in
Product Net Depth / Length
86 mm | 3.39 in
Product Net Weight
0.9 kg | 1.98 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
102 mm | 4.02 in
Package Level 1 Depth / Length
205 mm | 8.07 in
Package Level 1 Height
103 mm | 4.06 in
Package Level 1 Gross Weight
0.9 kg | 1.98 lb
Package Level 1 EAN
6417019391397
Cable Cross-Section
10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 115 A
Conventional Thermal Current (Ithe)
Fully Enclosed 115 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mechanical Durability
6000 cycle
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
750 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 100 A | (500 V) 100 A | (690 V) 100 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 100 A | (500 V) 100 A | (690 V) 100 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 80 A | (500 V) 60 A | (690 V) 40 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 37 kW | (500 V) 37 kW | (690 V) 37 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kiloampere rms
Standards
UL 98 / IEC60947-3
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Transition Type
Open
Ampere Rating
100 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 30 Hp | (acc. to UL 208 V) 30 Hp | (acc. to UL 240 V) 30 Hp | (acc. to UL 480 V) 50 Hp | (acc. to UL 600 V) 50 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT100...125F_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601402
E-Number (Norway)
4363558
E-Number (Sweden)
3171265
Feature: 3-pole, 100 A rating enables reliable three-phase power transfer in standard panel environments. Business Impact: Supports high-load distribution without oversizing equipment, reducing hardware costs while maintaining reliability. Application: Suitable for industrial control cabinets and switchgear where predictable phase balance is critical. Feature: Open-transition switching and 75 0 V insulation rating with 8 kV impulse withstand. Business Impact: Minimizes arcing during transfer, protecting downstream equipment and improving uptime in critical processes. Application: Backup power and critical load transfer in manufacturing lines. Feature: Base mounting and screw-terminal connection for 10–70 mm² conductors. Business Impact: Simple, secure installation with flexible cabling, shortening panel assembly time and reducing field errors. Application: Modular switchgear and control panels in industrial facilities. Feature: Front IP20 protection and 3 Pollution Degree rating. Business Impact: Enhanced protection in unsealed enclosures, lowering environmental risk and inspection time. Application: Indoor electrical distribution and control panels in workshops and plants. Feature: Mechanical durability rated at 6000 cycles and tightening torque of 6 N·m. Business Impact: Long service life and consistent electrical performance, lowering maintenance and replacement costs. Application: Frequent operation environments such as automated lines and process control systems.
Get a Quick Quote for a ABB 1SCA105008R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA105008R1001?
Enquire Now
FAQs
This 3P change-over switch is designed for base mounting in electrical panels and uses screw terminals compatible with 10–70 mm² conductors. It requires a tightening torque of 6 N·m and supports front operation. Ensure the panel spacing accommodates the 86 mm depth and verify voltage ratings align with your system (750 V insulation, 380–415 V or 500–690 V ranges).
The device is rated for 100 A across multiple voltages: (380–415 V) 100 A, (500 V) 100 A, and (690 V) 100 A. It features an open-transition transition, 8 kV rated impulse withstand, and 750 V rated insulation voltage. It is UL 98 / IEC60947-3 compliant and supports 10–70 mm² conductor cross-sections.
Yes. With 3P configuration, 100 A rating, base mounting, and screw terminals, it is well-suited for industrial control cabinets, switchgear, and back-up power transfer in manufacturing environments where reliable phase-to-phase switching and robust mechanical durability (6000 cycles) are required.
The switch carries UL 98 / IEC60947-3 compliance, CE conformity, RoHS information, Reach declaration, and CMRT. It also has environmental declarations (EPD) and a DNV certificate for expanded industry acceptance, with front IP20 protection and 3rd‑party safety validations.
Given a mechanical durability rating of 6000 cycles, plan routine inspection of terminals and mounting hardware, verify torque at 6 N·m, and check the switch’s alignment with the line terminals. The open-transition design minimizes arc-related wear, reducing preventive maintenance time and contributing to higher uptime in continuous‑process environments.
