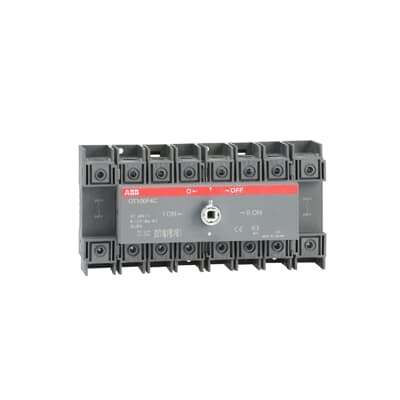

ABB 1SCA105019R1001 Change-Over Switch - IEC 60947-3
Part Number: 1SCA105019R1001
Quick Summary
ABB 1SCA105019R1001 Change-Over Switch enables open-transition 4-pole switching for industrial control panels. This solution helps reduce downtime during source changes by delivering safe, predictable transfer with clear isolation. It complies with UL 98 and IEC 60947-3, and carries CE conformity, while offering IP20 front protection and a rugged 6000-cycle life. For panel builders and maintenance teams, base mounting and screw-terminal wiring streamline installation and future servicing. By combining durable construction with precise electrical ratings, it supports reliable, cost-efficient transfers in critical manufacturing and process automation environments. This device is well-suited for systems where robust reliability, easy installation, and regulatory compliance matter most to total cost of ownership.
Product Information
Extended Description
1SCA105019R1001 ABB: 100A Manual Change-Over Switch, Handle and shaft need to be ordered separately, Open transition
Environmental Product Declaration - EPD
PEP, EPD, OT100-125_C
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Switch Disconnectors OT16-40F3-4C
Environmental Product Declaration - EPD
PEP, EPD, OT100-125_C
Degree of Protection
Front IP20
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
193 mm | 7.6 in
Product Net Height
100 mm | 3.94 in
Product Net Depth / Length
86 mm | 3.39 in
Product Net Weight
1.3 kg | 2.87 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
102 mm | 4.02 in
Package Level 1 Depth / Length
205 mm | 8.07 in
Package Level 1 Height
103 mm | 4.06 in
Package Level 1 Gross Weight
1.3 kg | 2.87 lb
Package Level 1 EAN
6417019391502
Cable Cross-Section
10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 115 A
Conventional Thermal Current (Ithe)
Fully Enclosed 115 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mechanical Durability
6000 cycle
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
8 kV
Rated Insulation Voltage (Ui)
750 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 100 A | (500 V) 100 A | (690 V) 100 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 100 A | (500 V) 100 A | (690 V) 100 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 80 A | (500 V) 60 A | (690 V) 40 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 37 kW | (500 V) 37 kW | (690 V) 37 kW
Rated Operational Voltage
Main Circuit 750 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 2.5 kiloampere rms
Standards
UL 98 / IEC60947-3
Switches Operating Mechanism
Mechanism on Top of the Switch
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 6 N·m
Transition Type
Open
Ampere Rating
100 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 30 Hp | (acc. to UL 208 V) 30 Hp | (acc. to UL 240 V) 30 Hp | (acc. to UL 480 V) 50 Hp | (acc. to UL 600 V) 50 Hp
Tightening Torque
acc. IEC 60947-1 6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT100...125F_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601404
E-Number (Norway)
4363559
