ABB 1SCA105514R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA105514R1001
Quick Summary
ABB 1SCA105514R1001 is a 3-pole, front-operated switch-disconnector designed for high-current isolation in industrial power distribution. This solution addresses field challenges like limited panel depth and difficult accessibility by combining compact base mounting with straightforward installation. Key certifications include IEC 60947-3, a CE Declaration of Conformity, and RoHS compliance, along with IP00 front protection for indoor environments. The combination of robust electrical ratings and comprehensive documentation delivers business value by supporting safer shutdowns, predictable maintenance, and faster procurement cycles. For end users, this means reduced downtime, easier commissioning, and better alignment with plant-wide safety and compliance programs.
Product Information
Extended Description

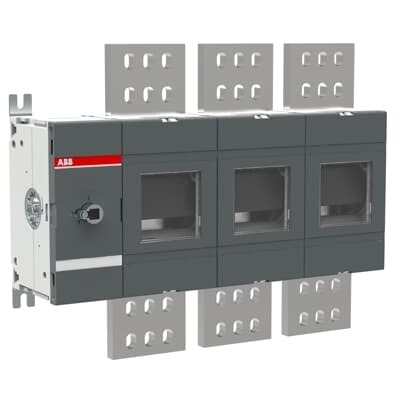

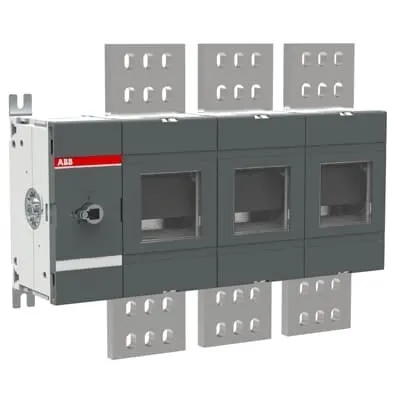

1SCA105514R1001 ABB: 3-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT2000-2500 Disassembly Instructions
Environmental Information
PEI OT2000-2500
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT2000-OT2500
Mechanical Drawings
OT2000-2500E03, dwg-file | OT2000-2500E03, dxf-file | OT2500E03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Degree of Protection
Front IP00
Environmental Information
PEI OT2000-2500
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
472.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
24.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
407 mm
Package Level 1 Depth / Length
619 mm
Package Level 1 Height
190 mm
Package Level 1 Gross Weight
26.9 kg
Package Level 1 EAN
6417019395029
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2000 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 55 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A | (690 V) 2000 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A | (690 V) 2000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT1000-2500
Declaration of Conformity - CE
Declaration of Conformity / OT2000-2500E
DNV GL Certificate
1SCC301184D0203
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 3-pole, front-operated design enables direct, ergonomic operation and reliable isolation in main power paths. Business Impact: Improves safety, reduces switchgear downtime, and simplifies maintenance scheduling in production lines. Application: Motor control centers and distribution panels requiring high-current isolation. Feature: Base mounting with terminal bolt kit included and handle/shaft not included. Business Impact: Streamlined installation, lower accessory cost, and flexible integration into existing enclosures. Application: OEM and retrofit projects where mounting space is at a premium. Feature: 2000 A rated operational current and 1000 V rated insulation voltage. Business Impact: Supports large main feeders with wide voltage tolerance, reducing future reconfiguration. Application: Heavy-duty power distribution and main switchgear. Feature: High short-circuit and fault current capabilities (Icm 176 kA, Icw 55 kA for 1 s). Business Impact: Enhanced system safety margins and improved fault tolerance, lowering risk of collateral damage. Application: Industrial plants with critical loads and demanding fault scenarios. Feature: Mechanical durability of 6000 cycles and standardized mounting (Base mounting). Business Impact: Longer service life with predictable replacement intervals, lowering maintenance costs. Application: Repetitive switching in process industries. Feature: Comprehensive documentation set (Data Sheets, Disassembly Instructions, EPD, CMRT, REACH, TSCA). Business Impact: Accelerates compliance workflows and supplier qualification. Application: Procurement, QA, and regulatory reporting across global sites. Feature: Environmental and material compliance (RoHS, CMRT, TSCA, EPD). Business Impact: Simplifies supply-chain risk management and supports sustainability programs. Application: Global manufacturing footprints with strict supplier standards. Feature: Dimensional and weight data (472.5 mm W x 376.5 mm H x 145.5 mm D, 24.9 kg). Business Impact: Accurate space planning and logistics for stocking and shipping. Application: Panel design and warehouse operations. This integrated set of specifications supports a robust, future-proof switch-disconnector solution for industrial automation environments.
