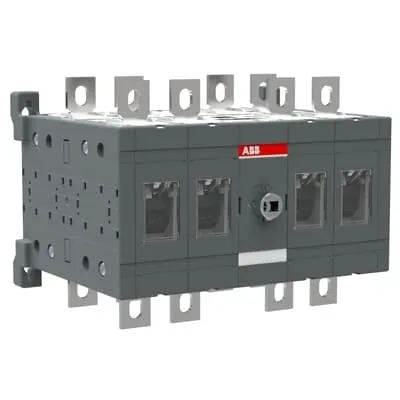

ABB 1SCA105956R1001 OT160E22C Change-over Switch - IP20
Part Number: 1SCA105956R1001
Quick Summary
ABB 1SCA105956R1001 OT160E22C change-over switch delivers reliable circuit isolation in industrial control panels. In practice, engineers often battle space constraints, accessibility, and downtime when selecting replacement devices. This unit ships with CE conformity, RoHS and Reach declarations, plus a DNV certificate for high-integrity environments. Its 4-pole arrangement, 160 A rating, and base-mount design streamline installation and future maintenance while aligning with common industrial standards. By pairing robust electrical ratings with practical documentation, it supports safe upgrades in power distribution, motor control, and switchgear applications.
Product Information
Extended Description
1SCA105956R1001 ABB: 160A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.95 kg | 8.71 lb
Package Level 1 Units
1 piece
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
270 mm | 10.63 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.1 kg | 9.04 lb
Package Level 1 EAN
6417019398747
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature 4-pole, 160 A change-over mechanism → Business Impact Enables simultaneous isolation of all lines, reducing wiring errors and downtime during transfers. Application Ideal for 3-phase power switching in switchgear and control panels, including motor control centers. Feature 160 A rated current across 380-415 V, 500 V, and 690 V → Business Impact Supports high-load switching with minimal voltage drop and thermal stress. Application Suitable for heavy-duty distribution networks and process lines where consistent current handling is critical. Feature Front IP20 protection and RoHS/Reach compliance → Business Impact Improves safety and environmental compliance with simple auditing and reduced risk of non-conformant installs. Application Indoor panel installations in regulated industries benefit from reliable protection ratings. Feature Base mounting with screw terminals (20 mm width) → Business Impact Simplifies retrofit and field wiring with secure connections and straightforward torque control (15-22 N·m). Application Quick integration into existing enclosures and control cabinets. Feature Fourth pole positioned on the right and switched-simultaneous function → Business Impact Enables consistent interlock and inter-pole sequencing, preventing partial energization. Application Suitable for equipment where a dedicated, coordinated fourth pole is required for control logic and safety interlocks. Feature Rated insulation voltage Ui 1000 V and impulse withstand 12 kV → Business Impact Provides robust insulation margins, improving overall system reliability and surge resilience. Application High-voltage switchgear and protective relays in industrial environments benefit from added insulation headroom. Feature Handling and installation notes: Handle and shaft not included → Business Impact Allows customization with compatible handles while maintaining modular maintenance options. Application Optimized for field service where operators select compatible handles for ergonomics. Combined, these features deliver a dependable, standards-aligned change-over solution that reduces lifecycle costs and supports easier audits for industrial power control and switching applications.
Get a Quick Quote for a ABB 1SCA105956R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA105956R1001?
Enquire Now
FAQs
When installing the OT160E22C, ensure base mounting on a stable chassis and secure screw terminals with a tightening torque of 15-22 N·m. Remember the handle and shaft are sold separately, so select compatible components. Verify the 4P configuration and sign off on IP20 protection for indoor panel use to maintain safe operation.
The device is rated for 160 A across 380-415 V, 500 V, and 690 V, with an AC-23A rating at the same current. This combination supports high-load motor control and power distribution tasks while maintaining reliable switching, reducing heating and voltage drop in demanding applications such as fans, pumps, and conveyors.
The OT160E22C carries CE conformity, RoHS and Reach declarations, plus a DNV certificate. It is also referenced in CMRT and related environmental declarations. These certifications help simplify audits, supplier qualification, and end-user compliance in automotive, energy, and process industries.
The fourth pole is positioned on the right and switches simultaneously with the other poles, enabling coordinated interlocking and safer de-energization sequences. This reduces the risk of partial energization during transfer or maintenance, which is especially important in multi-line feeders and critical load scenarios.
Maintenance benefits come from its modular design, base mounting, and screw terminals that simplify wiring checks. The requirement to source the handle and shaft separately allows tailored ergonomic solutions. With its high current rating, robust insulation, and documented specifications, the device minimizes downtime and supports long service life in demanding environments.
