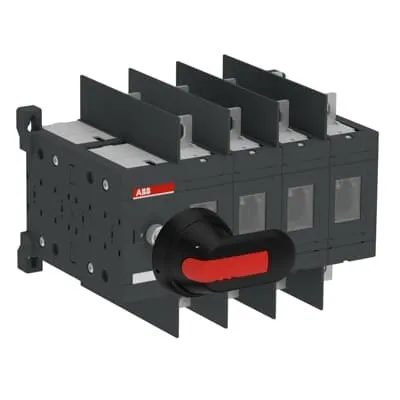

ABB 1SCA107241R1001 SWITCH-DISCONNECTOR - IEC 60947-3
Part Number: 1SCA107241R1001
Quick Summary
ABB 1SCA107241R1001 SWITCH-DISCONNECTOR is a high-current isolation device for safe mains distribution in LV switchgear. This solution addresses common field pain points such as space constraints, assembly time, and regulatory compliance by integrating essential features into a single unit. It carries key certifications and declarations that support lifecycle compliance: IEC 60947-3, CE Declaration of Conformity, and RoHS status, along with an IP00 front protection rating. By combining robust insulation, durable construction, and straightforward installation, it delivers predictable performance in rugged industrial environments. For teams seeking reliable isolation with scalable, eight-pole capability, this device aligns with standard-driven design and reduces total cost of ownership across installation, operation, and maintenance.
Product Information
Extended Description
1SCA107241R1001 ABB: OT200E04WDP SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Manual 6- and 8-pole switches OT_D (EN)
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm
Product Net Height
150 mm
Product Net Depth / Length
159.5 mm
Product Net Weight
3.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
186 mm
Package Level 1 Depth / Length
310 mm
Package Level 1 Height
185 mm
Package Level 1 Gross Weight
4.5 kg
Package Level 1 EAN
6417019407289
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Number of Poles
8P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Eight-pole design delivers consolidated isolation for complex switchgear architectures, enabling centralized control and reduced wiring complexity in distribution boards and motor control centers. This translates to faster assembly, easier troubleshooting, and improved safety margins on retrofit projects. Feature: 200 A conventional thermal current (Ithe) and 8P configuration. Benefit: Handles high-load circuits with predictable thermal performance, lowering the risk of overheating and unplanned downtime in manufacturing plants and process facilities. Application: Main circuit isolation in LV switchgear and motor starters where frequent disconnection is required. Feature: Rated Operational Current AC-22A/AC-23A at 380–415 V to 690 V and 200 A. Benefit: Broad voltage compatibility reduces the need for multiple part numbers and supports standardization across mixed-voltage zones. Application: Industrial power distribution and functionality within switchgear cabinets. Feature: Rated Insulation Voltage Ui up to 1000 V and Rated Operational Voltage up to 1000 V. Benefit: Ensures safe isolation under high-potential conditions, meeting stringent electrical safety standards. Application: Primary isolation in protection schemes for feeders and motor circuits. Feature: Rated Short-Circuit Making Capacity Icm 30 kA and Icw 8 kA for 1 s. Benefit: Enhances protection against surge events, minimizing damage to downstream equipment during fault conditions. Application: Protective disconnection in high-energy automotive and process lines. Feature: IP00 protection, lug terminals, and mechanical durability of 20000 cycles. Benefit: Simple, accessible maintenance with long service life and straightforward field servicing. Application: Routine maintenance in service cabinets and compact switchboards. Feature: Handle and shaft included with locking option. Benefit: Safe manual operation and secure-locking for maintenance procedures and safety compliance. Application: Portable or fixed installations requiring reliable manual isolation with tamper resistance. Feature: RoHS, CMRT, and EPD environmental declarations. Benefit: Supports sustainability reporting and regulatory compliance across global supply chains. Application: Projects with green procurement requirements and supplier risk management.
Get a Quick Quote for a ABB 1SCA107241R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107241R1001?
Enquire Now
FAQs
The device utilizes lug terminals designed for robust, screw-type connections. With an 8-pole configuration and the handle-and-shaft assembly included, it supports straightforward mechanical mounting in standard switchgear racks. This configuration minimizes wiring complexity and streamlines field installation, improving reliability and reducing commissioning time for new panels or retrofits.
Key ratings include 200 A conventional thermal current (Ithe), 1000 V insulation voltage Ui, and 1000 V rated operational voltage. It supports AC-22A and AC-23A operation at 380–415 V, 500 V, and 690 V, with a 30 kA short-circuit making capacity (Icm) and 8 kA short-time withstand (Icw) for 1 s. These ratings ensure compatibility with medium-power LV switchgear and motor control center applications.
Yes. With 8 poles, 200 A capability, and 1000 V insulation, the unit is well-suited for isolating multiple circuits in motor control centers and LV distribution boards. Its mechanical durability of 20,000 cycles and secure locking provide lasting reliability in demanding environments, while the IP00 front protection supports accessible field servicing.
It complies with IEC 60947-3 and carries a CE Declaration of Conformity for OT160-250 series, ROHS compliance, and CMRT disclosures. An A2L refrigerant declaration is also available for related ABB documentation. These declarations simplify compliance planning, supplier audits, and environmental reporting for regulated industries.
Expect improved uptime due to high mechanical durability (20,000 cycles) and durable lug-terminals that reduce connection reliability issues. The product’s robust isolation and fault tolerance minimize unplanned outages, lowering maintenance costs and extending panel life. The RoHS and RoHS-related declarations also support sustainable procurement, potentially reducing total cost of ownership over project lifecycles.
