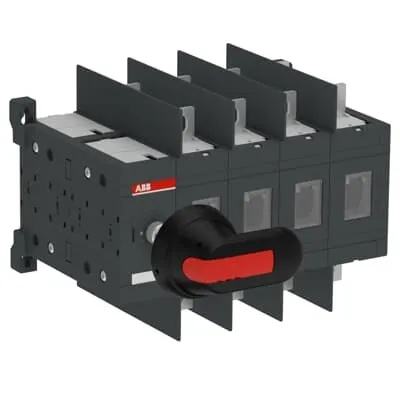

ABB 1SCA107461R1001 SWITCH-DISCONNECTOR - 12 kV IEC 60947-3
Part Number: 1SCA107461R1001
Quick Summary
ABB 1SCA107461R1001 SWITCH-DISCONNECTOR is a high-capacity disconnector for main power circuits in industrial controls. Maintenance teams often face downtime due to unreliable isolation and complex wiring during servicing. This device aligns with IEC 60947-3, featuring CE conformity and UL/cULus approvals, and delivers a 30 kA short-circuit rating plus 12 kV impulse withstand for reliable protection. Optimized for control panels, the 8-pole design with lug terminals simplifies installation, while the compact dimensions and predictable power loss (6.5 W per pole) support energy management and lifecycle budgeting. For procurement, the device offers clear documentation and predictable lifecycle costs, helping operators reduce maintenance windows and improve uptime across critical lines.
Product Information
Extended Description
1SCA107461R1001 ABB: OT200U04DP SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Manual 6- and 8-pole switches OT_D (EN)
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm
Product Net Height
170 mm
Product Net Depth / Length
159.5 mm
Product Net Weight
4.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
186 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Height
185 mm
Package Level 1 Gross Weight
4.5 kg
Package Level 1 EAN
6417019409511
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Number of Poles
8P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High current capability with 8 poles and 250 A rated current enables true main-circuit isolation in demanding automation environments. Business Impact: Reduces the need for interim switches, improves reliability, and lowers device counts in panels. Application: Suitable for 380–415 V and 690 V main circuits in machine centers and packaging lines. Feature: Robust surge protection with 12 kV rated impulse withstand and 30 kA short-circuit making capacity. Business Impact: Enhanced fault resilience minimizes arc flash risk and protects downstream equipment. Application: Critical power sections and motor drives in heavy-duty production lines. Feature: Mechanical durability rated at 20,000 operating cycles and an 8-pole, lug-terminal design. Business Impact: Longer service life lowers maintenance intervals and replacement costs. Application: Repeated isolation/isolation-changeover in batch processing or presses. Feature: Clear installation compatibility with lug terminals and a tightening torque specification of 22.6 N·m. Business Impact: Faster, repeatable wiring with consistent electrical connections, reducing commissioning time. Application: Control cabinets and switchgear assemblies where reliable torque is critical. Feature: Documentation and compliance support, including IEC 60947-3/UL 98/CSA C22.2 NO.4 and CE declarations. Business Impact: Facilitates audits, reduces certification delays, and ensures safer, standards-aligned installations. Application: Global manufacturing environments with strict regulatory requirements. Feature: Compact enclosure footprint with front IP00 protection, enabling efficient panel integration. Business Impact: Optimizes space in control cabinets and supports cleaner cable management. Application: Indoor, non-weather-exposed installations in machinery and packaging equipment.
Get a Quick Quote for a ABB 1SCA107461R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107461R1001?
Enquire Now
FAQs
This unit uses lug terminals with a tightening torque of 22.6 N·m. Ensure the panel offers at least 237 mm width and 159.5 mm depth space for proper clearance, and mount in a control cabinet with front IP00 protection to avoid exposure. Follow the included manual for sequence and safety checks.
Rated operational current is 250 A across 380–415 V and 690 V, with a rated short-circuit making capacity of 30 kA at 690 V. It withstands impulse voltages up to 12 kV and insulation up to 1000 V per IEC/UL CSA standards, with 8 poles and 6.5 W per pole power loss.
Yes. It conforms to IEC 60947-3, and has UL/cULus certification along with CSA C22.2 NO.4. A CE Declaration of Conformity is provided, supporting international procurement and regulatory compliance for electrical protection and circuit control applications.
The device features front IP00 protection, meaning it is intended for indoor, non-weather exposed installations inside control cabinets. Consider additional enclosure or enclosure-level IP protection if exposure to dust or moisture is possible in your application.
Mechanical durability is rated at about 20,000 cycles, reducing replacement frequency in high-switching environments. The unit includes an integrated handle with lock options, and ABB EcoSolutions provide disassembly and environmental information to support maintenance planning and end-of-life disposal.
