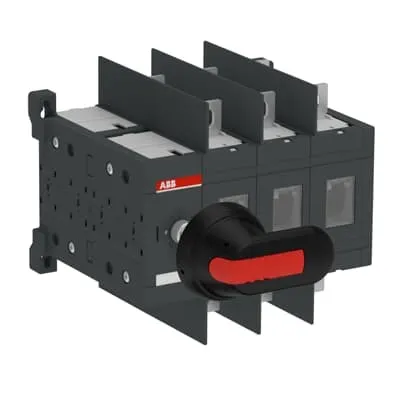

ABB 1SCA107465R1001 Switch-Disconnectors - UL Listed
Part Number: 1SCA107465R1001
Quick Summary
ABB 1SCA107465R1001 Switch-Disconnectors protect and isolate large motor circuits in industrial plants. Maintenance and downtime are costly when disconnection is unreliable or hard to access. These devices are certified to IEC 60947-3, UL 98, and CSA C22.2 NO.4 with CE declarations, delivering safety and cross‑vendor interoperability. Built for 6P configurations with a 200 A current rating at main circuit voltages up to 1000 V, they offer robust mechanical durability and quick, reliable installation in modern switchgear. The products also align with RoHS and CMRT requirements, supporting sustainability goals and streamlined procurement.
Product Information
Extended Description
1SCA107465R1001 ABB: OT200U03DP SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Manual 6- and 8-pole switches OT_D (EN)
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm
Product Net Height
170 mm
Product Net Depth / Length
159.5 mm
Product Net Weight
3.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
186 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Height
185 mm
Package Level 1 Gross Weight
3.7 kg
Package Level 1 EAN
6417019409559
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Number of Poles
6P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature 1 → 6P, 200 A rating, 1000 V main circuit capability; Business impact: enables safe isolation of large motors in high-energy environments with margin for peak fault currents; Application: motor control panels in manufacturing facilities. Feature 2 → Lockable handle and shaft included; Business impact: enhances worker safety through lockout/tagout reliability; Application: maintenance windows and live-line operations in hazardous areas. Feature 3 → Mechanical durability rated at 20000 cycles; Business impact: reduces replacement cost and downtime in heavy-use installations; Application: frequent switch operations in conveyors and pumps. Feature 4 → Front IP00 protection with robust environmental credentials (RoHS, CMRT, EPD); Business impact: supports indoor dry installations while meeting sustainability and regulatory demands; Application: panel-mounted gear in new builds or retrofits. Feature 5 → Lug terminals with specified tightening torque of 22.6 N·m; Business impact: ensures dependable electrical connections and reduced field retightening; Application: field wiring in control panels. Feature 6 → Comprehensive documentation and compliance (IEC 60947-3, UL 98, CSA C22.2 NO.4, CE declarations); Business impact: accelerates approvals and commissioning; Application: regulated industrial environments and certified installations.
Get a Quick Quote for a ABB 1SCA107465R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107465R1001?
Enquire Now
FAQs
The device complies with IEC 60947-3, UL 98, and CSA C22.2 NO.4, with CE declarations. It also aligns with RoHS and CMRT for material compliance and environmental responsibility. This combination supports safe interoperability across major panel builders and end-user plants.
The assembly supports a conventional current rating of 200 A (I_the) and a main circuit voltage of 1000 V. It provides I_cm up to 30 kA at 690 V and Icw of 8 kA for 1 second, with rated operational currents of 250 A for 380–415 V, 500 V, and 690 V variants, making it suitable for demanding motor and process applications.
Yes. The front face is rated IP00, intended for indoor, dry environments. It uses lug terminals and is designed for integration into standard switchgear panels. For enhanced protection and cleanliness, install within a clean, enclosed panel where dust and moisture are controlled.
Documentation includes the Manual OT_D for 6- and 8-pole switches (EN), environmental information (EPD/CMRT data), and CE declarations. Additional product specifics and compatibility notes are covered in the associated ABB EcoSolutions material, supporting safe installation and regulatory compliance.
Plan for a tightening torque of 22.6 N·m on lug terminals, ensure proper 6P wiring, and account for the device weight of 3.4 kg and dimensions (approximately 194 mm W x 170 mm H x 159.5 mm D). Consider a 1-piece MOQ and Finland-origin for sourcing and reliability in your procurement workflow.
