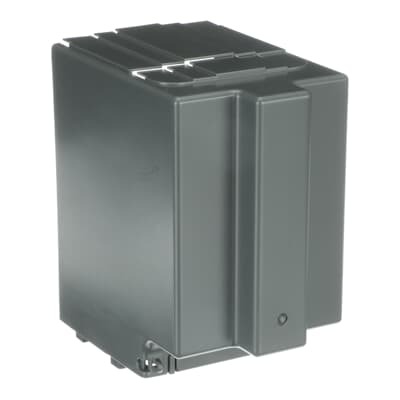

ABB 1SCA107938R1001 Terminal Shroud - RoHS Compliant
Part Number: 1SCA107938R1001
Quick Summary
ABB 1SCA107938R1001 Terminal Shroud is designed to securely enclose and align switchgear terminals in control panels. Panel builders often contend with misalignment, exposed conductors, and time-consuming assembly that drives costs. This solution supports RoHS compliance, REACH declarations, and CMRT, helping teams pass audits with confidence. With snap-on mounting and a compact footprint, installation is faster and serviceability is improved, especially where OSS1250G1L/3 devices are used. Selecting this shroud strengthens reliability, regulatory readiness, and long-term maintenance planning for electrical protection and circuit control installations.
Product Information
Extended Description
1SCA107938R1001 ABB: OSS1250G1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS1200-1250
Mechanical Drawings
OSS1250G1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
110 mm
Product Net Height
181 mm
Product Net Depth / Length
164 mm
Product Net Weight
0.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
175 mm
Package Level 1 Depth / Length
330 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
0.5 kg
Package Level 1 EAN
6417019413976
Mounting Type
Snap-on mounting
Special Functions
L/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3661018
Snap-on mounting enables tool-free, rapid installation, reducing panel build time and minimizing the risk of loose fittings. This translates to lower labor costs and fewer rework incidents on the shop floor. It is particularly effective in panels housing OSS1250G1L/3, OS fuses, and related low-voltage switchgear components, where precise terminal alignment speeds testing and energization. Regulatory compliance is baked in with explicit RoHS, REACH, and CMRT declarations, mitigating supply-chain risk and simplifying audits. The shroud’s 110 mm width, 181 mm height, and 164 mm depth provide a compact, standardized footprint that supports consistent documentation and replacement parts planning. Mechanical drawings OSS1250G1L.stp are available to ensure accurate fit during design reviews. ETIM and UNSPSC classifications further streamline procurement and cataloging for energy-efficient panel builds. The durable construction and 0.5 kg weight offer robust protection without adding significant load to cabinet shelves, improving overall reliability and serviceability.
Get a Quick Quote for a ABB 1SCA107938R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107938R1001?
Enquire Now
FAQs
The 1SCA107938R1001 is explicitly designed for OSS1250G1L/3 terminal shrouds and related OS fuses, using ABB’s snap-on mounting system for a secure, vibration-resistant fit. Installation aligns with the OSS1250 family footprint, minimizing lateral misalignment and reducing rework. This compatibility simplifies stock management and ensures consistent performance across ABB low-voltage switchgear accessories.
Key compliance specs include RoHS information, REACH declaration for AC switches and fusegear, and CMRT for conflict minerals reporting. These declarations help satisfy regulatory audits and customer sustainability requirements. The UL certificate states no certification needed, reflecting compatibility with standard ABB components and avoidance of redundant certifications in typical panel builds.
Yes. The shroud is engineered for control panels housing low-voltage switchgear, providing a secure enclosure for terminals while maintaining safe creepage distances. Its snap-on mounting supports quick installation, reduces cabinet wiring time, and supports reliable field service. The product’s dimensions and weight are chosen to preserve cabinet clearance and ease replacement without disassembly of surrounding components.
Prioritize snap-on mounting alignment during initial fit to prevent gaps and conductor exposure. Refer to Data Sheet and OSS1250G1L.stp for correct assembly geometry. Ensure RoHS/REACH/CMRT declarations are in project documentation to satisfy audits. Regularly inspect the terminal shroud for wear or damage and replace as a unit to preserve protective coverage and maintain compliance.
Lifecycle value comes from faster installation, reduced risk of miswiring, and improved regulatory compliance. Snap-on mounting lowers labor time by eliminating fastening steps, while standardized dimensions simplify replacement parts planning and inventory. Over the equipment lifecycle, these benefits translate into lower total cost of ownership and steadier project delivery for electrical protection and circuit control installations.
