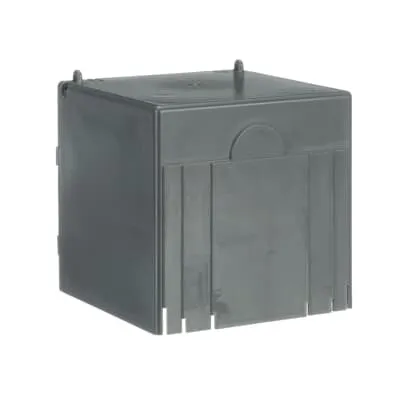

ABB 1SCA107939R1001 Terminal Shroud - S/3, Snap-on
Part Number: 1SCA107939R1001
Quick Summary
ABB 1SCA107939R1001 Terminal Shroud protects exposed terminal connections in low-voltage switchgear installations. It helps prevent arcing, dust ingress, and accidental contact, reducing maintenance interruptions and safety incidents. The design aligns with RoHS and REACH requirements and carries CMRT documentation, reflecting a robust approach to supply-chain responsibility. This shroud also supports compliant installation with snap-on mounting, enabling rapid assembly and consistent clearances in panel builds. For procurement, the product’s Finnish origin and clear packaging data support traceability, while its compact 110 mm width and 114 mm depth fit compact control cabinets. In parallel, engineers can leverage ABB’s data and manuals to streamline installation and ongoing service, reinforcing reliability and compliance in critical automation environments.
Product Information
Extended Description
1SCA107939R1001 ABB: OSS1250G1S/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS1200-1250
Mechanical Drawings
OSS1250G1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
110 mm
Product Net Height
115.6 mm
Product Net Depth / Length
114 mm
Product Net Weight
0.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
330 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
0.4 kg
Package Level 1 EAN
6417019413983
Mounting Type
Snap-on mounting
Special Functions
S/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3661019
CMRT compliance and material transparency are embedded for the ABB 1SCA107939R1001 Terminal Shroud, supporting conflict minerals reporting and supplier due-diligence. This is paired with REACH and RoHS declarations to simplify regulatory audits and reduce risk in global deployments for low-voltage switchgear. The shroud’s RoHS Status confirms ongoing compliance with EU Directive 2011/65/EU and Amendment 2015/863, while the REACH Declaration ensures chemical safety across AC switchgear components, cutting potential warranty claims and compliance costs. Snap-on mounting enables fast, tool-free installation, delivering consistent insulation coverage and faster changeouts in busy control rooms. The footprint—110 mm width by 114 mm depth and 115.6 mm height—fits ABB OSS1250G1S/3 compatible assemblies, optimizing panel real estate. At 0.4 kg, the part balances robustness with ease of handling during maintenance and service planning, supported by data sheets and manuals for commissioning.
Get a Quick Quote for a ABB 1SCA107939R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107939R1001?
Enquire Now
FAQs
Yes. The shroud is designed for snap-on mounting in ABB OSS1250G1S/3-compatible assemblies, with a 110 mm width and 114 mm depth footprint that aligns to standard OS/OSM terminal layouts, enabling quick field upgrades without rework.
It shields exposed terminals to reduce arcing and accidental contact, minimizes dust ingress, and supports RoHS/REACH compliance, CMRT reporting, and reliable, repeatable assembly in control panels, lowering downtime and maintenance costs.
The part includes CMRT documentation, a REACH declaration, and RoHS information, with EU Directive 2011/65/EU compliance and amendment 2015/863. ETIM classifications and E-Number Finland 3661019 further support regulatory audits.
Product net width is 110 mm, height 115.6 mm, depth 114 mm, and net weight 0.4 kg. Packaging at box level is one piece, with outer dimensions 110 × 330 × 165 mm and EAN 6417019413983, aiding space planning and logistics.
Documentation includes Data Sheet, Technical Information for OS and OSM switches and a 1OS1GB catalog, plus Instructions for OS1200-1250 and OSS1250G1S.stp mechanical drawings to support CAD modeling and field commissioning.
