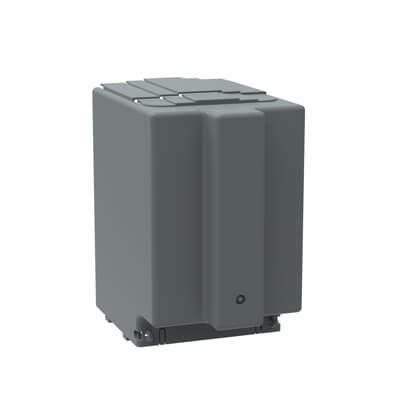

ABB 1SCA107940R1001 Terminal Shroud - RoHS Compliant
Part Number: 1SCA107940R1001
Quick Summary
ABB 1SCA107940R1001 Terminal Shroud is a protective accessory that simplifies safe terminal management on the OSS1250G1L/4 platform. Engineers often face safety risks, limited space, and slow assembly when wiring low-voltage switchgear; this shroud streamlines installation and reduces exposure to energized terminals. It supports RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, includes REACH Declaration for AC switches and fusegear, and provides CMRT data for responsible sourcing, with Finland as the country of origin. By combining snap-on mounting with OS1250 compatibility, it enables faster panel assembly, fewer field errors, and lower lifecycle costs for panel builders and integrators.
Product Information
Extended Description
1SCA107940R1001 ABB: OSS1250G1L/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS1200-1250
Mechanical Drawings
OSS1250G1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
110 mm
Product Net Height
181 mm
Product Net Depth / Length
164 mm
Product Net Weight
0.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
175 mm
Package Level 1 Depth / Length
440 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
0.6 kg
Package Level 1 EAN
6417019413990
Mounting Type
Snap-on mounting
Special Functions
L/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3661020
Feature: Snap-on mounting delivers quick, tool-free installation that reduces commissioning time. Business Impact: Minimizes on-site labor, lowers risk of cable damage, and accelerates project readiness. Application: Ideal for OSS1250G1L/4 terminal assemblies and OS1250 family in space-constrained panel enclosures. Feature: Comprehensive material compliance data includes CMRT, Reach Declaration, and RoHS status. Business Impact: Simplifies regulatory audits, supplier qualification, and cross-border deployment. Application: Critical for global projects requiring traceability and regulatory alignment. Feature: Clear dimensional data—110 mm width, 181 mm height, 164 mm depth—and a 0.6 kg weight. Business Impact: Enables precise space planning and safe clearance for adjacent components. Application: Suitable for compact switchgear and retrofit installations. Feature: Finland origin and embedded ETIM and eClass classifications support accurate cataloging. Business Impact: Improves procurement accuracy and data-driven sourcing decisions. Application: Aligns with ERP masters and ABB OS1250 accessory programs. Feature: UL certificate status indicates no further certification required for this accessory. Business Impact: Reduces qualification overhead and accelerates order-to-install cycles. Application: Useful for UL-listed panel builds and industrial installations demanding compliant accessories. Feature: Packaging details and tariff/origin data—minimum order quantity, 85389099 tariff code, EAN 6417019413990. Business Impact: Streamlines logistics, customs planning, and global distribution. Application: Ideal for stocking and rapid replacement parts programs.
Get a Quick Quote for a ABB 1SCA107940R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107940R1001?
Enquire Now
FAQs
The shroud is designed for ABB OSS1250G1L/4 terminal assemblies and is compatible with the broader OS1250 switchgear family. It uses a snap-on mounting method to simplify installation and align with standard ABB accessory kits.
The part occupies 110 mm in width, 181 mm in height, and 164 mm in depth, with a net weight of 0.6 kg. These measurements help with enclosure layout, clearance planning, and ensuring safe access to terminals during maintenance.
This shroud carries RoHS compliance per EU Directive 2011/65/EU and Amendment 2015/863, a Reach Declaration for AC switches and fusegear, and CMRT data for responsible sourcing. It also notes Finland as the country of origin and includes ETIM/eClass classifications for cataloging.
The snap-on mounting design enables rapid, tool-free attachment, reducing commissioning time and minimizing exposure to live terminals. This is especially beneficial in dense panel layouts where wiring efficiency and safety are paramount.
By speeding up installation, reducing field errors, and simplifying regulatory compliance, the shroud can lower labor costs and project risk. Its documented weight, dimensions, and origin also support smoother logistics and procurement, contributing to lower total cost of ownership over the panel lifecycle.
