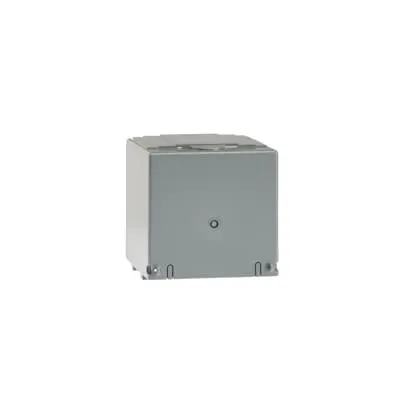

ABB 1SCA107941R1001 Terminal Shroud - OS1250, S/4
Part Number: 1SCA107941R1001
Quick Summary
ABB 1SCA107941R1001 terminal shroud provides rugged protection for low-voltage switchgear in control panels. Engineers often struggle with mounting compatibility and space constraints in tight enclosures, which can delay commissioning. This solution delivers RoHS, REACH declarations, and CMRT reporting to support compliant procurement and audits. With snap-on mounting and a compact footprint, it reduces spare parts variety and speeds installation, while enabling safer, more reliable panel assemblies for industrial automation applications.
Product Information
Extended Description
1SCA107941R1001 ABB: OSS1250G1S/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS1200-1250
Mechanical Drawings
OSS1250G1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
110 mm
Product Net Height
115.6 mm
Product Net Depth / Length
114 mm
Product Net Weight
0.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
110 mm
Package Level 1 Depth / Length
440 mm
Package Level 1 Height
165 mm
Package Level 1 Gross Weight
0.5 kg
Package Level 1 EAN
6417019414003
Mounting Type
Snap-on mounting
Special Functions
S/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3661021
Compliance and documentation streamline audits and regulatory adherence. The CMRT, REACH declaration, and RoHS information reduce certification delays and simplify supplier qualification, supporting transparent supply chains for electrical protection and fusegear. The 110 mm width, 115.6 mm height, and 114 mm depth create a compact enclosure footprint, while the 0.5 kg weight keeps installation manageable; snap-on mounting accelerates field replacements and minimizes tool requirements. For procurement teams, the 1 piece minimum order quantity and Finland origin enhance traceability and reduce lead times, supporting lean inventory and faster project readiness. Documentation like Data Sheet, Mechanical Drawings, and installation manuals accelerates engineering integration and ensures correct usage with OS1200–1250 family components. ETIM 8/9 classifications and eClass 27371392 improve catalog searchability, while the WEEE note confirms end-of-life considerations. The S/4 function supports safe, compliant operation in demanding industrial environments. This combination delivers measurable gains in efficiency, safety, and total cost of ownership for panel builders and integrators.
Get a Quick Quote for a ABB 1SCA107941R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA107941R1001?
Enquire Now
FAQs
The 1SCA107941R1001 shroud uses snap-on mounting designed for the OS1250 family. Align with the mounting grooves, apply even pressure until it snaps securely, then verify clearance around adjacent components. Ensure the enclosure has adequate space to avoid interference and check that all terminals remain accessible for maintenance.
This shroud provides RoHS information per EU Directive 2011/65/EU with Amendment 2015/863, a REACH declaration for AC switches and fusegear, and CMRT for conflict minerals reporting. These documents simplify supplier audits, help maintain regulatory alignment, and support sustainability reporting across procurement workflows.
Yes. With snap-on mounting and a compact footprint (110 mm wide, 115.6 mm high, 114 mm deep), it supports panel-mounted control and distribution boards. Its protective shroud design reduces wiring exposure and short-circuit risk, making it ideal for control cabinets, automation enclosures, and similar low-voltage switchgear installations.
The snap-on mounting minimizes tool use and labor, cutting commissioning time and field wiring risk. Its 1 piece minimum order and clear origin (Finland) improve planning and sourcing predictability, while ROHS/REACH/CMRT compliance reduces revision cycles and audit effort, delivering lower total cost of ownership over the life of a control panel.
Engineering teams can access the Data Sheet, Technical Information, Instructions and Manuals, and Mechanical Drawings for OSS1250G1S/4. These resources support correct installation, compatibility verification with OS1200–1250 components, and faster asset onboarding. Availability of Product Net dimensions and country-of-origin data further aids procurement and compliance workflows.
