ABB 1SCA108502R1001 Change-Over Switch - CE Certified
Part Number: 1SCA108502R1001
Quick Summary
ABB 1SCA108502R1001 Change-Over Switch is a 4-pole manual transfer device designed for fast source switching in electrical protection and circuit-control systems. For engineers and procurement professionals, downtime during transfer can compromise process continuity and safety. This OT160E-based switch features a 90° operating angle and a defined minimum OFF-time of 20 ms to minimize current interruption and arc duration, with Front IP20 protection in normal operation and a rugged base-mount construction for harsh environments. It carries CE declaration and RoHS compliance, along with a DNV certificate for OT16-2500_C, underscoring reliability where standards matter. The unit supports screw-terminal connections, a black handle, and a 3.915 kg footprint, enabling straightforward installation and clear documentation for traceability across the supply chain.
Product Information
Extended Description

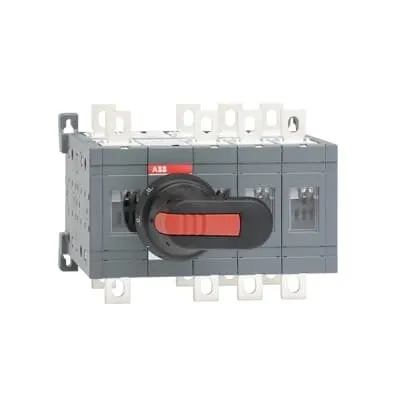

1SCA108502R1001 ABB: 160, 4 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
40bbb2e3-111b-46d5-8f27-884758056197 Finland (FI)
Simplified SCIP
68d1aec8-ff82-4453-aeb7-917f4aba6274 Germany (DE) | 40a5b98c-0ed0-4038-b2f4-be943ce0f5d5 Denmark (DK) | fe1b46b7-e1ca-42ab-8f3f-beec9be8a431 Belgium (BE) | 5fde6e5b-841a-409a-994f-516034471a56 Germany (DE) | e09cad60-870f-45cc-bada-afa36cb8fac0 Poland (PL) | cfe4f0d3-472f-4106-b1b1-48aeead5c484 France (FR) | e9a95af1-a661-4683-9795-b12efed4e6bf Italy (IT) | ff35c4fd-10cf-4ff3-9128-31af92801462 Portugal (PT) | 5c9c34d8-a2c5-4ab4-88e4-a67924490c3c Hungary (HU) | 5cea7f89-6544-44c0-9022-497547ec9007 Croatia (HR) | c78161ab-c4d3-45db-a6cb-91c78bfd7e80 Norway (NO) | a556e8be-45d5-4420-bf74-cc125e0434b3 Germany (DE) | 6305218d-6470-43d2-82ca-011ab1f5973f Sweden (SE) | d0a74f41-73b4-4759-98b7-6c2e7d22b934 Hungary (HU) | 0c0106d2-35b9-4a90-8c73-18dff017074e Spain (ES) | 3660887f-98b0-4469-a8fc-38beb021e756 Germany (DE) | cfaafe66-0443-4208-a3fb-0fd693b4ff13 Netherlands (NL) | 107fa4c7-6f7c-48ae-92a8-78ff8dd3acda Poland (PL) | 6e2a4664-40fd-4e3c-90a2-c9f5210a49f1 Greece (GR) | 28982a8a-02c7-40a3-8bad-fc1f51dcc890 Estonia (EE) | 2e152bce-8068-4528-9d01-ffafe1495f4c Czech Republic (CZ) | a3207db1-08f5-42fe-b586-7380fc6b3c64 Poland (PL) | 2196a202-86ce-4f7a-a037-3cf6ef35246d Belgium (BE) | 6211e950-8105-43d8-8c19-2138f45afa9c Sweden (SE) | 664f3875-7db6-4d75-b213-38652784d0fe Germany (DE) | 11be2f03-9cd9-43a4-b9b1-5ec915f39d44 Bulgaria (BG) | 26404e8a-681e-4b3b-8674-b303bc749e60 France (FR)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.915 kg | 8.63 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.215 kg | 9.36 lb
Package Level 1 EAN
6417019399911
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641662
Feature: Four-pole fast transition with a 90° operating angle enables rapid, synchronized switching between sources. Business impact: reduces transfer time and minimizes arc duration, increasing system availability and safety in critical power paths. Application: distribution panels and motor control centers requiring reliable bi-source transfer. Feature: Rated 160 A at 380–415 V, 500 V, and 690 V with a 12 kV impulse withstand voltage. Business impact: supports high-load applications while maintaining insulation integrity and protection margins. Application: heavy machinery and process lines where peak loads occur. Feature: Power loss of 2.4 W per pole and screw-terminal connections with 20 mm terminal width. Business impact: predictable thermal performance and robust, field-terminations ease installation and maintenance. Application: factory wiring and upgrade projects seeking stable, low-maintenance connections. Feature: Front IP20 protection and base-mount design, four-pole configuration with a right-side fourth pole. Business impact: simplifies installation inside enclosures and offers predictable space planning. Application: control panels with strict enclosure access restrictions. Feature: Compliance and guidance — CE Declaration, RoHS, REACH, CMRT and SCIP reporting, plus a DNV certificate. Business impact: lowers regulatory risk and supports sustainable sourcing initiatives. Application: procurement and compliance workflows across regulated industries.
Get a Quick Quote for a ABB 1SCA108502R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA108502R1001?
Enquire Now
FAQs
The device uses screw terminals with a 20 mm terminal width and base mounting, making it straightforward to install in standard control panels and field enclosures while ensuring secure, code-compliant connections.
Rated Operational Current AC-23A: (380–415 V) 160 A; (500 V) 160 A; (690 V) 160 A. Rated Insulation Voltage: 1000 V. Rated Impulse Withstand Voltage: 12 kV. Power loss: 2.4 W per pole.
No, the handle is not padlockable and there is no door interlocking. This should be considered in lock-out/tag-out procedures and safety planning.
The product includes CE Declaration of Conformity, RoHS compliance, REACH declaration, CMRT (Conflict Minerals Reporting Template), SCIP entries, and a DNV certificate for OT16-2500_C, supporting regulatory and sustainability requirements.
Product net dimensions are 205 mm wide, 150 mm high, and 160 mm deep with a net weight of 3.915 kg. Front protection is IP20, suitable for frontal mounting inside protected enclosures.
