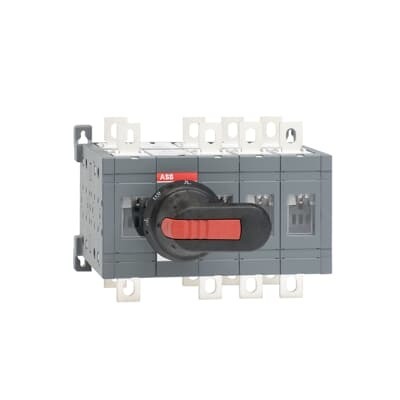

ABB 1SCA108504R1001 Change-Over Switch - 4P 160A
Part Number: 1SCA108504R1001
Quick Summary
ABB 1SCA108504R1001 Change-Over Switch provides four-pole, make-before-break switching for reliable high-power panel applications. In practice, engineers contend with transfer arc, limited enclosure space, and the need to avoid outages during switching. This device delivers a minimum 20 ms overlap between positions I and II, along with a robust 160 A rated current and 12 kV impulse withstand. Certifications matter for compliance and field acceptance, and this model carries CE conformity, RoHS compliance, and a DNV certificate. With base mounting, screw terminals, and a compact footprint, it minimizes panel depth while supporting dependable control and protection schemes.
Product Information
Extended Description
1SCA108504R1001 ABB: 160, 4 pole manual change-over switch operating on closed transition principle. i.e. make-before-break operation without OFF-position. Between positions I and II, there is a position I+II where both switches are closed simultaneously. The overlapping time when both contacts are closed is minimum 20 ms. Operating angle of the handle is 90°. Including a black plastic IP65 I - I+II - II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.8 kg | 8.38 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
170 mm | 6.69 in
Package Level 1 Depth / Length
270 mm | 10.63 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.1 kg | 9.04 lb
Package Level 1 EAN
6417019399379
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Closed
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160-250_CL
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641604
Feature: Four-pole, 160 A rated change-over switch with a 1000 V main circuit rating and 12 kV impulse withstand. Business Impact: Enables safe, reliable high-power switching in compact switchgear and control panels, reducing downtime and enabling consistent power transfer. Application: Suitable for control cabinets and power distribution panels requiring robust, multi-pole switching with ample voltage and current headroom. Feature: Make-before-break with a defined 20 ms overlap between I and II (I+II) positions. Business Impact: Minimizes disruption and arcing during transfer, improving equipment protection and process uptime. Application: Critical automation lines and conveyors where continuous power is essential. Feature: 90° pistol-type handle with included shaft and base mounting. Business Impact: Improves operator ergonomics and fast, repeatable operation in tight cabinet spaces. Application: Front-operated control panels and machine interfaces where quick manual changes are needed. Feature: Screw terminals with recommended tightening torque of 15–22 N·m. Business Impact: Ensures secure, maintenance-friendly connections that resist vibration and thermal cycling. Application: Industrial panels subjected to real-world environmental conditions. Feature: Front IP20 protection rating and 3 Pollution Degree rating. Business Impact: Provides predictable protection in typical indoor industrial environments, reducing ingress risk. Application: Panel-mounted switches in electrical rooms and machine controller cabinets. Feature: Compliance packaging includes CE Declaration of Conformity, RoHS, and DNV certification. Business Impact: Supports regulatory acceptance, supplier audits, and lifecycle trust. Application: Industries with strict regulatory requirements and quality assurance programs.
Get a Quick Quote for a ABB 1SCA108504R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA108504R1001?
Enquire Now
FAQs
This unit supports base mounting with screw terminals, a 4P configuration, and top-in bottom-out terminal positioning. It is designed for straightforward panel integration, with a recommended tightening torque of 15–22 N·m to ensure secure, vibration-resistant connections in industrial cabinets.
The switch is rated for 160 A at main circuit voltage up to 1000 V, with a rated impulse withstand voltage of 12 kV and a short-time withstand current of 8 kA for 1 s. It features make-before-break operation with a 20 ms overlap, four poles, and a front IP20 protection rating, suitable for rugged control panels.
Yes. Its 4P 160 A rating, make-before-break switching, and 20 ms transfer overlap minimize outages and arcing in production lines. The device supports base mounting and screw-terminals for reliable installation in compact control cabinets, making it ideal for machine control and power distribution in manufacturing environments.
The unit carries a CE Declaration of Conformity, RoHS compliance, and a DNV certificate, reflecting compliance with European and industry standards. ETIM EC000216 classification and eClass V11.1 metadata are also associated, aiding eligibility for procurement catalogs and quality audits.
With a robust mechanical design, screw-terminal connections, and a simple base-mount installation, maintenance needs are limited to periodic torque checks and basic cleaning. The improved transfer reliability reduces downtime during transitions, supporting lower total cost of ownership and higher overall equipment effectiveness in high-demand automation environments.
