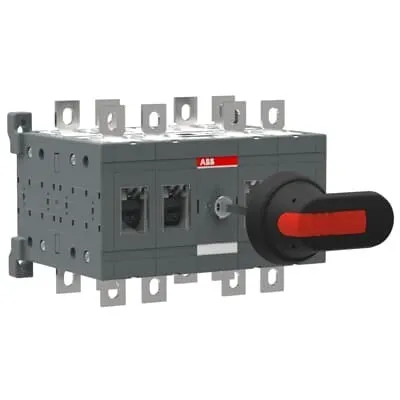

ABB 1SCA108510R1001 Change-Over Switch - 160 A CE
Part Number: 1SCA108510R1001
Quick Summary
ABB Change-Over Switch 1SCA108510R1001 provides fast, four-pole transfer for safe source switching in electrical panels. This design tackles the common challenge of arcing and downtime during phase changeovers by delivering a controlled 90-degree operating action and a minimum 20 ms off-time. With CE conformity and DNV certification, plus RoHS and CMRT compliance, it fits rigorous industrial standards. The enclosure offers Front IP20 protection, while the handle plus shaft option supports straightforward panel installation and manual operation. For OEMs and maintenance teams, this switch combines robust mechanical life, straightforward wiring with 20 mm screw terminals, and a base-mount footprint that helps reduce panel depth and assembly time. In short, it aligns with reliability, safety, and compliance goals while enabling efficient panel design.
Product Information
Extended Description
1SCA108510R1001 ABB: 160, 4 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.915 kg | 8.63 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.215 kg | 9.36 lb
Package Level 1 EAN
6417019399850
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole fast-transition design enables simultaneous switching across all poles. Business Impact: Reduces transfer time and wear, improving system availability and extending switchgear life. Application: Mains distribution and machine control panels that require quick, coordinated source changes. Feature: 160 A rated current (Ie/Ith) with 1000 V insulation and 12 kV impulse withstand. Business Impact: Supports high-power loads with robust transient protection, reducing outage risk. Application: Heavy-duty industrial feeders and fault-clearing applications in harsh environments. Feature: Front IP20 protection and base mounting with screw terminals (20 mm width). Business Impact: Easy integration into standard enclosures, simplified wiring, and reliable mechanical performance. Application: Control cabinets and panel assemblies where space and wiring clarity matter. Feature: 90-degree operating angle and minimum OFF-time of 20 ms. Business Impact: Faster, safer transfer, reducing arc exposure and downtime during source changes. Application: Fast-changeover scenarios in process lines and automated equipment. Feature: Power loss of 2.4 W per pole and handle/shaft included. Business Impact: Predictable cooling requirements and straightforward manual operation, lowering maintenance complexity. Application: Electrical protection and circuit control in compact panel formats. Feature: 4P configuration with right-side fourth pole position and non-padlockable handle. Business Impact: Simplified installation and clear manual operation without doors interlocking, improving serviceability. Application: Industrial switchgear where immediate accessibility and straightforward operation are valued.
Get a Quick Quote for a ABB 1SCA108510R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA108510R1001?
Enquire Now
FAQs
The OT160E family uses base mounting with screw terminals (20 mm width). It supports a top In - bottom Out or bottom In - top Out terminal arrangement and requires tightening torque of 15–22 N·m per pole. The 4P configuration fits standard control panels and enables straightforward wiring, simplifying panel integration and reducing depth requirements.
Key ratings include a Conventional Free-air Thermal Current Ith of 160 A and Rated Operational Current Ie of up to 160 A across 380–415 V, 500 V, and 690 V. It has a Rated Impulse Withstand Voltage Uimp of 12 kV, Ui of 1000 V, a 90-degree operating angle, and a minimum OFF-time of 20 ms between transfer directions, with 2.4 W power loss per pole.
Yes. Its four-pole fast-transition design supports safe source transfer in control circuits, reducing arc exposure and downtime. The base-mount footprint, Front IP20 protection, and screw-terminal wiring simplify installation in standard panels, while the 4P configuration accommodates motor feeders and transformer connections, enabling reliable control and isolation within compact spaces.
The switch carries CE Declaration of Conformity and a DNV certificate, along with RoHS compliance and CMRT data. It is classified under ETIM EC000216 for switch disconnectors and aligns with WEEE Category 5, ensuring regulatory compliance, environmental responsibility, and traceability across supply chains.
The 160 A rating with fast 90-degree action minimizes wear from frequent switching, reducing downtime and maintenance costs. Low per-pole power loss (2.4 W) supports energy efficiency, while base mounting and screw terminals streamline installation and service in panel assemblies, delivering faster ROI through improved reliability and faster commissioning.
