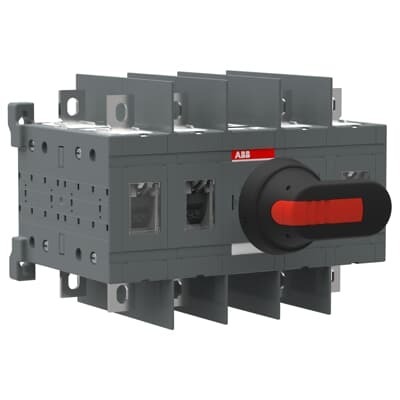

ABB 1SCA108518R1001 Change-Over Switch - IP20 Front
Part Number: 1SCA108518R1001
Quick Summary
ABB 1SCA108518R1001 Change-Over Switch provides fast transfer for 4-pole power circuits in industrial control panels. In critical production lines, even microseconds of OFF-time can trigger alarms, extend downtime, and disrupt process safety. The device carries CE Declaration of Conformity, a DNV certification, RoHS compliance, and CMRT documentation to support global procurement and regulatory adherence. Designed for panel builders and OEMs, it combines reliable isolation with straightforward base mounting, screw-terminal wiring, and a robust black IP20 front with a 4P configuration. This combination translates to predictable performance, easier compliance, and reduced field rework across automated plant environments.
Product Information
Extended Description
1SCA108518R1001 ABB: 160, 4 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm | 9.33 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.95 kg | 8.71 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
310 mm | 12.2 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.25 kg | 9.44 lb
Package Level 1 EAN
6417019399829
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Wide phase distance
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole fast transition with a 160 A rating and a minimum OFF-time of 20 ms; Business Impact: Enables near-seamless phase transfer, reducing cross-current events and downtime; Application: Used in high-availability control panels where rapid switching is essential. Feature: 4P configuration with top-in, bottom-out or bottom-in, top-out terminal arrangement and 20 mm terminal width; Business Impact: Streamlines wiring, improves reliability, and simplifies maintenance in dense panel layouts; Application: Suitable for machine controls and switchgear assemblies employing screw terminals. Feature: Front IP20 protection with a base mounting design and a black IP65 pistol-type handle option; Business Impact: Enhances operator safety and simplifies installation in indoor environments with rugged handling requirements; Application: OEM panel builds and retrofit projects. Feature: Comprehensive material and compliance documentation including CMRT, Reach, RoHS, and CE declarations; Business Impact: Eases supplier audits and regulatory approvals, accelerating time-to-quote; Application: Global procurement for multi-site manufacturing. Feature: Rated operational voltage up to 1000 V and 160 A across multiple voltage classes; Business Impact: Supports diverse industrial power distribution scenarios while maintaining isolation integrity; Application: Industrial automation and distribution panels, especially for high-voltage safety zones.
