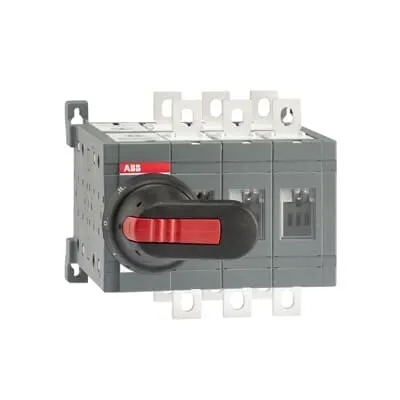

ABB 1SCA108520R1001 OT200E03CFP Change-Over Switch - CE
Part Number: 1SCA108520R1001
Quick Summary
ABB 1SCA108520R1001 OT200E03CFP Change-Over Switch is a fast, reliable 3-pole transfer solution for industrial power circuits. Engineers often struggle with downtime and arcing during source changes, which can impact throughput and equipment life. This unit carries CE conformity with RoHS compliance and Reach declarations, and features a 200 A current rating, 1000 V insulation voltage, and a 12 kV impulse withstand for robust protection. Base mounting with screw terminals and an included pistol-style handle streamline installation, while regulatory compliance supports predictable procurement and safer, longer service intervals. For panel builders and integrators, the compact footprint and standard terminal geometry simplify wiring, reduce cabinet depth, and minimize custom machining, delivering measurable uptime and cost savings over the life of the installation.
Product Information
Extended Description
1SCA108520R1001 ABB: 200, 3 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm | 6.69 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.245 kg | 7.15 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.515 kg | 7.8 lb
Package Level 1 EAN
6417019399720
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641664
Feature: 3-pole fast-transition design with a 90° operating angle and a minimum OFF-time of 20 ms between transfers. Business Impact: Enables rapid, controlled switching with reduced arc duration, enhancing equipment reliability and lowering maintenance costs. Application: Ideal for 380–415 V networks in production lines, conveyors, and machine tools. Feature: 200 A rated current with 1000 V insulation and 12 kV impulse withstand. Business Impact: Supports high-power load switching with robust surge protection, improving panel safety margins and compliance. Application: Suitable for heavy-duty motor control centers and electrical distribution in harsh industrial environments. Feature: Base mounting, screw terminals, 20 mm terminal width, and 15–22 N·m tightening torque. Business Impact: Simplifies installation, reduces cabinet modification, and ensures repeatable, vibration-resistant connections. Application: Fits standard panel cutouts and wiring schemes in OEM builds. Feature: Front IP20 protection and documented RoHS/REACH compliance. Business Impact: Delivers predictable protection class and regulatory adherence, lowering risk in regulated markets. Application: Used in control panels with exposure to domestic-level dust and routine handling. Feature: Included handle and shaft, three-pole configuration, and clear line-terminal orientation. Business Impact: Enhances safety during operation and maintenance while simplifying wiring layouts. Application: Supports quick field servicing in automated systems and machine cells.
Get a Quick Quote for a ABB 1SCA108520R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA108520R1001?
Enquire Now
FAQs
Yes. The OT200E03CFP change-over switch is specified for mains in the 380–415 V range with a 200 A current rating, making it suitable for power distribution in typical industrial applications such as machine tools and conveyors.
The unit offers a fast transition with a 90° operating angle and a minimum OFF-time of 20 ms between transfer states, reducing arc duration and improving process continuity during source changes.
It uses screw terminals with a 20 mm width and is designed for base mounting. The tightening torque is specified at 15–22 N·m, and the assembly includes a shaft and a black pistol-type handle for easy operation, simplifying panel integration.
Key certifications include CE conformity with RoHS and Reach declarations. The product also references CMRT, REACH, and RoHS information, plus other compliance documents such as the DEclaration of Conformity for related OT-series units.
Common in control panels for machine tools, conveyors, and power-distribution assemblies, it enables rapid, reliable source changes, reducing downtime and maintenance costs while meeting regulatory requirements, which improves total cost of ownership over the equipment lifecycle.
