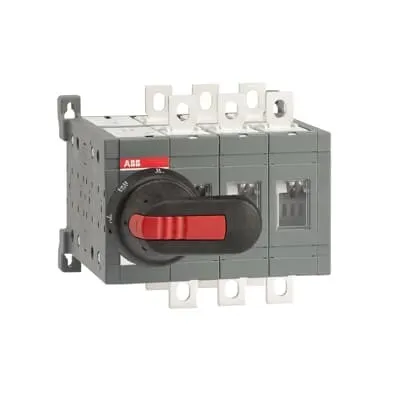

ABB 1SCA108522R1001 Change-over Switch - 3P 200A CE
Part Number: 1SCA108522R1001
Quick Summary
1SCA108522R1001 is a 3-pole manual change-over switch designed for reliable source transfer in industrial control panels. In the field, downtime during switching and make-before-break overlap can spike maintenance costs and risk equipment damage. This device carries CE conformity, along with DNV certification and RoHS/REACH compliance, ensuring regulatory readiness across critical markets. Designed for base mounting with screw terminals and a front-operated handle, it delivers straightforward installation, predictable transfer performance, and long service life in demanding environments. Its 200 A current rating and 1000 V insulation support scalable control of heavy-duty systems, while the overall design simplifies procurement and reduces total cost of ownership for panel builders and integrators.
Product Information
Extended Description
1SCA108522R1001 ABB: 200, 3 pole manual change-over switch operating on closed transition principle. i.e. make-before-break operation without OFF-position. Between positions I and II, there is a position I+II where both switches are closed simultaneously. The overlapping time when both contacts are closed is minimum 20 ms. Operating angle of the handle is 90°. Including a black plastic IP65 I - I+II - II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
71bd8cb9-dd9a-4524-8ef8-38c260df237a Finland (FI)
Simplified SCIP
5cbb9209-e48c-4441-baa3-dbe9582e622d Germany (DE) | df820b7c-1e7f-436c-b92a-c500dcd05194 Portugal (PT) | dad8fbc3-788e-405a-ac73-fdd9818447b5 Greece (GR) | 8edbce29-88c9-4c18-b414-29d86cf07e56 Czech Republic (CZ) | ae36b616-9bad-4f43-90bf-577e23e513b7 Poland (PL) | cb9ffce0-41b0-45ee-b79f-e47eca33c238 Croatia (HR) | 53392f96-e47e-4789-aacf-61f486f1231c Estonia (EE) | 2af7e1ad-c678-4210-994b-c3ff08689eda Hungary (HU) | 4d10a04c-3203-40a2-af02-85f15abe95cb Belgium (BE) | 80b8c483-a5fc-468d-b761-43b334168fc4 Spain (ES) | 6a506717-0b01-4c4b-91d6-92666e46d56f Poland (PL) | 7ce4f98f-755d-4b02-9f53-e9e70b857f97 Sweden (SE) | 1ac7106d-fcf0-44c9-95a8-1f30196015ca Bulgaria (BG) | 6ce35cbf-3fc2-441d-beda-b69175d8d92a France (FR) | 629775bc-29ff-44ef-9128-b0957d78304b Sweden (SE) | fcfd5658-c21b-4991-af94-e4dcab983ce2 Hungary (HU) | 05e82715-f8da-4929-8e12-cecac809f190 France (FR) | 46f5bea9-fd2c-4f18-855b-0c932d473246 Germany (DE) | 4546ed73-e628-462d-9afe-280765e0539f Germany (DE) | ef5358dc-6d8d-4154-a99a-b3d71fce7ed7 Denmark (DK) | 8136e8a2-d231-4f24-96b7-d57cd8f90462 Poland (PL) | 72979d92-11f3-49e1-a342-41409b51a0f2 Norway (NO) | cc8ff171-efce-4cf4-ae5b-1b0c386ddedc Belgium (BE) | 3d0d4078-8693-4503-b1de-8b9ce76d54f6 Italy (IT) | 40ece189-c710-4e8e-81bf-bd0c4ff57625 Netherlands (NL) | 03bb8225-5fdc-4de6-aed1-7edadb128b59 Germany (DE) | 4707e653-5b22-4646-b77c-32bcb208ec9d Germany (DE)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm | 6.69 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.1 kg | 6.83 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
245 mm | 9.65 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.3 kg | 7.28 lb
Package Level 1 EAN
6417019399539
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Closed
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160-250_CL
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641606
Feature: Three-pole construction with 200 A rating and closed transition with a 20 ms overlap. Business Impact: Safe, reliable transfer between sources minimizes cross-conduction and downtime, increasing line availability in critical processes. Application: Emergency power transfer and standby source switching in industrial control panels. Feature: Base mounting with screw terminals and 170 mm x 150 mm footprint. Business Impact: Streamlined installation and reduced wiring errors, cutting commissioning time and field labor costs. Application: New panel builds and retrofit projects where space and wiring efficiency matter. Feature: Front IP20 protection and rugged handle with 90° operation. Business Impact: Improved operator ergonomics and protection in standard environments, lowering operator risk and maintenance intervals. Application: Front-operated control stations and access-controlled switchgear. Feature: 12 kV rated impulse withstand and 1000 V rated insulation. Business Impact: Enhanced electrical robustness for medium-voltage distribution, increasing equipment longevity and compliance confidence. Application: Power distribution in motor control centers and switchgear assemblies. Feature: Non padlockable handle and no door interlocking by design. Business Impact: Simplified maintenance workflows and quick, predictable access for technicians, reducing downtime during servicing. Application: Routine inspection and replacement in controlled facilities. Feature: Comprehensive documentation and environmental compliance including RoHS, REACH, and SCIP references. Business Impact: Facilitates regulatory approvals and supplier sustainability goals, supporting procurement with auditable compliance. Application: Global sourcing and multi-site deployment across regulated markets.
