ABB Switch-Disconnectors 1SCA108526R1001 - IEC 60947-3
Part Number: 1SCA108526R1001
Quick Summary
ABB Switch-Disconnectors 1SCA108526R1001 provide safe, rapid isolation for large electrical installations such as switchgear and motor control centers. Maintenance teams often struggle with downtime and safety during disconnection without sacrificing reliability. It complies with IEC 60947-3, carries a CE declaration of conformity, and offers front IP00 protection for dry environments. Designed for high-current environments, it delivers predictable performance, long mechanical durability, and straightforward installation, helping engineers minimize downtime and improve overall uptime. With 6 poles and a lockable handle, it's well suited for safe, compliant de-energization in demanding automation applications. This combination supports reliable protection in electrical distribution and automation systems.
Product Information
Extended Description

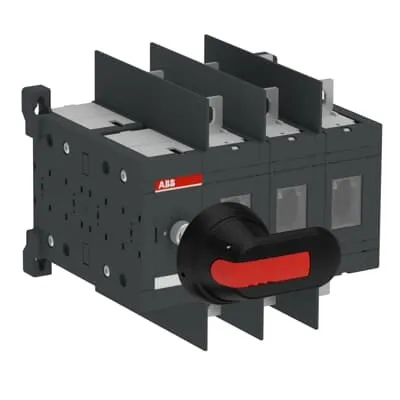

1SCA108526R1001 ABB: OT200E03WDP SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Manual 6- and 8-pole switches OT_D (EN)
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm
Product Net Height
150 mm
Product Net Depth / Length
159.5 mm
Product Net Weight
3.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
186 mm
Package Level 1 Depth / Length
300 mm
Package Level 1 Height
185 mm
Package Level 1 Gross Weight
3.6 kg
Package Level 1 EAN
6417019406824
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Number of Poles
6P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current DC-21B (Ie)
(1000 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
The 6-pole configuration consolidates control and isolation for large feeders, reducing panel footprint and wiring complexity while maintaining robust current handling (200 A per pole). This translates to a simpler, more reliable installation with fewer potential fault points and easier maintenance in switchgear and motor control centers. The lockable handle enhances safety during service work, preventing inadvertent re-energization and improving overall maintenance productivity in process lines and automated plants. Lug terminals with a tightening torque of 15–22 N·m ensure a secure, vibration-resistant connection, reducing resistance heat and electrical noise in harsh industrial environments. Compliance to IEC 60947-3 and a CE Declaration of Conformity deliver regulatory confidence for panel builders and end users alike, while a front IP00 rating supports dry-environment applications. The device’s 20000 mechanical durability cycles support long service life in high-usage control panels, delivering predictable total cost of ownership. Power loss remains at 4.0 W per pole, helping engineers model energy efficiency and thermal management in compact enclosures. Key current and voltage ratings (Ie 200 A, Ui 1000 V, Uimp 12 kV) enable confident integration into rated systems, including motor starters and energy-intensive processes.
Get a Quick Quote for a ABB 1SCA108526R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA108526R1001?
Enquire Now
FAQs
Yes. The unit is rated for main circuit voltages up to 1000 V and supports three-phase systems up to 690 V. It uses lug terminals for secure wiring and a 6P configuration that matches common switchgear footprints. Mounting is straightforward in standard electrical cabinets, with space for wiring access and a lockable handle for safe maintenance.
Key ratings include Ie of 200 A per pole, Ui of 1000 V, Uimp of 12 kV, Icm up to 30 kA, and Icw for 1 s at 8 kA. The device is designed for IEC 60947-3 compliance and supports multi-pole isolation with robust short-circuit withstand and controlled power loss (4.0 W per pole).
It is ideal for switchgear, motor control centers, and process-line installations in heavy industry. The 6P, high-current design suits main feeders and critical isolation points, enabling safe maintenance and rapid de-energization in automated plants with demanding uptime requirements.
The product complies with IEC 60947-3 and carries a CE Declaration of Conformity. Environmental and material declarations (EPD/CMRT/RoHS) are supported, aligning with RoHS directives and CMRT reporting expectations for modern electrical assemblies.
With a mechanical durability of 20,000 cycles and a lockable safety feature, maintenance downtime is reduced and operator safety is increased. Lug terminals and a defined tightening range enable reliable, repeatable field connections, lowering service calls and improving total cost of ownership in high-use control panels.
