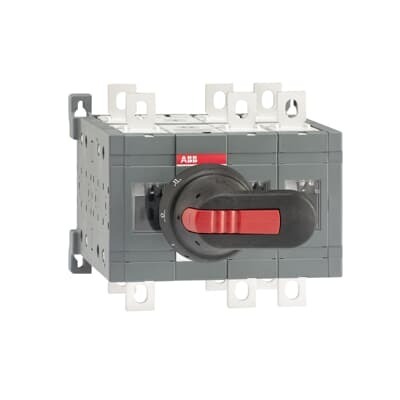

ABB Change-Over Switch 1SCA108535R1001 - Fast 90°
Part Number: 1SCA108535R1001
Quick Summary
ABB Change-Over Switch 1SCA108535R1001 is a 200 A manual transfer device used to switch between supply sources in electrical distribution. Operators need fast, reliable transfer with minimal downtime and no risk of premature switching. It carries CE conformity, front IP20 protection, and a DNV certificate, with RoHS and Reach declarations supporting global compliance. Designed for ABB EcoSolutions, it pairs a compact 3P design with a robust 200 A rating and 90° operating mechanism. For procurement and maintenance teams, the base mounting, included handle and shaft simplify installation in control cabinets. Its fast transition capability minimizes transfer time, supporting lean manufacturing targets and uptime guarantees. With RoHS, Reach and CMRT compliance, it aligns with global sourcing policies and compliance audits.
Product Information
Extended Description
1SCA108535R1001 ABB: 200, 3 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm | 6.69 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.245 kg | 7.15 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.515 kg | 7.8 lb
Package Level 1 EAN
6417019399966
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641665
Feature: 3P fast-transition design enables rapid source switching in electrical distribution. Benefit: minimizes downtime and reduces risk of supply interruptions, improving line availability in manufacturing and critical facilities. Application: ideal for data centers and production lines needing predictable, fast transfer between feeders. Feature: 200 A rated current and 1000 V insulation voltage. Benefit: supports high-load applications while maintaining safe isolation and system reliability. Application: large motor feeds and switchgear assemblies where robust current handling is required. Feature: 90° operating angle with a compact base-mount form. Benefit: simplifies installation and space planning in control panels, lowering installation time and costs. Application: panel builders integrating with ABB EcoSolutions products. Feature: Front IP20 protection and a black IP65 pistol-type handle. Benefit: ensures operator safety and reliable front operation in standard indoor environments. Application: front-access installations and maintenance routines. Feature: Screw terminals with 20 mm terminal width and torque specification 15–22 N·m. Benefit: secure, vibration-resistant connections and repeatable assembly. Application: field installs and retrofit projects requiring sturdy cable terminations. Feature: Included shaft and bolt set; base mounting. Benefit: reduces component counts and accelerates commissioning. Application: factory floor MCCs and energy distribution boards. Feature: RoHS, Reach, CMRT, CE declarations, and a DNV certificate. Benefit: supports global compliance and audit readiness. Application: procurement-ready for multinational projects with strict environmental and safety standards.
