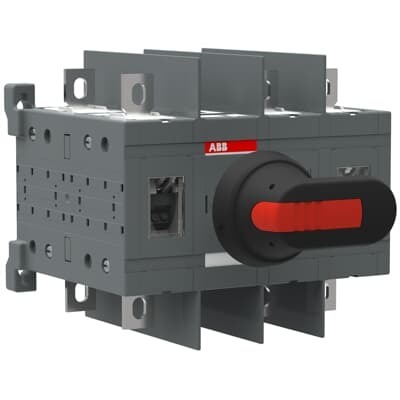

ABB 1SCA108539R1001 Change-Over Switch - 12 kV Impulse
Part Number: 1SCA108539R1001
Quick Summary
ABB 1SCA108539R1001 Change-Over Switch is a high-current three-pole manual transfer device designed for fast source switching in industrial power panels. In real-world manufacturing environments, even small transfer delays can trigger downtime and arc energy that risk equipment and personnel. This unit is CE-conformant and RoHS/Reach compliant, with a front IP20 protection rating and an insulation voltage of 1000 V, plus a 12 kV impulse withstand specification for enhanced safety. Its 200 A rating across multi-voltage ranges makes it suitable for motor feeders, backup power paths, and critical loads. The combination of robust mechanical design, straightforward base mounting, and screw-terminal connectivity supports quick installation and reliable field service, delivering measurable uptime improvements and lower maintenance costs.
Product Information
Extended Description
1SCA108539R1001 ABB: 200, 3 pole fast transition manual change-over switch. Operating angle 90° to achieve fast switching. Minimum OFF-time between transfer from I-II or II-I is 20 ms. Including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle not padlockable and no door interlocking.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm | 7.64 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.6 kg | 7.94 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
260 mm | 10.24 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.6 kg | 7.99 lb
Package Level 1 EAN
6417019399935
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Wide phase distance
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Fast
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Three-pole design with fast transition enables rapid source change with minimized arc energy. Benefit: Reduces transfer time and electrical stress on connected equipment, improving uptime in critical loads and backup power paths. Application: Main switchgear and plant-wide transfer applications benefit from reliable 3P control. Feature: Ith 200 A, Ui 1000 V, Uimp 12 kV, with 90° operating angle. Benefit: Supports large motors and high-power feeders while withstanding surge and high-potential events, reducing the need for extra protective devices. Application: Heavy-duty motor feeders and high-voltage control circuits in process plants. Feature: Front IP20 protection and base mounting with screw terminals. Benefit: Safe, easy installation inside control cabinets with secure connections and straightforward maintenance. Application: Panel builders prioritizing compact footprint and serviceability in automation cabinets. Feature: 3P configuration with screw terminals and 20 mm terminal width; Tightening torque 15–22 N·m. Benefit: Consistent electrical integrity and robust field connections, minimizing maintenance reworks. Application: Factory automation and industrial energy management systems. Feature: Compliance and certifications including CE declarations, RoHS/Reach, and DNV reference. Benefit: Streamlined regulatory approvals and risk mitigation for global deployments. Application: Global rollouts of critical power switching where traceability matters.
