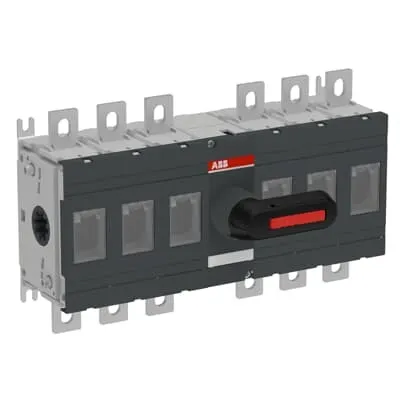

ABB 1SCA112975R1001 SWITCH-DISCONNECTOR - IEC 60947-3
Part Number: 1SCA112975R1001
Quick Summary
ABB 1SCA112975R1001 switch-disconnector protects main circuits in industrial electrical installations. When retrofitting switchgear, space constraints and reliability concerns demand rugged, proven hardware. It meets IEC 60947-3, CE declarations, and carries third‑party certification from DNV GL, supported by environmental data (EPD/PEP) and RoHS compliance. In addition, it features lug terminals, base mounting, and front operation for quick, secure installation. These design choices translate into faster commissioning, reduced maintenance, and longer service life in demanding environments.
Product Information
Extended Description
1SCA112975R1001 ABB: OT200E33K SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
255.5 mm
Product Net Height
150 mm
Product Net Depth / Length
107 mm
Product Net Weight
2.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
260 mm | 10.2 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
190 mm | 7.5 in
Package Level 1 Gross Weight
2.79 kg | 6.1 lb
Package Level 1 EAN
6417019453194
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
6P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie)
(1000 V) 200 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
1SCC301162D2702
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Six-pole design with front operation enables isolation of multiple circuits in a single unit, while the direct-mounted pistol-style handle and built-in lock support safe, compliant shutoff in daily maintenance. The device delivers 200 A conventional thermal current and 1000 V main circuit voltage, with a 12 kV impulse withstand. This combination reduces the risk of arc flash during switching and supports reliable protection of high-energy loads. Rated short-circuit making capacity of 30 kA and short-time withstand current of 8 kA (1 s) provide robust fault clearing in demanding environments like metalworking or process industries. Durable construction includes 20000 mechanical durability cycles and 15–22 N·m tightening torque for dependable conductor connections; lug terminals and base mounting streamline installation. Compact dimensions (255.5 mm width, 150 mm height, 107 mm depth) and weight of 2.5 kg simplify panel layouts, while RoHS, CMRT, and EPD declarations support compliance and sustainability goals.
Get a Quick Quote for a ABB 1SCA112975R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA112975R1001?
Enquire Now
FAQs
Plan front accessibility for 255.5 mm wide equipment and ensure base mounting with a stable panel cutout. Provide adequate space to access lug terminals and the front-operable handle for safe operation. The unit's IP00 front protection requires clean, dry mounting environments and unobstructed access for maintenance and inspection.
The device supports a 1000 V main circuit voltage, 200 A conventional thermal current (I_the), 12 kV rated impulse withstand voltage, 30 kA rated short-circuit making capacity (I_cm), and 8 kA short-time withstand current for 1 s (I_cw). It also uses lug terminals and is designed for six poles (6P).
Yes. It is designed for main circuits up to 1000 V, with IEC 60947-3 compliance and CE declarations. The device also carries third-party certification from DNV GL and aligns with RoHS, CMRT, and environmental declarations, making it suitable for compliant industrial switchgear installations.
Product net width 255.5 mm, net height 150 mm, net depth 107 mm, and net weight 2.5 kg. Packaging details show box-level units, with a gross packaging weight of 2.79 kg and dimensions that fit compact panel layouts for efficient logistics.
With a mechanical durability rating of 20,000 cycles and robust tightening torque (15–22 N·m), the switch-disconnector provides long service life and reliable conductor connections. These attributes reduce maintenance frequency, improve fault isolation speed, and help lower total cost of ownership in demanding industrial environments.
