ABB 1SCA113954R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA113954R1001
Quick Summary
ABB 1SCA113954R1001 Switch-Disconnectors provide safe, one-pole isolation for electrical panels in industrial automation. Engineers often contend with tight spaces, lengthy wiring runs, and mounting challenges that complicate safe maintenance. This unit aligns with IEC 60947-3, CE declarations of conformity, and RoHS/REACH restrictions, helping you meet regulatory audits. Base mounting and a dedicated handle/shaft arrangement streamline installation, while lug-terminal wiring supports quick, secure connections. In demanding environments, ABB EcoSolutions documentation and environmental data further reduce lifecycle risk and total cost of ownership.
Product Information
Extended Description

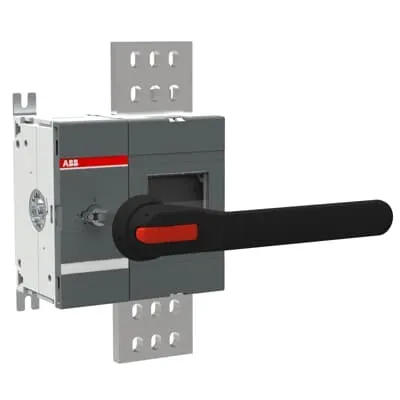

1SCA113954R1001 ABB: 1-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT2000-2500 Disassembly Instructions
Environmental Information
PEI OT2000-2500
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT2000-OT2500
Mechanical Drawings
OT2000-2500E01, dwg-file | OT2000-2500E01, dxf-file | OT2500E01.igs
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Degree of Protection
Front IP00
Environmental Information
PEI OT2000-2500
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
220.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
10.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
250 mm
Package Level 1 Depth / Length
400 mm
Package Level 1 Height
225 mm
Package Level 1 Gross Weight
11.2 kg
Package Level 1 EAN
6417019465913
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2500 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
1P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 85 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2500 A | (500 V) 2500 A | (690 V) 2500 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2500 A | (500 V) 2500 A | (690 V) 2500 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 01 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT1000-2500
Declaration of Conformity - CE
Declaration of Conformity / OT2000-2500E
DNV GL Certificate
1SCC301184D0203
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: One-pole, front-operated design with base mounting. Business Impact: Enables rapid isolation in compact control panels, reducing downtime and installation time. Application: Panel build-outs in factory automation. Feature: Lug terminals for secure wiring. Business Impact: Minimizes loose connections, improves long-term reliability and reduces maintenance visits. Application: Heavy-current main circuit distribution. Feature: High current capacity and insulation rating. Business Impact: Supports large drives and motors with safe fault handling and reduced protection coordination challenges. Application: Main circuit protection in automation systems. Feature: Rated impulse withstand voltage and short-circuit capacity. Business Impact: Enhanced fault tolerance and operator protection in fault events. Application: Power distribution and safety-critical feeders. Feature: Mechanical durability and defined torque range. Business Impact: Longer service life, predictable installation, and lower rework costs. Application: Frequent operation in process lines and switchgear assemblies. Feature: Comprehensive compliance and OT2000-OT2500 compatibility. Business Impact: Streamlined approvals, access to extensive documentation, and easier procurement. Application: Regulated industries and OEM panel builders.
Get a Quick Quote for a ABB 1SCA113954R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA113954R1001?
Enquire Now
FAQs
Install with the device mounted on a stable base in the control panel. Ensure lug terminals are clean and tightened to 50–75 N·m per IEC 60947-1. Align the front-operated mechanism for accessible operation and verify the line terminal orientation (Top In - Bottom Out) before energizing.
It is a 1P switch-disconnector with 1000 V rated insulation, 2500 A rated operational current, and 12 kV rated impulse withstand voltage. It supports I e values of 2500 A at 380–415 V, 500 V, and 690 V, with a short-circuit making capacity of 176 kA at 690 V and cw of 55 kA for 1 s.
Yes. The device complies with IEC 60947-3 and carries CE declarations of conformity. It also adheres to RoHS and REACH requirements, with supporting CMRT and TSCA disclosures where applicable for global supply chains.
The unit uses lug terminals for high-current connections. Wiring should follow the top-in, bottom-out configuration, with tightening torque between 50 and 75 N·m. Use the included handle/shaft for front operation and ensure secure mechanical and electrical connections before testing.
Yes, it is compatible with the OT2000-2500 range. Available documentation includes disassembly instructions, mechanical drawings (dwg/dxf/igs), and environmental/epd data under ABB EcoSolutions, helping with lifecycle planning and regulatory compliance.
