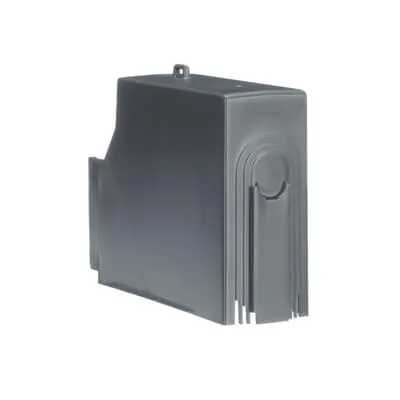

ABB 1SCA114764R1001 OSS160GG1L/3 TERMINAL SHROUD - RoHS
Part Number: 1SCA114764R1001
Quick Summary
ABB 1SCA114764R1001 OSS160GG1L/3 terminal shroud protects live terminals while enabling safe, reliable wiring in low-voltage switchgear. This accessory helps technicians avoid exposed conductors and wiring misroutes, reducing field rework and safety incidents. It carries RoHS compliance under EU directive 2011/65/EU with Amendment 2015/863, along with a Reach Declaration and CMRT documentation for responsible sourcing. The product also aligns with OS and Fusegear data sheets, supporting a streamlined bill of materials and standardized installs. For engineers and procurement teams, this translates to faster assembly, easier compliance verification, and consistent performance across panel builds and maintenance cycles.
Product Information
Extended Description
1SCA114764R1001 ABB: OSS160GG1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSS160GG1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
33.4 mm
Product Net Height
101.4 mm
Product Net Depth / Length
77 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
35 mm
Package Level 1 Depth / Length
240 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019471907
Mounting Type
Snap-on mounting
Special Functions
L/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3600140
E-Number (Sweden)
3171035
Feature: Snap-on mounting allows rapid, tool-free installation. Business Impact: Reduces install time by minutes per panel and lowers labour costs while maintaining secure mechanical engagement. Application: Fits into OS series LV switchgear enclosures where quick retrofits are common. Feature: L/3 special function for restricted access applications. Business Impact: Provides targeted terminal access control, improving safety and fault isolation. Application: Suitable for motor control panels requiring controlled terminal exposure. Feature: RoHS compliance under EU directives plus Reach Declaration. Business Impact: Eases regulatory audits and supplier qualification, reducing compliance risk. Application: Ideal for multinational panel projects with strict material restrictions. Feature: CMRT documentation. Business Impact: Supports supply chain transparency and responsible sourcing programs. Application: Useful for audits and procurementReviews in regulated industries. Feature: Compatible with OS switches and fusegear data sheet recommendations. Business Impact: Simplifies BOM management and reduces part variety, leading to inventory savings. Application: Useful in standardizing LV switchgear assemblies across facilities. Feature: Precise dimensions and weight (33.4 mm width, 101.4 mm height, 77 mm depth, 0.1 kg). Business Impact: Enables accurate enclosure fitment and thermal/population planning. Application: Critical for tight-panel installations and compact switchgear cabinets.
