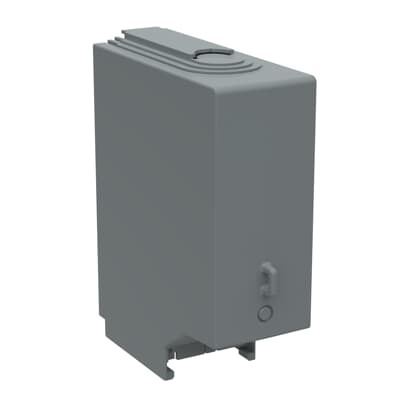

ABB 1SCA114765R1001 Terminal Shroud - L/4
Part Number: 1SCA114765R1001
Quick Summary
ABB 1SCA114765R1001 Terminal Shroud protects OS switches terminals, enabling safe, clean control-panel installations. Engineers often battle exposed conductors and messy wiring during panel maintenance. RoHS and REACH declarations ensure compliance with European material standards, while CMRT confirms responsible sourcing. Designed for ABB OS switches and fusegear, its snap-on mounting and compact footprint streamline installation, reduce cycle time, and support compliant, safe operation.
Product Information
Extended Description
1SCA114765R1001 ABB: OSS160GG1L/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSS160GG1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
33.4 mm
Product Net Height
101.4 mm
Product Net Depth / Length
77 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
35 mm
Package Level 1 Depth / Length
240 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019471914
Mounting Type
Snap-on mounting
Special Functions
L/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3600142
E-Number (Sweden)
3171037
Feature: Protective shroud with L/4 function provides physical isolation of terminal connections, reducing the risk of accidental contact. Business Impact: Improves safety metrics on maintenance rounds and lowers the probability of wiring faults during service. Application: Suitable for OSS160GG1L/4 configurations in control panels and machine enclosures. In practice, technicians experience faster, safer retrofits with less panel downtime. Feature: Snap-on mounting simplifies installation and eliminates the need for additional hardware. Business Impact: Accelerates assembly processes and enables repeatable, error-free fits in high-variety lineups. Application: Ideal when upgrading existing ABB OS switches or integrating fusegear accessories in standardized panels. Feature: Compact footprint—width 33.4 mm, height 101.4 mm, depth 77 mm, weight 0.1 kg. Business Impact: Maximizes panel density and reduces overall enclosure footprint, enabling smarter space planning. Application: Critical in compact automation cabinets and retrofit projects with tight clearance. Feature: Material compliance with CMRT, REACH, and RoHS declarations. Business Impact: Reduces regulatory risk, simplifies supplier audits, and supports sustainability reporting. Application: Essential for European and global supply chains in regulated sectors such as automotive and packaging. Feature: Rich classifications and standards coverage ETIM EC002498, UNSPSC 39122221, IDEA 5219, eClass V11.1 27371392. Business Impact: Improves interoperability with procurement systems and ensures accurate part matching. Application: Enables seamless integration into ERP-based sourcing. Feature: Packaging, MOQ, and traceability—minimum order 1 piece; packaging 1 piece per box; EAN 6417019471914; country of origin Finland. Business Impact: Streamlines stocking, reduces ordering costs, and aids traceability for compliant sourcing. Application: Beneficial for distributors and engineering departments managing multi-site inventories.
Get a Quick Quote for a ABB 1SCA114765R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA114765R1001?
Enquire Now
FAQs
Ensure compatibility with OSS160GG1L/4 terminals and align the shroud with the snap-on mounting surfaces on ABB OS switches. Confirm clearance around live terminals, avoid obstruction to fusegear, and verify the 33.4 mm width fits within the panel cutouts. The shroud’s lightweight 0.1 kg design facilitates handling during retrofit projects without requiring additional mounting hardware.
Yes. This terminal shroud carries RoHS declarations and REACH compliance for AC switches and fusegear, plus CMRT for responsible sourcing. These declarations support regulatory audits and supplier qualification programs in regulated markets, reducing procurement risk and simplifying documentation for compliance-driven projects.
Key dimensions include a width of 33.4 mm, height of 101.4 mm, and depth of 77 mm, with a unit weight of 0.1 kg. The product uses snap-on mounting, which simplifies installation and alignment with ABB OSS components. For panel design, ensure enough clearance for easy snap-on engagement and adequate space for future maintenance access.
The accessory is listed under ETIM EC002498 for low-voltage switch technology, with UNSPSC 39122221 and IDEA Granular Category Code 5219, indicating its role as a switch part or accessory. It also aligns with eClass 27371392 and WEEE considerations. These classifications aid in e-procurement and cross-system compatibility across regions.
By protecting terminals and providing a clean, organized wiring layout, the shroud reduces incidental contact risks and exposure during maintenance. Snap-on mounting speeds servicing, lowers labor costs, and standardizes install practices across machines, leading to lower lifecycle costs and improved uptime in automation environments.
