ABB 1SCA114766R1001 Terminal Shroud - RoHS Compliance
Part Number: 1SCA114766R1001
Quick Summary
ABB 1SCA114766R1001 Terminal Shroud protects terminal connections in ABB OS/OS1 switchgear. In tight panels, wiring mistakes and slow assembly are common pain points; this accessory streamlines installation. RoHS compliance under EU Directive 2011/65/EU and Amendment 2015/863, plus REACH declarations and CMRT support regulatory and supply-chain transparency. With snap-on mounting and a compact footprint, it speeds wiring, reduces panel height, and improves reliability in motor drives and control cabinets. As part of ABB OS switches and control cabinet accessories, it offers dependable, code-ready performance for fast, safe projects.
Product Information
Extended Description

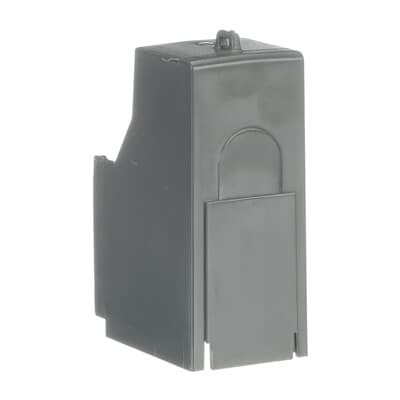

1SCA114766R1001 ABB: OSS160GG1S/3 TERMINAL SHROUD
Lead Time
14 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSS160GG1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
33.4 mm
Product Net Height
52 mm
Product Net Depth / Length
77 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
35 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019471921
Mounting Type
Snap-on mounting
Special Functions
S/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3600141
E-Number (Sweden)
3171036
Snap-on mounting enables rapid, tool-free installation, reducing panel assembly time while preserving wiring integrity. This translates to shorter project schedules and lower labor costs in drive and motor panel builds. The OSS160GG1S/3 shroud is designed to complement ABB OS switches, ensuring a clean, compliant wiring channel in tight spaces. Conductor protection and safety: The shroud covers exposed terminals, reducing the risk of accidental contact and short circuits during maintenance or vibration. In harsh environments, this improves reliability and reduces field failures, particularly in variable-speed drive systems. Precise dimensions and light weight: With a net width of 33.4 mm, height 52 mm, depth 77 mm, and weight 0.1 kg, the accessory fits compact control cabinets without adding bulk. This supports denser panel layouts and easier cable management. Compliance and traceability: RoHS status aligned with EU 2011/65/EU, REACH declaration, and CMRT provide regulatory confidence for aerospace, automotive, and automation sectors. Availability and procurement: Lead time is 14 days, product is Active and stocked at USSVCEXPU warehouses, with minimum order quantity of one piece. Fast delivery helps reduce downtime for critical upgrades or replacements.
Get a Quick Quote for a ABB 1SCA114766R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA114766R1001?
Enquire Now
FAQs
The shroud uses snap-on mounting designed to fit ABB OS/OS1 switches. Align the shroud with the terminal block, press until it snaps into place, and verify that the conductors are fully protected. No special tools are required, which reduces installation time and minimizes risk of wiring disturbance.
Yes. The accessory adheres to EU RoHS Directive 2011/65/EU with Amendment 2015/863, and it is supported by REACH declarations and a CMRT for supply-chain transparency.
Product net width is 33.4 mm, net height 52 mm, and net depth 77 mm. The module weight is 0.1 kg, making it suitable for compact control cabinets and dense panel layouts.
It is ideal for ABB OS/OS1 switches in motor drives and drive panels, where secure conductor routing, quick installation, and reliable protection against accidental contact are essential in compact control cabinets.
Lead time is 14 days. The product is active and stocked at USSVCEXPU warehouses, with a minimum order quantity of one piece, aiding faster procurement for urgent projects.
