ABB 1SCA114767R1001 Terminal Shroud for ABB OS S/4
Part Number: 1SCA114767R1001
Quick Summary
ABB 1SCA114767R1001 Terminal Shroud protects OS switches and fusegear in compact control panels. This accessory helps prevent dust ingress and misalignment, reducing maintenance downtime. It meets key compliance declarations to support global manufacturing, including RoHS compliance under EU directives, CMRT reporting, and a REACH declaration. By standardizing on snap-on mounting and a proven form factor, you gain installation speed and safer, more reliable panel equipment while preserving flexibility for future upgrades in machine and process automation environments.
Product Information
Extended Description

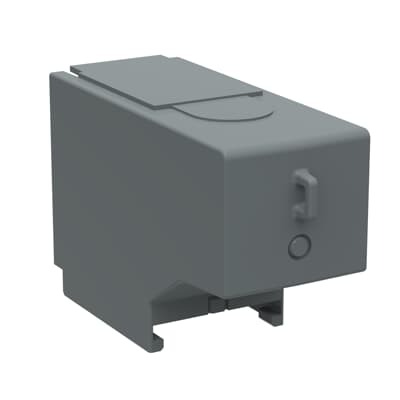

1SCA114767R1001 ABB: OSS160GG1S/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSS160GG1S.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
33.4 mm
Product Net Height
52 mm
Product Net Depth / Length
77 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
35 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
80 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019471938
Mounting Type
Snap-on mounting
Special Functions
S/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3600143
E-Number (Sweden)
3171038
Feature → Business Impact → Application: Snap-on mounting delivers fast, tool-free installation, reducing commissioning time and labor costs on busy lines; applied to OSS160GG1S/4 setups, it minimizes panel disruption during service. Feature → Business Impact → Application: Exact dimensions (33.4 mm width, 52 mm height, 77 mm depth) ensure a tight fit in crowded enclosures, improving space utilization and reducing panel redesign needs in new machinery. Feature → Business Impact → Application: S/4 function and the terminal shroud design provide robust protection for terminal connections, increasing operator safety and lowering risk of loose-terminals in high-vibration environments across robotic cells and packaging lines. Feature → Business Impact → Application: RoHS, REACH declarations and CMRT reporting deliver regulatory assurance for global supply chains, supporting industry-standard compliance and customer audits in automotive, food & beverage, and industrial automation. Feature → Business Impact → Application: 1 piece MOQ and Finland origin streamline procurement and quality traceability, enhancing supplier performance metrics for OEMs and system integrators.
Get a Quick Quote for a ABB 1SCA114767R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA114767R1001?
Enquire Now
FAQs
The shroud uses a straightforward snap-on mounting compatible with OSS160GG1S/4 configurations. No separate fasteners are required, and alignment pins guide proper seating. Prior to installation, ensure power is isolated, then align the shroud with the enclosure opening and press firmly until it seats. This minimizes commissioning time and reduces field servicing.
Key dimensions are 33.4 mm in width, 52 mm in height, and 77 mm in depth, with a net weight of approximately 0.1 kg. The mounting method is snap-on, designed for quick integration with ABB OS switches and fusegear in compact panels, supporting rapid installation and easy replacement during maintenance.
Yes. It targets OS switches and fusegear within compact control panels used in machine tools, packaging lines, and automation cells. The S/4 variant provides an enhanced enclosure interface, improving terminal protection in vibration-prone environments and facilitating safer, more reliable operation in continuous production settings.
The product is RoHS compliant under EU Directive 2011/65/EU and Amendment 2015/863, with an accompanying CMRT (Conflict Minerals Reporting Template) and REACH Declaration. While UL certification is not listed for this item, these declarations support regulatory alignment and supplier audits across global markets.
The shroud simplifies terminal protection, reducing the likelihood of loose connections and dust ingress, which translates to lower maintenance frequency and fewer unscheduled outages. Its quick-install snap-on design shortens downtime during panel upgrades and service, delivering a favorable total cost of ownership for OEMs and maintenance teams.
