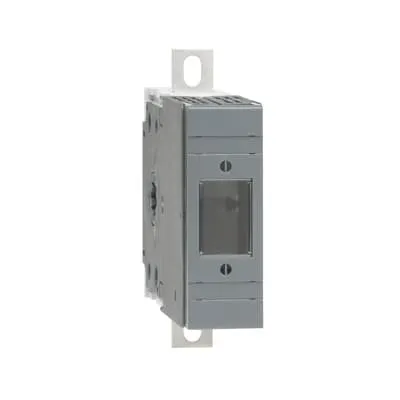

ABB 1SCA114768R1001 OSP160GD Fourth Pole - GD
Part Number: 1SCA114768R1001
Quick Summary
ABB 1SCA114768R1001 OSP160GD Fourth Pole provides high-current switching for industrial control panels and motor protection in harsh environments. The goal is to reduce panel size and wiring complexity while maintaining reliable protection in demanding applications. This solution highlights robust material compliance including CMRT, REACH declarations, and RoHS information to simplify procurement and regulatory checks. Built to integrate with ABB OS/OS1 family components, it supports scalable protection across migrating projects and new builds. For procurement teams, this translates into predictable lead times, traceability, and a clear path to regulatory alignment while engineers gain a dependable, field-proven component for high-current circuits.
Product Information
Extended Description
1SCA114768R1001 ABB: OSP160GD FOURTH POLE
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS100G-160G
Mechanical Drawings
OSP160GD.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
75 mm
Product Net Height
146 mm
Product Net Depth / Length
160 mm
Product Net Weight
0.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
75 mm
Package Level 1 Depth / Length
160 mm
Package Level 1 Height
146 mm
Package Level 1 Gross Weight
0.5 kg
Package Level 1 EAN
6417019484358
Conventional Free-air Thermal Current (Ith)
160 A
Conventional Thermal Current (Ithe)
160 A
Mounting Type
Screw mounting
Power Loss
at Rated Current 9 W
Rated Operational Voltage
Main Circuit 690 V AC
Special Functions
GD
Terminal Type
Lug terminals
Tightening Torque
15 … 22 N·m
Tightening Torque
15 … 22 N·m
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3600166
Feature → Business Impact → Application: The OSP160GD is rated for 160 A at 690 V AC, enabling robust protection for heavy-duty circuits in machine controls and distribution panels; business impact includes improved reliability and reduced downtime, with straightforward integration into existing control architectures. Application: motor control centers and feeder panels that require solid, high-current protection with minimal footprint. Feature → Business Impact → Application: Screw mounting and lug terminals with a tightening torque of 15…22 N·m provide secure, vibration-resistant connections, reducing maintenance calls and ensuring consistent contact quality in dynamic industrial environments. Application: compact switchgear installations in cranes, conveyors, and packaging lines where space is at a premium. Feature → Business Impact → Application: Power loss of 9 W at rated current improves thermal stability and energy efficiency across duty cycles, contributing to cooler cabinets and lower cooling costs in continuous operation. Application: live-panel installations with tight thermal management requirements. Feature → Business Impact → Application: Compliance declarations including CMRT, REACH, and RoHS streamline supplier qualification and shorten procurement cycles, supporting global sourcing in automotive, food & beverage, and process industries. Application: projects with strict regulatory constraints and multinational supply chains. Feature → Business Impact → Application: Minimum Order Quantity of 1 piece and Finland origin provide flexibility for multi-site rollout and traceable supply, reducing inventory risk and easing supplier audits. Application: pilot deployments and incremental upgrades in existing ABB switchgear ecosystems.
Get a Quick Quote for a ABB 1SCA114768R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA114768R1001?
Enquire Now
FAQs
Yes. The unit uses screw mounting with lug terminals and a 75 mm width, 146 mm height, and 160 mm depth, designed to drop into standard OS/OS1 switchgear footprints. Tightening torque is specified at 15–22 N·m, ensuring secure, vibration-resistant connections in existing panels.
The device provides Conventional Free-air Thermal Current and Conventional Thermal Current of 160 A, rated for 690 V AC. It operates with a power loss of 9 W at rated current, and uses lug terminals for reliable connections, making it suitable for high-demand industrial circuits.
Yes. It includes RoHS Declaration and Reach Declaration for AC switches and fusegear, and is accompanied by CMRT for conflict minerals reporting, aiding procurement compliance across global supply chains.
Absolutely. With 160 A current capability, 690 V AC rating, GD special function, and robust mounting, it is well-suited for motor protection, distribution panels, and control cabinets in manufacturing and material handling environments.
Minimum order quantity is 1 piece, with Finland as origin and a 85389099 tariff code. Packaged as a single unit per box, it supports smooth procurement and traceability for audits, and its architecture minimizes maintenance intervals due to reliable lug-terminals and secure mounting.
