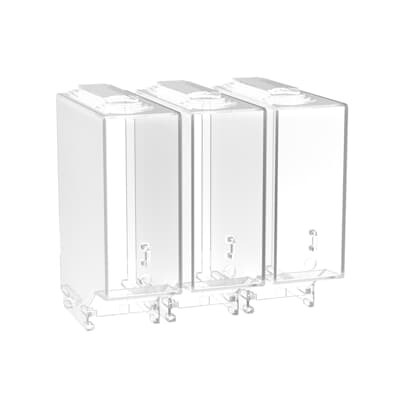

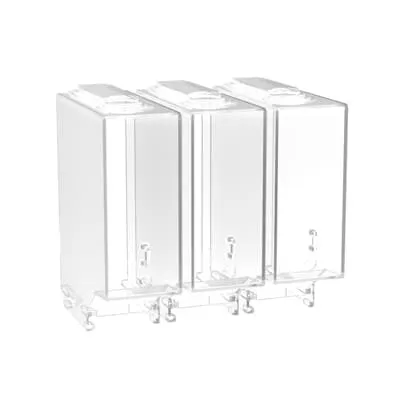

ABB 1SCA116369R1001 OSS160GT1L/3 Terminal Shroud - L/3
Part Number: 1SCA116369R1001
Quick Summary
ABB 1SCA116369R1001 terminal shroud provides safe, accessible terminal protection for ABB OS-switchgear in control panels. This accessory helps reduce maintenance downtime and operator exposure by preventing accidental contact and mis-wiring during servicing. It supports RoHS compliance, Reach declarations, and CMRT documentation, aiding audits and supplier transparency across global operations. By standardizing protective coverage on low-voltage switchgear, it streamlines installation and inventory management while lowering field errors. For panel builders and integrators, the L/3 configuration offers reliable compatibility with OSS160GT1L/3 lines, delivering consistent safety performance without costly rework, and supporting broader equipment lifecycle efficiencies.
Product Information
Extended Description
1SCA116369R1001 ABB: OSS160GT1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
33.4 mm
Product Net Height
101.4 mm
Product Net Depth / Length
77 mm
Product Net Weight
0.04 kg
Package Level 1 Units
bag 3 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
6417019484235
Special Functions
L/3
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
CMRT, Reach declarations and RoHS compliance are embedded in the OSS160GT1L/3 terminal shroud, ensuring regulatory alignment and supply-chain transparency. This reduces compliance risk and accelerates supplier audits for global projects. Engineers can quote confidently knowing the accessory matches European and North American requirements for low-voltage switchgear. With a compact footprint of 33.4 mm width, 101.4 mm height, and 77 mm depth, the shroud fits neatly around terminal blocks without crowding adjacent components. This enables tighter panel layouts and simpler cable routing, lowering assembly time and reducing potential interference during commissioning. Designed as an OS and OSM accessory, it integrates seamlessly with ABB OS switches and fusegear families. The L/3 function designation guides correct installation and reduces miswiring risk, while the availability in a three-piece bag supports kit-based procurement for larger panel builds. Origin Finland (FI) supports traceability and compliance with regional trade requirements. Clear country-of-origin data aids import planning, quality control, and supplier qualification, helping maintain consistent lead times in global projects. Documentation includes Data Sheet and technical information, with no separate instruction required for basic installation. This simplifies onboarding for maintenance teams and speeds field replacements in production environments. ETIM 8/9 classifications and eClass mapping position this accessory within standard spare-parts catalogs for low-voltage switch technology, enabling faster cataloging, ERP integration, and streamlined procurement.
Get a Quick Quote for a ABB 1SCA116369R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA116369R1001?
Enquire Now
FAQs
To install, ensure the OS switchgear area is de-energized and clean. Align the shroud with the terminal block and mounting points, then snap or slide the cover into place until it seats firmly. Verify there is no interference with adjacent components and that terminal access remains unobstructed for safe wiring and maintenance access.
The shroud has a width of 33.4 mm, height of 101.4 mm, and depth of 77 mm, with a weight of 0.04 kg. When mounting, ensure clearance around the terminal block and that the L/3 configuration aligns with the switchgear variant in use to avoid contact or wiring conflicts.
Yes. It is designed as an accessory for ABB OS and fusegear families in low-voltage switchgear. The L/3 configuration and RoHS/CMRT declarations support safe, compliant installation in industrial automation panels, reducing maintenance risk and improving serviceability in controlled environments.
The accessory includes CMRT (Conflict Minerals Reporting Template), Reach Declaration, and RoHS Information. These declarations support regulatory compliance, supplier transparency, and ecosystem audits across EU and global supply chains.
Benefits include reduced risk of accidental contact and mis-wiring, which lowers commissioning and maintenance downtimes. The shroud also simplifies panel layouts, supports faster part qualification in ERP systems, and aids regulatory audits, contributing to overall lifecycle cost savings and safer, more reliable operation.
