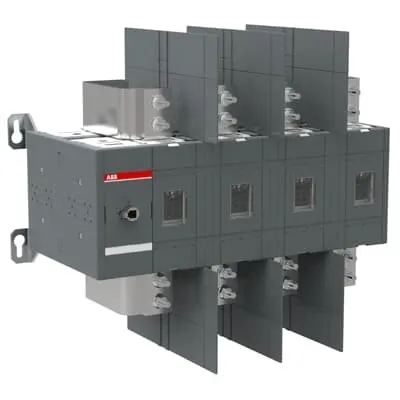

ABB 1SCA117316R1001 Switch-Disconnector - UL/cULus
Part Number: 1SCA117316R1001
Quick Summary
ABB 1SCA117316R1001 Switch-Disconnectors provide four-pole front-operated isolation for industrial switchgear. For maintenance teams facing limited access and safety constraints, this design streamlines safe de-energization with rugged reliability. It carries UL/CSA cULus certification, RoHS and REACH declarations, and offers Environmental Product Declaration (EPD) options to support responsible sourcing. Designed for base mounting with 4P front operation, it helps OEMs reduce inventory complexity while simplifying compliance for large-scale installations. The unit supports top-in, bottom-out line terminals, a tightening torque of 56 N·m, and a main circuit operating voltage of 1000 V. With a 615 mm net width and 68.9 kg weight, it is suited for high-current switchgear where safe isolation is non-negotiable.
Product Information
Extended Description
1SCA117316R1001 ABB: 4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT1000-1600 Disassembly Instructions
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT1600U_, OT2000U_
Mechanical Drawings
1SCC307538F0201OT1600-2000U04.igs
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Degree of Protection
Front IP00
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
615 mm
Product Net Height
546 mm
Product Net Depth / Length
415 mm
Product Net Weight
68.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
420 mm
Package Level 1 Depth / Length
650 mm
Package Level 1 Height
620 mm
Package Level 1 Gross Weight
72.1 kg
Package Level 1 EAN
6417019493350
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
2500
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA
500 in·lb
ATEX Certificate
No certification needed
cUL Certificate
cULus certificate OT1600-2000
UL Certificate
cULus certificate OT1600-2000
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
