ABB 1SCA117317R1001 Switch-Disconnect - UL/CSA 2000A
Part Number: 1SCA117317R1001
Quick Summary
ABB 1SCA117317R1001 is a 4-pole, front-operated switch-disconnector designed for high-current isolation in industrial power panels. This device addresses the common challenge of providing safe, reliable isolation within base-mounted enclosures while minimizing installation time. With UL/CSA certification and RoHS/Reach declarations, it supports rigorous compliance programs and helps simplify procurement. The switch offers a robust 2000 A ampacity and a 1000 V main circuit rating, making it suitable for large feeders and critical distribution paths. For maintenance and safety, the lockable handle and durable construction enable confident operation during routine shutdowns and emergency isolation, reducing downtime and human-factor risk. Additionally, lug-terminals and standard torque specs improve installability and serviceability, boosting total cost of ownership.
Product Information
Extended Description

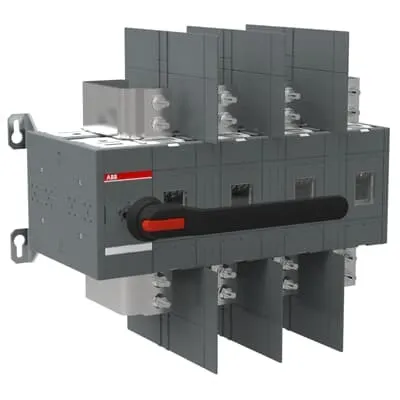

1SCA117317R1001 ABB: 4-pole, front operated, base mounted non-fusible diconnect switch with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT1000-1600 Disassembly Instructions
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT1600U_, OT2000U_
Mechanical Drawings
1SCC307538F0201OT1600-2000U04.igs
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Degree of Protection
Front IP00
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
615 mm
Product Net Height
546 mm
Product Net Depth / Length
310 mm
Product Net Weight
69.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
580 mm
Package Level 1 Depth / Length
780 mm
Package Level 1 Height
500 mm
Package Level 1 Gross Weight
72.8 kg
Package Level 1 EAN
6417019493367
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
2500
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA
500 in·lb
ATEX Certificate
No certification needed
cUL Certificate
cULus certificate OT1600-2000
UL Certificate
cULus certificate OT1600-2000
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4-pole, front-operated design provides fast, safe isolation with a compact footprint suitable for base-mounted panels, reducing panel space and installation time in motor control centers and power distribution units. This translates to lower commissioning costs and quicker maintenance cycles in manufacturing lines. Feature → Business Impact → Application: With a 2000 A ampere rating and a 1000 V main circuit rating, the device supports large feeders and high-power equipment, enabling reliable isolation for critical processes and reducing the risk of nuisance tripping during peak loads in process industries. Feature → Business Impact → Application: The unit’s 2500 mechanical durability cycles and lockable handle deliver long-term reliability and safer lockout/tagout procedures, cutting maintenance downtime and improving operator safety during servicing in utilities and heavy industry. Feature → Business Impact → Application: Lug terminals with a tightening torque of 56 N·m ensure solid, vibration-resistant connections, improving high-current performance and reducing contact resistance over the life of the installation in switchgear and distribution panels. Feature → Business Impact → Application: Compliance-focused design, including UL 98 / CSA C22.2 NO.4 and RoHS/Reach declarations, minimizes regulatory risk and simplifies supplier qualification in regulated sectors such as food processing, pharma, and energy infrastructure. Feature → Business Impact → Application: Base mounting and a logical pole arrangement support straightforward retrofits and upgrades in legacy panels, enabling cost-efficient modernization without extensive rewiring in industrial facilities and data centers.
Get a Quick Quote for a ABB 1SCA117317R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA117317R1001?
Enquire Now
FAQs
This unit uses base mounting and 4P configuration for straightforward panel integration. It supports lug terminals and a tightening torque of 56 N·m, which aids reliable, vibration-resistant connections. The front-operated mechanism with a 04 (Left Side) actuation position supports accessible operation from the panel front, reducing installation time and improving safety during maintenance.
The 2000 A ampere rating accommodates large feeders and high-current loads, enabling safe isolation and clear segmentation of power paths in switchgear and motor control centers. Combined with a 1000 V main circuit rating and 12 kV impulse withstand voltage, it supports robust protection for critical equipment while meeting common industry standards for heavy-duty applications.
Yes. The device carries RoHS compliance and a Reach declaration for AC switches and fusegear, along with CMRT where applicable. These declarations reduce regulatory risk and simplify supplier qualification, which is valuable for industries with strict material and environmental disclosures, such as electronics, energy, and manufacturing.
The product aligns with UL 98 / CSA C22.2 NO.4 and carries cULus OT1600-2000 certifications. It is designed for safe, compliant operation within North American electrical installations and is supported by documented manufacturing and safety standards, aiding procurement and compliance verification for panel builders and end users.
Key benefits include high durability with 2500 mechanical cycles and a lockable handle for safe LO/TO procedures, reducing downtime during maintenance. The combination of base mounting, lug terminals with 56 N·m torque, and 69.6 kg weight enables stable, long-lasting installations with predictable service intervals, lowering total cost of ownership in heavy industry environments.
