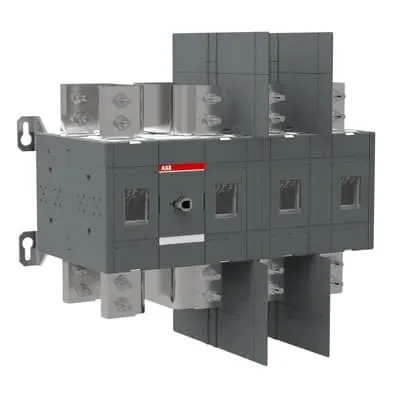

ABB 1SCA117336R1001 Switch-Disconnectors - UL/CSA
Part Number: 1SCA117336R1001
Quick Summary
ABB 1SCA117336R1001 Switch-Disconnectors provide reliable power isolation for high-current panels. In demanding control systems, uptime matters, and safe, swift disconnection is essential to prevent unplanned downtime. The 4-pole, front-operated design supports simultaneous switching across all conductors while keeping installation space compact in base-mounted enclosures. This product adheres to UL 98 / CSA C22.2 NO.4 safety standards and carries RoHS and Reach declarations to support compliant sourcing and global deployment. With a front-IP00 profile and robust mechanical durability, technicians gain predictable performance over the equipment’s lifecycle. For procurement teams, the combination of high-current ratings, straightforward installation, and broad regulatory compliance translates into reduced maintenance costs and faster project delivery.
Product Information
Extended Description
1SCA117336R1001 ABB: 4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT1000-1600 Disassembly Instructions
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT1600U_, OT2000U_
Mechanical Drawings
OT1600...OT2000U13, dwg-file | OT1600...OT2000U13, dxf-file | OT1600-2000U13.stp | OT1600-2000U13.igs
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Degree of Protection
Front IP00
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
570 mm
Product Net Height
546 mm
Product Net Depth / Length
415 mm
Product Net Weight
68.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
420 mm
Package Level 1 Depth / Length
650 mm
Package Level 1 Height
620 mm
Package Level 1 Gross Weight
72.1 kg
Package Level 1 EAN
6417019493459
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
2500
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA
500 in·lb
ATEX Certificate
No certification needed
cUL Certificate
cULus certificate OT1600-2000
UL Certificate
cULus certificate OT1600-2000
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4-pole, front-operated design enables complete isolation of all lines in a single actuator, delivering safer operation and tighter control within compact, base-mounted switchgear. This reduces installation time and minimizes panel footprint, benefiting high-density control panels in automotive and process environments. Feature → Business Impact → Application: The non-fusible construction with lug terminals allows flexible integration with existing busbars and wiring schemes, lowering customization costs and speeding commissioning in machine building. Feature → Business Impact → Application: Rated main circuit voltage of 1000 V and current rating of 2000 A support heavy-load applications, improving reliability in power distribution rooms and large-scale CNC or robotics systems. Feature → Business Impact → Application: A mechanical durability spec of 2500 cycles ensures consistent performance in frequent operate/load cycles common in packaging lines and material handling. Feature → Business Impact → Application: Compliance with UL 98 / CSA C22.2 NO.4, RoHS, and Reach reduces regulatory risk and accelerates approvals for global deployments in mining, water treatment, or chemical processing. Feature → Business Impact → Application: Lug terminals and a tightening torque of 56 N·m facilitate secure terminations, cutting commissioning time and enhancing long-term connection reliability in critical control cabinets.
Get a Quick Quote for a ABB 1SCA117336R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA117336R1001?
Enquire Now
FAQs
For installation, mount the unit on a base-mounted chassis with the lug terminals oriented for top-in/bottom-out or vice versa as per the mounting configuration. Ensure the terminal bolts are torqued to 56 N·m per IEC 60947-1, and include the required bolt kit. The handle and shaft are not included, so planning for a compatible handle kit is essential to enable front operation and safe manual disconnection.
Key ratings include a main circuit voltage of 1000 V and an ampere rating of 2000 A. It provides a rated short-time withstand current (Icw) of 50 kA for 1 s and a rated impulse withstand voltage (Uimp) of 12 kV. These specs support high-current isolation with reliable protection in demanding industrial settings.
Yes. With 4P configuration, front operation, 4P isolation, and a 2000 A rating, it is designed for heavy-duty power distribution in machines and panels. The base-mounted design facilitates integration into control cabinets, while lug terminals simplify field terminations, reducing install time and potential wiring errors.
The device aligns with UL 98 / CSA C22.2 NO.4 standards. It carries RoHS and Reach compliance, supporting eco-friendly procurement. A cULus certificate is noted for related OT ranges, and documentation includes environmental declarations to assist in regulatory review and import qualification.
The 2500-cycle mechanical durability provides predictable longevity in frequent operation scenarios, reducing replacement cycles and downtime. Secure lug-term terminations at 56 N·m lower the risk of loose connections. Overall, the combination of high-current capability, straightforward installation, and standards compliance translates to lower total cost of ownership in long-running automation and power-distribution networks.
