ABB 1SCA117336R1001 Switch-Disconnectors - UL/CSA
Part Number: 1SCA117337R1001
Quick Summary
ABB 1SCA117336R1001 Switch-Disconnectors provide reliable power isolation for high-current panels. In demanding control systems, uptime matters, and safe, swift disconnection is essential to prevent unplanned downtime. The 4-pole, front-operated design supports simultaneous switching across all conductors while keeping installation space compact in base-mounted enclosures. This product adheres to UL 98 / CSA C22.2 NO.4 safety standards and carries RoHS and Reach declarations to support compliant sourcing and global deployment. With a front-IP00 profile and robust mechanical durability, technicians gain predictable performance over the equipment’s lifecycle. For procurement teams, the combination of high-current ratings, straightforward installation, and broad regulatory compliance translates into reduced maintenance costs and faster project delivery.
Product Information
Extended Description

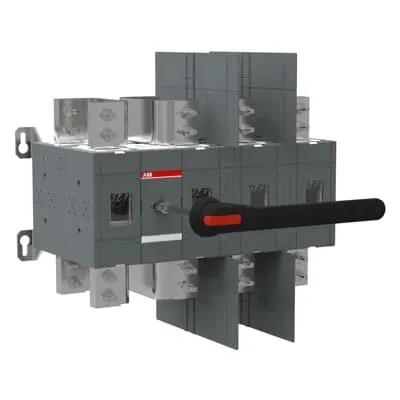

1SCA117337R1001 ABB: 4-pole, front operated, base mounted non-fusible diconnect switch with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT1000-1600 Disassembly Instructions
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT1600U_, OT2000U_
Mechanical Drawings
OT1600...OT2000U13, dwg-file | OT1600...OT2000U13, dxf-file | OT1600-2000U13.stp | OT1600-2000U13.igs
Environmental Product Declaration - EPD
PEP, EPD, OT1000-2000E_, OT800-2000U_
Degree of Protection
Front IP00
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
570 mm
Product Net Height
546 mm
Product Net Depth / Length
415 mm
Product Net Weight
69.6 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
420 mm
Package Level 1 Depth / Length
650 mm
Package Level 1 Height
620 mm
Package Level 1 Gross Weight
72.8 kg
Package Level 1 EAN
6417019493466
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
2500
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 96 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kA
Special Functions
No
Standards
UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 56 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
2000 A
Tightening Torque
acc. IEC 60947-1 56 N·m
Tightening Torque UL/CSA
500 in·lb
ATEX Certificate
No certification needed
cUL Certificate
cULus certificate OT1600-2000
UL Certificate
cULus certificate OT1600-2000
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
