ABB 1SCA118603R1001 OT160E33WCP Change-Over Switch - CE
Part Number: 1SCA118603R1001
Quick Summary
ABB OT160E33WCP change-over switch provides 160 A, 6-pole switching for reliable dual-source transfer in industrial control panels. This device helps prevent downtime caused by accidental energization and mis-wiring by offering a padlockable 0-position and a door interlock in positions I and II. It carries essential certifications and declarations that support compliance in regulated environments, including CE conformity, and a DNV certificate for related OT16 variants, along with RoHS and Reach declarations. Designed for front-operated, base-mounted installation, it delivers predictable thermal performance and straightforward maintenance, delivering measurable business value through safer operation, faster commissioning, and traceable procurement for OEMs and integrators.
Product Information
Extended Description

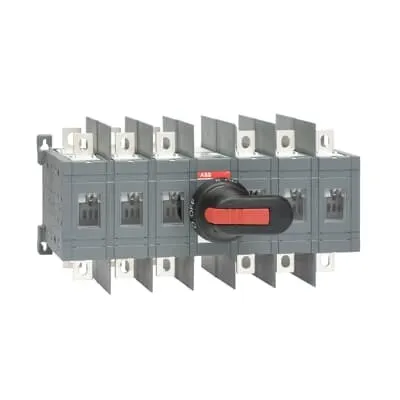

1SCA118603R1001 ABB: 160A, 6 pole manual change-over switch with phase barriers including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
fe6d6f5d-4984-415d-8bab-c1963ef34d73 Finland (FI)
Simplified SCIP
79120a89-3bd8-480a-868b-0ca639610c4f Germany (DE) | 5c75cd86-cd9e-4e8e-b927-de19d5f0ea57 France (FR) | d3625c80-2004-4133-8c9d-513ba6a54e49 Sweden (SE) | df24ce14-0bbe-4a61-a597-21aa16aa7452 Germany (DE) | 71556e89-d4af-4f17-881f-a1821095b287 Denmark (DK) | 01755163-0289-4472-95ba-a86e2e333bcc Belgium (BE) | a0a76416-01ac-48d3-97d7-9b1d006ba181 Italy (IT) | 4118c285-615d-4287-b90d-2678f4d2a94c Germany (DE) | 241b9334-a773-45c1-9d87-fd0e70d0e51e Hungary (HU) | 16b85ec1-e0bd-4e22-8e4c-115c048156a0 Estonia (EE) | 3308669c-2f66-41c0-a99d-f64ea781edb9 Portugal (PT) | b1bbe210-fa19-4a3c-a4be-6d656793f30e France (FR) | b3da8993-5c40-49c6-9d0e-b4483f4f190c Norway (NO) | 008c326b-8c07-411a-9cdf-7f2cb195b846 Netherlands (NL) | e3843cb9-4531-4ac1-bc98-d8dbc724e967 Croatia (HR) | 542ed0fe-d58d-4589-9d69-0945e0359f93 Germany (DE) | fad9b911-217e-4d60-b171-6526749d8861 Czech Republic (CZ) | 0e9619aa-dc72-4bad-ab09-1e897d8d573e Poland (PL) | 89e413a1-96f2-4377-ab31-5e39be9a8f7a Spain (ES) | d7c6c60a-904a-438c-b211-38bfba7f0612 Bulgaria (BG) | fa31a71b-9c64-4542-baab-43f2b98e40d7 Hungary (HU) | 20f89dfb-e9f9-458e-ba58-a8c95207585d Germany (DE) | 124a0ec2-894e-4d01-ab74-972d70d6c860 Poland (PL) | ccd68fa1-a6cf-46e0-9807-78972540736b Belgium (BE) | a9861aeb-50ba-49c0-a040-d54c8806ccd3 Poland (PL) | 6d7dc3d4-b296-43ca-a285-f2f21ca74e91 Sweden (SE) | 22fa0e49-da67-4c10-aa5e-f34fb554f166 Greece (GR)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
323 mm | 12.72 in
Product Net Height
170 mm | 6.69 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
5.88 kg | 12.96 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
215 mm | 8.46 in
Package Level 1 Depth / Length
395 mm | 15.55 in
Package Level 1 Height
215 mm | 8.46 in
Package Level 1 Gross Weight
6.82 kg | 15.04 lb
Package Level 1 EAN
6417019503226
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Wide phase distance
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
6P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 33 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The OT160E33WCP is a 160 A, 6P change-over switch with base mounting and front operation, enabling reliable load transfer in space-constrained control panels. This reduces downtime during source changeovers and simplifies panel design for machine tools and packaging lines. Application: front-access control cabinets and motor control centers where quick, safe source switching is critical. Feature → Business Impact → Application: Screw terminals with a 20 mm width and a tightening torque of 15–22 N·m provide secure, vibration-resistant connections, enhancing long-term reliability and reducing maintenance in high-vibration environments. Application: rugged industrial installations with frequent thermal cycling. Feature → Business Impact → Application: 2.4 W power loss per pole supports energy efficiency in continuous-duty installations, lowering running costs over the life of the switch. Application: energy-conscious machine Ler or processing lines with multiple actuation cycles. Feature → Business Impact → Application: Padlockable 0-position and door interlock in I and II positions improve operator safety and prevent accidental energization during maintenance. Application: safe routines in automated lines and multi-axis motion systems. Feature → Business Impact → Application: High electrical ratings — Ui 1000 V, Ie 160 A, and Icw 8 kA for 1 s — enable reliable operation across 380–415 V, 500 V, and 690 V systems, reducing the need for alternate components. Application: motor control and transfer switching in diverse plant voltages. Feature → Business Impact → Application: 6P configuration with Top In – Bottom Out or Bottom In – Top Out ensures flexible wiring topology for compact panels, simplifying installation and future reconfiguration. Application: OEM panel builders and system integrators seeking modular, scalable protection and switching solutions.
