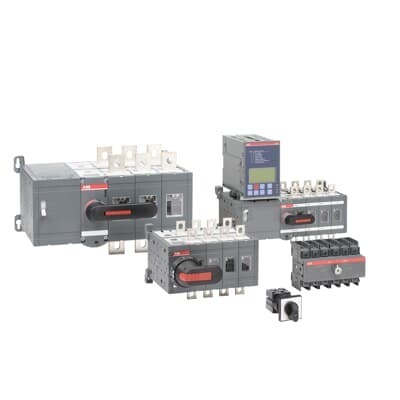

ABB 1SCA118984R1001 Transfer Switch - CE, 250 A
Part Number: 1SCA118984R1001
Quick Summary
ABB 1SCA118984R1001 transfer switch safely switches between power sources in industrial control panels. Engineers face costly downtime during source changes; this unit delivers fast, reliable transfer. CE certified; front protection IP20; RoHS-compliant with CMRT reporting. These features support safe installation, regulatory compliance, and long-term cost efficiency for panel builders and machine integrators.
Product Information
Extended Description
1SCA118984R1001 ABB: The transfer switches include a black handle IP65 see the table below, Nema type 1, 3R, 12, a shaft and a bolt set for the cable connection.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
RoHS Information
1SCC301149D0202
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
1SCC303008M0201
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm
Product Net Height
150 mm
Product Net Depth / Length
160 mm
Product Net Weight
4.2 kg
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm
Package Level 1 Depth / Length
310 mm
Package Level 1 Height
185 mm
Package Level 1 Gross Weight
4.2 kg
Package Level 1 EAN
6417019504186
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Declaration of Conformity - CE
1SCC303006D0202
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole front-operated design enables true four-channel switching with simultaneous pole operation. Business impact: ensures reliable changeover with reduced arcing, improving process stability and equipment uptime. Application: ideal for critical power sources in manufacturing lines and control cabinets. Feature: 250 A rated current across 380–415 V, 500 V, and 690 V; open transition with defined terminal layout. Business impact: supports demanding loads with predictable performance, enabling tighter electrical protection coordination. Application: suitable for heavy machinery and process lines requiring robust power switching. Feature: Base mounting with included shaft and handle simplifies installation and maintenance. Business impact: saves installation time and reduces field wiring errors, lowering total cost of ownership. Application: panel builders and machine integrators seeking clean wiring and straightforward service. Feature: Front IP20 protection and RoHS/CMRT compliance. Business impact: ensures safe operation inside control cabinets and meets regulatory and supply-chain traceability requirements. Application: environments with indoor installation and end-to-end compliance needs. Feature: UL/CSA 200 A compatibility and 12 kV impulse withstand rating. Business impact: broad electrical approvals and high transient tolerance translate to lower risk and longer service life. Application: data centers, packaging lines, and process automation where reliability matters. Feature: Clear documentation and standardized data (Data Sheet, Manuals; CE Declaration). Business impact: accelerates engineering, reduces procurement risk, and streamlines specification-in. Application: formal bids and engineering workflows across industries that demand traceable spec adherence.
