ABB 1SCA120025R1001 Switch-Disconnector - IEC 60947-3
Part Number: 1SCA120025R1001
Quick Summary
ABB 1SCA120025R1001 Switch-Disconnectors provide reliable isolation for heavy-duty industrial power circuits. When space is tight or maintenance requires quick access, traditional disconnectors slow workflows and elevate safety risk. This device is designed to meet IEC 60947-3 standards, carries CE conformity declarations, and features a front-operated mechanism with a durable 2-pole construction. Using this model can reduce downtime, simplify compliance reporting, and deliver robust locking and straightforward installation for panel builders and plant engineers.
Product Information
Extended Description

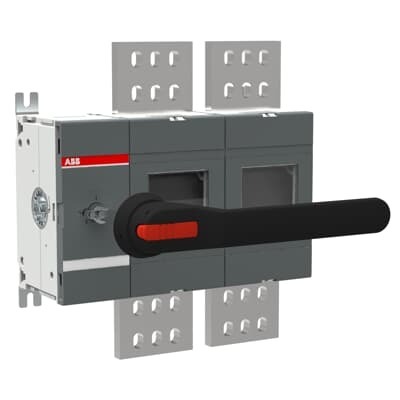

1SCA120025R1001 ABB: 2-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT2000-2500 Disassembly Instructions
Environmental Information
PEI OT2000-2500
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT2000-OT2500
Mechanical Drawings
OT2000-2500E02, dwg-file | OT2000-2500E02, dxf-file | OT2500E02.igs
Environmental Product Declaration - EPD
PEP, EPD, OT2000-2500
Degree of Protection
Front IP00
Environmental Information
PEI OT2000-2500
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
346.5 mm
Product Net Height
376.5 mm
Product Net Depth / Length
145.5 mm
Product Net Weight
17.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
580 mm
Package Level 1 Depth / Length
780 mm
Package Level 1 Height
200 mm
Package Level 1 Gross Weight
18.5 kg
Package Level 1 EAN
6417019516035
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 2000 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
6000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 55 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A | (690 V) 2000 A
Rated Operational Current AC-22B (Ie)
(380 ... 415 V) 2000 A | (500 V) 2000 A | (690 V) 2000 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 176 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 55 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
Tightening Torque
acc. IEC 60947-1 50 … 75 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT1000-2500
Declaration of Conformity - CE
Declaration of Conformity / OT2000-2500E
DNV GL Certificate
1SCC301184D0203
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 2-pole, front-operated, base-mounted design. Business Impact: enables fast installation with minimal panel footprint and straightforward wiring in industrial switchgear. Application: main isolation in control cabinets and large motor feeders. Feature: Locking capability and robust handle with a shaft. Business Impact: enhances maintenance safety and prevents accidental operation during service. Application: safety-critical isolation during commissioning and routine testing. Feature: High current and voltage ratings (I e up to 2000 A, U main 1000 V, I cm 176 kA, Icw 55 kA). Business Impact: supports large loads and high fault tolerance, reducing panel count and wiring complexity. Application: high-power distribution in packaging lines and process plants. Feature: Terminal bolt kit included and lug terminals. Business Impact: simplifies field installation and ensures solid, vibration-resistant connections. Application: panel assembly with reliable long-term performance. Feature: Compliance and environmental data ( IEC 60947-3, CE declarations, CMRT, RoHS/Reach). Business Impact: helps meet regulatory requirements and sustainability goals while reducing risk of non-compliance. Application: procurement and compliance documentation for audits. Feature: Physical and environmental specs (Front IP00, 346.5 mm width, 376.5 mm height, 145.5 mm depth, 17.2 kg). Business Impact: predictable footprint in cabinet design and asset management for lifecycle planning. Application: OEM and modernization projects with space and weight constraints.
