ABB 1SCA120508R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120508R1001
Quick Summary
ABB 1SCA120508R1001 Switch-Disconnectors provide reliable circuit isolation for industrial control panels. Engineers often struggle with safe front-operated access and timely maintenance when upgrading legacy equipment. This device emphasizes front-operated control, base mounting, and a robust 2P design to streamline wiring and service. It carries IEC 60947-3 conformity, a CE Declaration of Conformity, and a DNV GL certificate, supported by RoHS compliance and CMRT data for responsible supply chains. With a 200 A operating current, 1000 V insulation, and 12 kV impulse rating, it delivers dependable performance while meeting global standards. The combination of these certifications and a lockable mechanism delivers safer commissioning, easier fault isolation, and reduced total cost of ownership for panel builders and OEMs.
Product Information
Extended Description

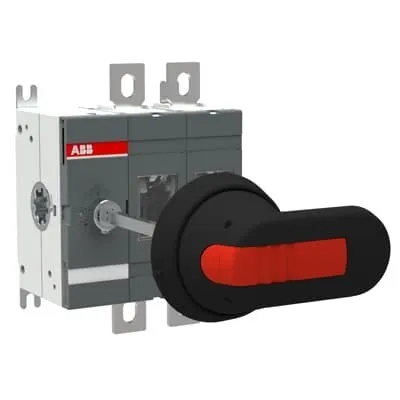

1SCA120508R1001 ABB: 2-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
744425f5-2792-4363-8950-61962b66e18a Finland (FI)
Simplified SCIP
0e9c0ee2-36b7-4f08-b309-85499413807c Germany (DE) | 089bf5d7-4d59-4566-8956-daa8afc16304 Bulgaria (BG) | f8e972da-ff44-4320-95b2-ed87d469a23a Germany (DE) | 05756765-94a8-4961-bac2-0dab2f30275d Sweden (SE) | 75813bd1-60c5-482e-9ce9-d4ccf065d3bb Germany (DE) | 4dd088c6-59e6-48f6-94d3-8e312ec86f4b Germany (DE) | 57daafb2-7a6c-4753-8dd6-0b9730d00650 Denmark (DK) | 4d43a6c1-fc7e-414c-8835-5f8df68ea7a2 France (FR) | 36b02414-1497-43de-9de2-35d76f4e3cf7 Poland (PL) | 83bb10b4-6103-49a9-aa41-09e7828cd72f Hungary (HU) | 46587283-dedf-43f3-93e3-5c938bdc4d61 France (FR) | f291379b-6b9d-4b37-a073-c6195db889d7 Italy (IT) | f144a293-4550-44a8-9b96-226787b69c1b Belgium (BE) | a840e37e-20ba-4ba1-a69f-6bfeb42201fe Estonia (EE) | 9c6c71fb-6010-4d42-a908-6ccdd02da1b9 Netherlands (NL) | 313e8d34-3503-4892-afb9-e54c880f258c Hungary (HU) | 936ce1b6-74e3-499e-a811-102a4b55e47c Belgium (BE) | b14c57cd-3c9a-487f-a9e3-31717013047b Sweden (SE) | 5a20e089-701b-4d65-92ec-8c4690126695 Germany (DE) | ab9807c7-9b22-4d02-a682-33887987ce77 Croatia (HR) | 638f6b0d-9e7d-4a15-b8e0-ae4d9176c98a Norway (NO) | c910382a-5c86-4deb-805d-83ce61d887e7 Poland (PL) | f5d5a0a6-10e1-4e9e-b82a-54ec9dfe3812 Spain (ES) | 86667248-0cde-4e54-b745-327c168f3482 Portugal (PT) | 47338662-33f3-44c8-92f7-39bf10414f39 Greece (GR) | 059cc309-1e44-485c-9331-e909ce657fe3 Poland (PL) | 407a25b6-dbdd-4cb9-a7f0-04544d07e879 Czech Republic (CZ)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200-250E02, dwg-file | OT200-250E02, dxf-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
110.5 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.2 kg | 2.7 lb
Package Level 1 EAN
6417019518480
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 2P, front-operated switch-disconnector. Business Impact: Enables fast, safe isolation in live-control panels, reducing maintenance downtime. Application: control cabinets and machine bays where quick disconnect is essential. This 2P, front-operated design supports quick intervention and safer testing sequences, improving overall equipment uptime in production lines. Feature: Base mounting with lug terminals and terminal bolt kit included. Business Impact: Simplifies installation and wiring integrity, enabling reliable connections with minimal part hunting. Application: retrofit projects and new builds in compact enclosures. Feature: Lockable handle and shaft included. Business Impact: Prevents accidental switching during service, enhancing operator safety and compliance. Application: maintenance windows and safety-critical systems. Feature: High current and voltage ratings ( Ie up to 200 A; up to 1000 V ). Business Impact: Reduces the need for multiple devices, simplifying distribution and lowering BOM costs. Application: machine drive panels and power distribution. Feature: Robust protection ratings and standards (I cm, I cw, U imp, IEC 60947-3). Business Impact: Improves short-circuit resilience and uptime, safeguarding critical processes. Application: energy-efficient factories and process automation. Feature: Documentation and certifications (CE, DNV GL, RoHS, CMRT). Business Impact: Eases regulatory compliance and global sourcing. Application: multinational rollouts and regulated industries.
Get a Quick Quote for a ABB 1SCA120508R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120508R1001?
Enquire Now
FAQs
Install as a 2P, front-operated device with base mounting and lug terminals. Use the included terminal bolt kit and tighten connections to 15–22 N·m. Ensure correct left-side mechanism orientation and provide adequate service clearance. This design supports straightforward retrofits and reliable wiring for panel builders and OEMs.
It supports Ie up to 200 A across 380–415 V, 500 V, 690 V, and 1000 V. Icm is 30 kA at 690 V, Icw is 8 kA for 1 second, and Uimp is 12 kV. Rated insulation voltage is 1000 V, with 2P operation and front-operated control suitable for medium-voltage panels.
Yes. The device complies with IEC 60947-3, and carries a CE Declaration of Conformity. It is supported by a DNV GL certificate and RoHS/CMRT data, ensuring regulatory alignment for European and global deployments in electrical protection and control applications.
The unit includes a terminal bolt kit for robust connections. Available documentation includes data sheets and manuals (Switches OT and OT- series), mechanical drawings, and EPD/CMRT data. Downloadable items cover installation and disassembly instructions, plus environmental and compliance declarations to support engineering validation.
Its 2P front-operated design enables fast isolation and safer servicing, while base mounting and lug terminals simplify installation. High current/voltage ratings reduce part count, and CE, DNV GL, RoHS, and CMRT certifications support regulatory compliance and global procurement, delivering lower downtime and a lower total cost of ownership for OEMs and integrators.
