ABB 1SCA120513R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120513R1001
Quick Summary
Switch-Disconnectors like ABB OT160EV03K are designed for front-operated isolation in electrical switchgear and control panels. They address downtime and accessibility challenges by combining safe isolation with quick, reliable front operation. The device complies with IEC 60947-3 and CE declarations, while offering IP00 protection, RoHS/REACH compliance, and environmental transparency. This combination supports streamlined panel design for industrial automation and power distribution, delivering clear value in installation efficiency, regulatory compliance, and long-term maintenance cost reduction.
Product Information
Extended Description

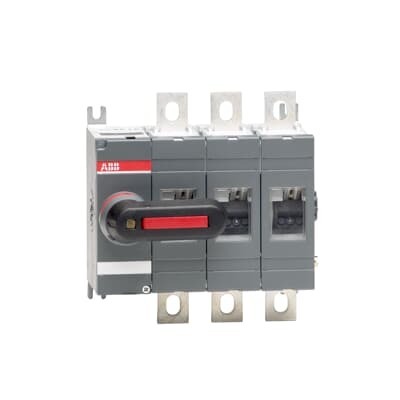

1SCA120513R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
145.5 mm
Product Net Height
150 mm
Product Net Depth / Length
107 mm
Product Net Weight
1.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.5 kg | 3.3 lb
Package Level 1 EAN
6417019519739
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601366
Feature → Business Impact → Application: 3P front-operated switch-disconnector with base mounting and direct mounted pistol-type handle reduces installation space and wiring complexity, accelerating switchgear assembly and service access in tight control panels. This enables faster commissioning and lower labor costs in industrial automation projects where space is at a premium. Feature → Business Impact → Application: 200 A Ith (fully enclosed 160 A Ithe) supports high-load motor and distribution duties, improving overall system reliability and reducing unplanned outages in process industries and manufacturing lines. Feature → Business Impact → Application: 12 kV rated impulse withstand (Uimp) and 1000 V Ui provide robust insulation margins, ensuring compliance with voltage classes across 380–690 V systems and enhancing safety margins during switching operations. Feature → Business Impact → Application: Lug terminals and 15–22 N·m tightening torque guarantee solid, vibration-tolerant connections, reducing terminal faults and reworks in rugged environments. Feature → Business Impact → Application: Top In – Bottom Out arrangement and 3P configuration simplify wiring topology and maintenance, supporting modular panel design and straightforward retrofits in existing switchgear. Feature → Business Impact → Application: Lockable handle and 3P isolation improve security during maintenance, meeting safety policies in industries with lockout/tagout requirements and minimizing human error. Feature → Business Impact → Application: Environmental declarations (CMRT, REACH, RoHS) and EPD data support supplier compliance programs and green procurement strategies, aligning with sustainability goals for OEMs and end users. Feature → Business Impact → Application: IEC 60947-3 compliance and CE Declaration streamline approval processes for European markets, enabling faster time-to-production for motor control centers and distribution panels.
Get a Quick Quote for a ABB 1SCA120513R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120513R1001?
Enquire Now
FAQs
The OT160EV03K is designed for base mounting with a direct mounted pistol-type handle and lug terminals. It features Top In – Bottom Out terminals and standard panel cutouts for straightforward installation. Use a tightening torque of 15–22 N·m to ensure secure, vibration-resistant connections suitable for 380–695 V service classes.
Key ratings include Ith of 200 A (fully enclosed Ithe 160 A), Ui of 1000 V, Uimp of 12 kV, Ie up to 200 A across 380–415 V, 500 V, and 690 V, and Icm of 30 kA at 690 V. It is a 3P, front-operated switch-disconnector with 3 poles and Lug terminals designed for robust motor control and distribution tasks.
Yes. The OT160EV03K carries CE Declarations of Conformity and is designed to meet IEC 60947-3 standards for switch-disconnectors. It also aligns with RoHS/REACH requirements and provides documented environmental data, including EPD and CMRT, supporting compliance reviews and sustainable procurement in European facilities.
Typical applications include main and sectional isolation in control panels, motor control centers, and electrical distribution boards in manufacturing, process industries, and packaging lines. The 3P, front-operated design with base mounting and Top In – Bottom Out terminals facilitates compact layouts, safe maintenance, and quick isolation in demanding environments.
Mechanical durability of 20,000 cycles and robust connection hardware reduce replacement frequency and maintenance calls. Front operation minimizes downtime during switching and servicing, while compliant documentation (IEC 60947-3, CE, RoHS) supports faster regulatory approvals, delivering lower lifecycle costs and higher return on investment for panel builders and end users.
