ABB 1SCA120516R1001 Switch-Disconnectors - IP00 IEC 60947-3
Part Number: 1SCA120516R1001
Quick Summary
ABB 1SCA120516R1001 Switch-Disconnectors provide safe isolation for three-phase power systems in industrial environments. Operators often face downtime and safety risks during shutdowns, so reliable isolation is essential. The device complies with IEC 60947-3 and CE conformity, with ABB EcoSolutions declarations including A2L IEC, EPD, and RoHS status. With a rugged 3P design, lug-terminal installation, and front IP00 protection, it streamlines panel builds, reduces wiring errors, and supports compliant maintenance routines. This combination offers robust performance, easy installation, and tangible uptime gains for motor control panels and power distribution assemblies.
Product Information
Extended Description

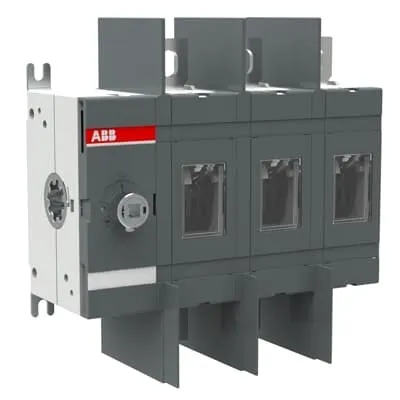

1SCA120516R1001 ABB: OT160EV03W SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E03W, dwg-file | OT200...OT250E03W, dxf-file | OT200-250E03W.stp | OT200-250E03W.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
169.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.164 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm
Package Level 1 Depth / Length
145 mm
Package Level 1 Height
190 mm
Package Level 1 Gross Weight
1.334 kg
Package Level 1 EAN
6417019519753
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Three-pole design rated for fully enclosed 160 A Ith. Business Impact: Enables safe, reliable isolation for three-phase circuits while handling high operating currents. Application: Ideal for motor control centers and distribution panels where robust disconnect capability is required. Feature: Rated Operational Current across multiple voltages (Ie 380-415 V, 500 V, 690 V) up to 200 A. Business Impact: Delivers consistent performance across common industrial voltages, reducing device proliferation. Application: Suitable for multi-voltage machinery and process lines. Feature: Short-Circuit Making Capacity Icm up to 30 kA at 690 V. Business Impact: Improves fault tolerance and system protection during startup surges. Application: Critical where high short-circuit levels are possible in feeders. Feature: Short-time Withstand Current Icw up to 8 kA for 1 s. Business Impact: Provides margin for protective coordination with upstream breakers. Application: OEMs designing protective schemes for dynamic loads. Feature: Main circuit voltage rated at 1000 V. Business Impact: Expands applicability to high-voltage industrial installations while preserving insulation integrity. Application: Heavy-duty power distribution and machine-automation interfaces. Feature: Lug terminals with tightening torque 15–22 N·m. Business Impact: Ensures reliable connections and repeatable installation in manufacturing environments. Application: Field-assembly in control cabinets and switchgear. Feature: Compact dimensions (169.5 mm width, 170 mm height, 82.5 mm depth) and weight around 1.164 kg. Business Impact: Simplifies cabinet layout planning and reduces panel footprint. Application: Suitable for space-constrained switchgear. Feature: Compliance and sustainability options (RoHS, CMRT, EPD, A2L IEC). Business Impact: Eases procurement and regulatory reporting across global supply chains. Application: For projects demanding traceability and environmental responsibility.
