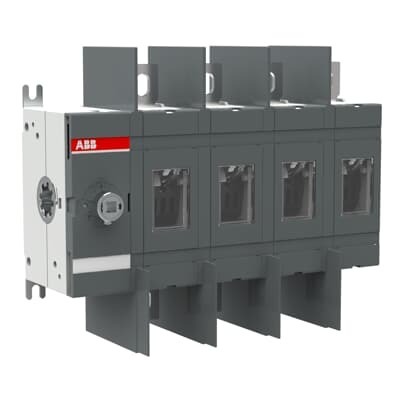

ABB 1SCA120522R1001 Switch-Disconnecter - IEC 60947-3
Part Number: 1SCA120522R1001
Quick Summary
ABB 1SCA120522R1001 Switch-Disconnecter is designed to safely isolate high‑current power circuits in industrial control panels and switchgear. It reduces arcing risk and downtime with a rugged 4‑pole design and durable mechanical lifetime backed by verified field performance. The device is CE certified, complies with IEC 60947-3, and features front IP00 protection, while RoHS and TSCA compliance support global deployments. With rated current up to 200 A and insulation of 1000 V, it integrates smoothly with ABB OT200‑250 family equipment in moderate to harsh industrial environments. This combination delivers reliable isolation, simple installation, and tangible cost savings by reducing maintenance cycles and enabling safer, compliant electrical protection.
Product Information
Extended Description
1SCA120522R1001 ABB: OT160EV04W SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E04W, dwg-file | OT200...OT250E04W, dxf-file | OT200-250E04W.stp | OT200-250E04W.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
212.5 mm
Product Net Depth / Length
83 mm
Product Net Weight
1.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
2 kg | 4.5 lb
Package Level 1 EAN
6417019519821
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
Object Classification Code
Q
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
The 4‑pole design provides true isolation across all poles, reducing exposure to arcing and enabling safer maintenance in motor control panels and distribution boards. This translates into improved uptime and safer lockout procedures, while simplifying wiring in complex control cabinets. The device’s high current capability—Ith 160 A fully enclosed and Ie up to 200 A across 380–690 V networks—lowers component count and total install time, delivering measurable cost savings in industrial facilities and process lines. With Ui of 1000 V and Uimp of 12 kV, it offers solid insulation margins for standard industrial switching events, improving reliability in high‑voltage panels and reducing safety risks during transitions. Lug terminals with a tightening torque of 15–22 N·m ensure secure terminations, minimizing repetitive maintenance in vibration‑prone environments. Compatibility with the OT200–OT250 family supports streamlined procurement and spare‑parts planning. The 20,000‑cycle mechanical durability supports long lifecycle costs, while RoHS, REACH, CMRT, and TSCA compliance reinforce responsible sourcing and global deployment.
Get a Quick Quote for a ABB 1SCA120522R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120522R1001?
Enquire Now
FAQs
This 4‑pole switch‑disconnecter is intended for high‑current isolation in industrial control panels, motor control centers, and distribution boards. It supports up to 200 A Ie across 380–690 V networks, enabling safe shutdown of multiple feeders and reducing arcing during maintenance.
Key specs include Ith 160 A (fully enclosed), Ie up to 200 A, Ui 1000 V, Uimp 12 kV, Icm 30 kA, and Pn values up to 144 kW at 690 V. It uses lug terminals and has a tightening torque of 15–22 N·m, with 4 poles and IEC 60947-3 compliance.
Yes. It adheres to IEC 60947-3 and carries a CE Declaration of Conformity. It is RoHS compliant (EU Directive 2011/65/EU and 2015/863), with additional environmental declarations and CMRT availability to support responsible procurement.
Yes. The 1SCA120522R1001 is compatible with the OT200‑250 family, enabling streamlined procurement and consistent interface standards across panels, switchgear, and cabinets in industrial installations.
The unit offers up to 20,000 mechanical operating cycles, providing predictable lifecycle costs and reduced maintenance frequency. Its robust construction, combined with RoHS/REACH compliance, helps minimize replacement parts and supports long‑term reliability in demanding environments.
