ABB 1SCA120529R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120529R1001
Quick Summary
ABB 1SCA120529R1001 Switch-Disconnectors are 3-pole, front-operated isolation devices designed for safe shutdown in industrial control panels. Engineers often struggle with reliable disconnection under varying loads and limited space, a challenge this design addresses with robust mechanicals and intuitive operation. The product aligns with IEC 60947-3 and carries a CE Declaration of Conformity, along with DNV GL certification for critical applications, plus RoHS and REACH compliance for regulated industries. This combination delivers long-term reliability, easy installation, and reduced total cost of ownership for machine builders and panel builders in automation environments.
Product Information
Extended Description

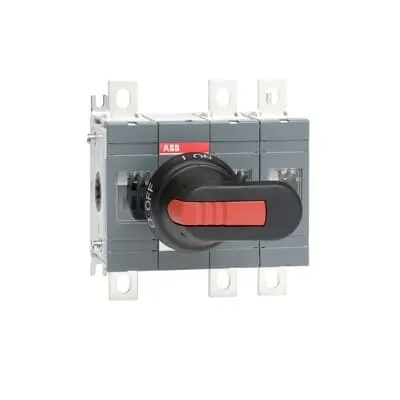

1SCA120529R1001 ABB: 3-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
cd4700c3-cc64-4d9b-8e03-12ab9905205b Finland (FI)
Simplified SCIP
eddbcc69-8541-4193-adb0-e65ec41261ab Germany (DE) | 56c27b95-5c54-41ac-9d8a-afbacec35fdc Sweden (SE) | c9ebde99-6141-4d62-8ca9-d423f23302f5 Germany (DE) | 90fc654a-8b46-4824-9bb9-d738dcd52829 Bulgaria (BG) | dcd43197-8cb2-4520-9a4a-9c9c2ab68e2a Norway (NO) | d1851749-b9b5-4531-963b-ccb05e925a5d Poland (PL) | 4faefdc1-06ab-4744-a6ca-b0186e4afca0 France (FR) | 507975fc-7746-4295-8f14-d8380d58c7c4 Germany (DE) | ce306f9f-0ad5-4974-9736-670e26ebfdb1 Hungary (HU) | 6785ab9d-f752-4d1d-9885-e1ad61a36dd1 Germany (DE) | 3e11d6d9-6205-468c-8064-1e1da8ec6e0f Belgium (BE) | c638e0f9-5710-496b-9627-81f6b4adc85c Denmark (DK) | b7fd84a4-2aa5-4630-998a-f3cdaabaf9e2 Poland (PL) | df67ea0e-58a1-4d6b-8991-1e6218ca8acf France (FR) | 3107a5dc-c45a-4eba-973c-57fd3cae5fa0 Sweden (SE) | 5f9555fe-2d10-4379-a447-c50bb05286b0 Italy (IT) | 29c959e4-dc5e-4303-b558-c0c3d6aefd38 Hungary (HU) | 1d160afd-c67e-44ac-826c-8a8c23220e75 Netherlands (NL) | 8ede37cd-53ca-40f3-9d00-d060df8fcfab Estonia (EE) | 314fa62d-1722-47bc-aafa-b1cec1550811 Belgium (BE) | d55c339a-f23b-4626-9a16-7cd988bc9a82 Spain (ES) | 3be513b9-46aa-41e2-860d-3af891a80aa5 Poland (PL) | e0c1eb6d-c817-4992-920d-5aaa8b3eb90d Greece (GR) | b402be91-e6bd-4dfd-9e5d-46055f02c5e8 Portugal (PT) | 8c4ddaf2-d16d-4458-9583-6d8fe307bb61 Germany (DE) | 8b8c68a5-10c5-4ecc-9fb6-78a687a86ba5 Croatia (HR) | b6a510fa-7d48-4dbf-a0d9-9772b31322be Czech Republic (CZ)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200-250E12, dwg-file | OT200-250E12, dxf-file | OT200-250E12.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.6 kg | 3.6 lb
Package Level 1 EAN
6417019519906
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601364
E-Number (Sweden)
3170910
Feature → Benefit → Application: The 3-pole base-mounted, front-operated design delivers reliable isolation in compact panel layouts, reducing wiring complexity and installation time for control panels in machine automation. This translates to faster commissioning and lower risk of mis-wiring during maintenance on factory floors.Feature → Benefit → Application: Rated 200 A Ie across multiple voltages (380–690 V) supports common motor feeders and control circuits, enabling a single device to cover a broad range of loads and reducing spare-part inventories for OEMs and service teams.Feature → Benefit → Application: Tightening torque range of 15–22 N·m ensures consistent clamping force on lug terminals, improving connection reliability in environments with vibration and thermal cycling—ideal for on-site panel upgrades and retrofit projects.Feature → Benefit → Application: Compliance with IEC 60947-3, RoHS, REACH, and EP declarations (EPD) provides regulatory peace of mind for industries such as food & beverage, chemical, and energy—facilitating audits and supplier qualification while meeting environmental standards.Feature → Benefit → Application: Handle and shaft are included with 3P operation, offering straightforward manual operation and secure locking for maintenance outages, reducing human-error risk during live-line work in production lines.Feature → Benefit → Application: Base mounting and accessible terminals simplify installation in control cabinets, enabling faster field service and easier replacement during expansions or modernization programs.
Get a Quick Quote for a ABB 1SCA120529R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120529R1001?
Enquire Now
FAQs
This 3P switch-disconnector is designed for base mounting in standard control panels. It features lug terminals for straightforward wiring, a 15–22 N·m tightening torque range for secure connections, and a front-operated mechanism that simplifies installation and maintenance without requiring rear access.
Key ratings include 200 A rated operational current (Ie) across 380–690 V, rated insulation voltage up to 1000 V, rated impulse withstand voltage of 12 kV, and short-circuit capability of up to 100 kA under specific fuse configurations. The device is IEC 60947-3 compliant and suitable for panel isolation in automation systems.
Yes. It complies with IEC 60947-3 and carries a CE Declaration of Conformity. It also offers RoHS/REACH compliance, an EP/EPD declaration, and, where applicable, DNV GL certification, making it suitable for regulated industries such as energy, chemical, and manufacturing.
Product net width is 150.5 mm, net height 150 mm, and net depth 82.5 mm. The net weight is 1.5 kg, with packaging indicating a compact footprint suitable for standard electrical enclosures and space-constrained panels.
Mechanical durability is rated at 20,000 operations, with a locking mechanism enabled for safe maintenance. The device’s design supports easy field replacement, reliable operation under vibration, and fewer maintenance outages in production environments, contributing to improved total cost of ownership.
