ABB 1SCA120558R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120558R1001
Quick Summary
ABB 1SCA120558R1001 Switch-Disconnectors provide reliable isolation for 6-pole motor control circuits in industrial panels. This front-operated, base-mounted device is designed to streamline installation while delivering robust safety in demanding environments. Key certifications include CE conformity, DNV GL certification, and A2L/EPD declarations, complemented by IP00 front protection and RoHS compliance to support sustainable, regulation‑driven design. Engineers often struggle with safe disconnection in compact switchgear—this solution balances panel space, connect‑ability, and maintenance access. By aligning with IEC 60947-3 and compatible lug terminals, it offers a practical path to higher uptime and consistent control, supporting scalable automation projects and future-proof equipment strategies.
Product Information
Extended Description

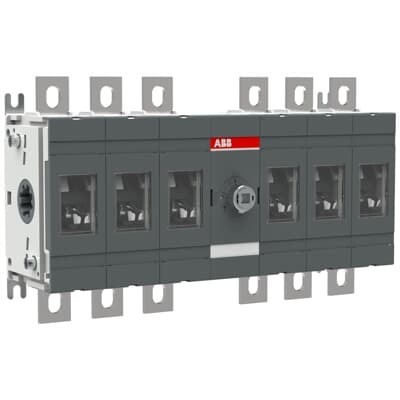

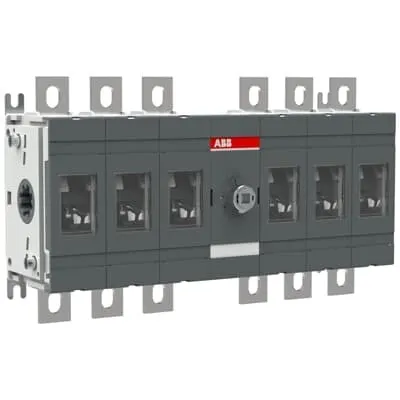

1SCA120558R1001 ABB: 6-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200E33.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
250.5 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
260 mm | 10.2 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
190 mm | 7.5 in
Package Level 1 Gross Weight
2.7 kg | 6 lb
Package Level 1 EAN
6417019520278
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
6P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current DC-21B (Ie)
(1000 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 33 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 6-pole, front-operated base-mounted design. Business Impact: Delivers reliable isolation for multi‑line circuits, reducing switchgear downtime and simplifying panel layout. Application: Ideal for motor control centers and distribution boards in industrial automation. Feature: 200 A Ith rating with 30 kA Icm and 8 kA Icw. Business Impact: Supports high fault currents with margin for long service life, lowering replacement and warranty costs. Application: Suitable for large motors and high‑inrush loads in manufacturing lines. Feature: Ui 1000 V and Lug terminals with torque specification of 15–22 N·m. Business Impact: Enables safe, secure terminations and compliant insulation, reducing field rework. Application: Base-mounted installations where robust wiring is required. Feature: IEC 60947-3 compliance, CE DoC, and DNV GL certification. Business Impact: Ensures regulatory alignment and traceability for audits and customer validation. Application: OEM panels and compliant plant expansions. Feature: Front IP00 protection and environmental data (Pollution Degree 3, PEI OT160-250, EPD). Business Impact: Defines installation expectations and supports lifecycle assessments. Application: Indoor switchgear in controlled environments. Feature: 6P architecture with Top In – Bottom Out terminals. Business Impact: Simplifies wiring schematics and reduces panel depth requirements. Application: New builds and upgrades where space is at a premium. Feature: Included terminal bolt kit; handle and shaft not included. Business Impact: Reduces procurement complexity and installation steps while allowing customized handle options. Application: Retrofit projects where operator ergonomics are addressed separately.
Get a Quick Quote for a ABB 1SCA120558R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120558R1001?
Enquire Now
FAQs
This device is designed for base mounting with lug terminals and Top In – Bottom Out configuration, simplifying wiring and allowing straightforward integration into existing switchgear and motor control panels.
Key ratings include Ith 200 A, Ui 1000 V, Icm 30 kA, and Icw 8 kA. It is a 6P front-operated disconnector suitable for 380–415 V, 500 V, and 690 V systems, with IEC 60947-3 compliance.
Yes. It carries CE Declarations of Conformity and is supported by DNV GL certification. Additional compliance includes RoHS, Reach, and A2L declarations for environmental and refrigerant considerations.
Important points include applying 15–22 N·m tightening torque on lug terminals, using the included terminal bolt kit, and noting that the handle and shaft are not included. Front operation and base mounting enable safe, ergonomic access.
Ideal for motor control centers, distribution panels, and machine control cabinets requiring reliable isolation, high current capacity, and regulatory compliance, all within compact, base-mounted enclosures.
