ABB 1SCA120560R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120560R1001
Quick Summary
ABB 1SCA120560R1001 Switch-Disconnectors provide safe front-operated isolation for medium-voltage mains in control panels. Maintenance teams often face downtime and safety risk during disconnection; this device minimizes both with reliable mechanical interlock and robust construction. Certified to IEC 60947-3, supported by CE Declaration of Conformity, and backed by a DNV GL certification for OT variants, it delivers traceable compliance and performance. Coupled with a 6P base-mounted design and lug terminals, it supports scalable protection in electrical protection and circuit control for industrial automation.
Product Information
Extended Description

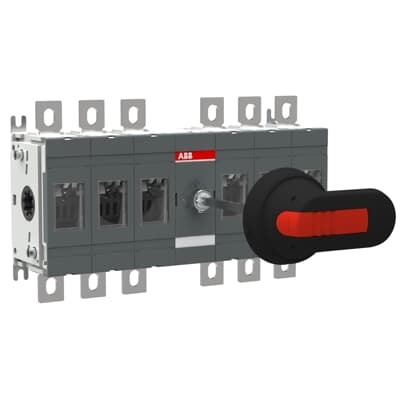

1SCA120560R1001 ABB: 6-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ad3c64d1-1620-4d58-be2f-c2900f69f71e Finland (FI)
Simplified SCIP
eb543c40-21df-4e72-bd93-508e67a1c91b Germany (DE) | 0f90193b-c071-4ddc-bf52-ca9c8a7039e0 Portugal (PT) | facd2294-f6fe-4826-aff0-059f6d309b8e Greece (GR) | 43d18fab-b2d3-4907-8e6a-62834ffd41ac Czech Republic (CZ) | 969d792a-7d88-46e2-ba83-d6c5e4ce8991 Croatia (HR) | b8cc7520-a365-4115-a09d-427d48956be9 Germany (DE) | 40f44d23-da70-4365-87a5-a7e253d0266d Germany (DE) | c413cc88-72f5-4a69-afe0-d5e283fd2df5 France (FR) | 6827c2b0-9d40-4add-a314-6fb3770dad98 Germany (DE) | d9ca3a66-4379-4d47-a073-516022a2a419 Poland (PL) | 573c6e00-f4bd-4547-a338-574e3d3da556 Denmark (DK) | 436430a8-4858-4128-b080-16021da84cf1 Germany (DE) | 270e8b78-acdb-4d34-a5aa-44a86c263612 Estonia (EE) | 334aa450-8f3e-4a70-81e9-3f4f64a05ee4 Belgium (BE) | 534ad0e7-4d51-454c-87e5-6f6cea89b10e Sweden (SE) | 6a16c9c4-0b27-4bb3-b2a7-805c854edb56 Poland (PL) | ed857393-0bb2-4afe-bb05-be0ddf89da00 France (FR) | 5fb7262f-b3d4-4a87-b7c8-d0694115d72b Hungary (HU) | f0cc0c3d-d174-4e20-b95b-708a9041baaf Italy (IT) | cc8f4d9b-c49e-4f9e-a957-fc037e4944a6 Netherlands (NL) | a798c431-620a-4301-9a98-bc4642f6c76d Hungary (HU) | 5efe6503-9488-4e0e-9a16-7c6b71b165c1 Poland (PL) | 754b3f1a-f4e4-45b0-b6a1-d1bc7da56151 Spain (ES) | 0f10ef8a-01fa-4676-9730-e029fdc9717f Sweden (SE) | 8f088e6e-d21a-463e-80fa-5b0807d6259a Bulgaria (BG) | 4be623d4-5a9c-4594-b1ee-68951fdc3418 Belgium (BE) | cae073ef-9797-4acf-9b12-1bca517467f8 Norway (NO)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200E33.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
255.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.63 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
260 mm
Package Level 1 Depth / Length
190 mm
Package Level 1 Height
290 mm
Package Level 1 Gross Weight
2.83 kg
Package Level 1 EAN
6417019520292
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
6P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current DC-21B (Ie)
(1000 V) 160 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism Between the Poles | 33 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
6-pole, front-operated switch-disconnector supports simultaneous isolation of multiple conductors, improving maintenance safety and reducing switching errors. Business impact: streamlined maintenance workflows and lower downtime in switchgear applications. Application: ideal for electrical protection and circuit control in motor control centers and panel assemblies. Base mounting and lug terminals simplify wiring, save installation time, and provide secure, vibration-resistant connections. Business impact: faster installation, reduced field recalibration, and improved long-term reliability. Application: suitable for base-mounted installations in industrial environments with demanding electrical loads. High current and voltage ratings (up to 200 A and 1000 V) deliver robust performance for industrial mains switching. Business impact: minimizes equipment stress during switching, reduces replacement cycles, and supports compliant operation under IEC 60947-3. Application: heavy machinery, conveyors, and processing lines. Mechanical durability rated at 20000 cycles with a lockable, front-operated mechanism enhances safety and uptime. Business impact: durable lifecycle with predictable maintenance needs. Application: panel builders and OEMs seeking consistent performance across multiple installations. Environmental and compliance footprint is supported by CMRT, REACH, RoHS, SCIP declarations, and DNV GL certification. Business impact: simplifies procurement, accelerates supplier audits, and ensures regulatory alignment. Application: industries with strict sustainability and supply-chain requirements. The device features a black IP65 handle and shaft option for reliability in damp or dusty environments while maintaining safe manual operation. Business impact: safer field servicing and reduced risk of incidental engagement. Application: assembly lines, packaging, and process industries requiring rugged manual operation. 6P configuration and 33 inter-pole mechanism support precise interlock behavior and predictable switching performance. Application: high-precision control panels and protection schemes demanding coordinated action.
Get a Quick Quote for a ABB 1SCA120560R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120560R1001?
Enquire Now
FAQs
The device uses base mounting with lug terminals, simplifying wiring and secure attachment to panels. Installation benefits include straightforward wiring, reduced cabinet space requirements, and robust mechanical stability. For best results, follow the provided disassembling instructions and torque guidelines (IEC 60947-1 / 60947-3) to ensure a safe, licensed installation with proper interlock engagement.
Yes. It is rated for main circuits up to 1000 V and supports AC-21A operation at 380–415 V, 500 V, and 690 V with a 200 A rating. DC-21B ratings include 160 A at 1000 V. With a 12 kV impulse withstand and 1000 V insulation, it is designed for robust medium-voltage switching in industrial environments.
It carries a CE Declaration of Conformity and IEC 60947-3 compliance, with a DNV GL certificate for OT series variants. Additionally, environmental and material declarations include CMRT, REACH, RoHS, SCIP data, and A2L refrigerant declarations, ensuring regulatory transparency and supply-chain credibility.
A 6P configuration enables simultaneous isolation of multiple poles, reducing switching error risk and speeding maintenance. Front operation provides quick access, while a lockable mechanism enhances safety during servicing. The 6P format also aligns with standard switchgear layouts, simplifying integration with existing protection schemes.
ABB provides disassembly instructions for OT160-250 variants and access to data sheets, manuals, and mechanical drawings (OT200E33.igs). This documentation supports compliant maintenance, safe disassembly when decommissioning, and informed procurement decisions for OEMs and service providers.
