ABB 1SCA120563R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120563R1001
Quick Summary
Switch-Disconnectors ABB 1SCA120563R1001 enable safe isolation of three-pole power circuits in industrial machinery. For maintenance crews, reliable disconnection points reduce downtime, mis-wiring, and risk during servicing. The device complies with IEC 60947-3 and carries a CE Declaration of Conformity, while environmental data supports RoHS compliance and EPD/CMRT documentation. With base mounting, lug terminals, and a side-operated mechanism, installation is straightforward in panel or cabinet layouts, and wiring remains neat and accessible. The product delivers robust mechanical durability and predictable performance across voltage ranges up to 1000 V, offering a practical balance of safety, reliability, and cost efficiency for automation projects. Suitable for panel builders and OEMs seeking predictable lifecycle costs.
Product Information
Extended Description

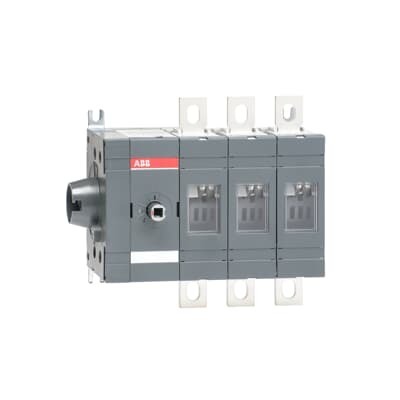

1SCA120563R1001 ABB: 3-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES03, dwg-file | OT200-250ES03, dxf-file | OT200ES03.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
181.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82 mm
Product Net Weight
1.5 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
1.8 kg | 4.1 lb
Package Level 1 EAN
6417019520322
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601599
Feature: Three-pole, side-operated, base-mounted design. Business Impact: Provides reliable isolation with precise contact gaps, simplifies installation, and enhances operator safety during servicing. Application: Ideal for control panels and machine circuits in process automation and packaging lines.Feature: Rated insulation and operating currents. Business Impact: Supports 1000 V insulation with up to 200 A operating current, enabling safe integration into regional power networks. Application: Suitable for medium-voltage control circuits and motor control panels in manufacturing environments.Feature: Short-circuit and fault tolerance. Business Impact: Icm up to 30 kA at 690 V and Icw of 8 kA for 1 s reduce fault consequences and equipment downtime. Application: Critical in high-energy lines and safety-critical installations in steel, chemical, and food and beverage sectors.Feature: Thermal and mechanical performance. Business Impact: 3.2 W power loss per pole minimizes cabinet heat, extending component life and reducing cooling costs. Application: Valuable in compact enclosures and energy-conscious plant layouts.Feature: Durability and installation hardware. Business Impact: 20,000 mechanical cycles and torque guidance (15–22 N·m) support long service life with predictable maintenance. Application: Fits routine assembly lines, OEM dashboards, and retrofit projects with lug terminals for robust wiring.
Get a Quick Quote for a ABB 1SCA120563R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120563R1001?
Enquire Now
FAQs
This device features base mounting and lug terminals suitable for three-pole applications. It is designed for straightforward panel integration with a side-operated mechanism (Left Side) and requires a tightening torque of 15–22 N·m on terminal connections. Wiring remains clean with standard lug terminals, and a terminal bolt kit is included to ensure quick, reliable installation in control panels and equipment enclosures.
It provides rated insulation voltage up to 1000 V and operates with up to 200 A (AC-21A/AC-22A/AC-23A depending on voltage). Short-circuit capability reaches up to 30 kA Icm at 690 V, with 8 kA for 1 s Icw. It withstands a 12 kV impulse and delivers 3.2 W per pole in loss, supporting reliable performance in demanding automation environments.
Ideal for control cabinets, motor control centers, and process automation lines in manufacturing, food and beverage, chemical, and packaging sectors. The three-pole, base-mounted design with lug terminals suits compact frames and OEM integrations, while the side-operated mechanism facilitates easy operation during maintenance and testing without full-panel removal.
The device meets IEC 60947-3 and carries a CE Declaration of Conformity. It is accompanied by RoHS documentation and environmental declarations (EPD/CMRT). Additional certifications include a DNV GL reference for related OT variants and documentation for REACH compliance, ensuring regulatory alignment for global manufacturing and installation projects.
With a mechanical durability of 20,000 cycles and a low per-pole power loss of 3.2 W, you gain longer service intervals and reduced cooling requirements. The lug-terminal configuration simplifies wiring, while the 1-piece minimum order and Finland-origin manufacture support consistent after-sales service, spare parts availability, and predictable total cost of ownership for OEMs and end users.
