ABB 1SCA120564R1001 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA120564R1001
Quick Summary
ABB 1SCA120564R1001 Switch-Disconnectors deliver reliable isolation for four-pole main circuits in industrial control panels. Engineers often struggle with space constraints, safe disconnection, and future maintenance within compact enclosures. It carries CE Declaration of Conformity, IEC 60947-3 compliance, and Front IP00 protection, with RoHS and CMRT declarations to support global sourcing. Designed for base mounting in demanding automation environments, it supports 200 A continuous current with 12 kV impulse withstand and low power loss per pole. For panel builders and OEMs, this model enables safer isolation, easy integration, and lower lifecycle costs.
Product Information
Extended Description

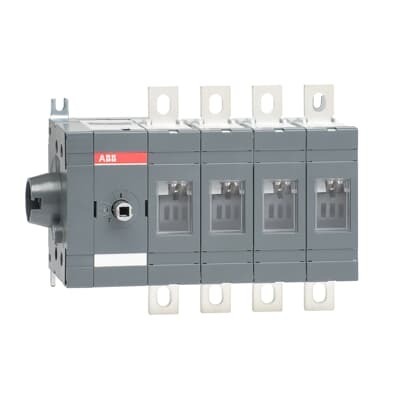

1SCA120564R1001 ABB: 4-pole, side operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES04, dwg-file | OT200-250ES04, dxf-file | OT200ES04.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
216.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82 mm
Product Net Weight
2.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
2.2 kg | 4.9 lb
Package Level 1 EAN
6417019520339
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 3.2 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 48 kW | (400 ... 415 V) 88 kW | (500 V) 112 kW | (690 V) 144 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3601473
Feature: The unit is a 4P, side-operated, base-mounted switch-disconnector. Benefit: Ensures simultaneous actuation of all poles for safe, consistent isolation, reducing the risk of arc flash and mis-connection in high-energy feeds. Application: Main feeder sections in control panels and motor control centers.
Get a Quick Quote for a ABB 1SCA120564R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA120564R1001?
Enquire Now
FAQs
Install on a prepared base with the correct mounting pattern and ensure the terminal lug connections are tightened to 15–22 N·m. The unit ships with a terminal bolt kit and the handle/shaft are not included, so verify compatibility with your enclosure and ensure the correct side-operated mechanism is used for proper 4P synchronization.
Key ratings include Ith of 200 A, Ie of 200 A across 380–415 V and 690 V variants, Ui of 1000 V, Uimp of 12 kV, Icm up to 30 kA at 690 V, and Icw for short-time withstand of 8 kA for 1 s. These specs support safe isolation and protection for demanding industrial feeders.
Yes. With Ui 1000 V, Uimp 12 kV, and a four-pole, 4P configuration, it accommodates motor feeder applications while ensuring safe, simultaneous disconnection. The device’s IEC 60947-3 compliance and documented IP00 protection further support installation in appropriate control panels.
The product carries CE declarations of conformity, IEC 60947-3 compliance, and RoHS status. Additional declarations include CMRT for conflict minerals and environmental declarations (EPD/PEP). UL/CSA and ATEX certifications are not listed for this model.
Mechanical durability of 20,000 cycles reduces replacement frequency, while base mounting and lug terminals simplify installation and maintenance. The 3.2 W power loss per pole supports energy efficiency, contributing to lower operating costs over the device’s life in control panels.
